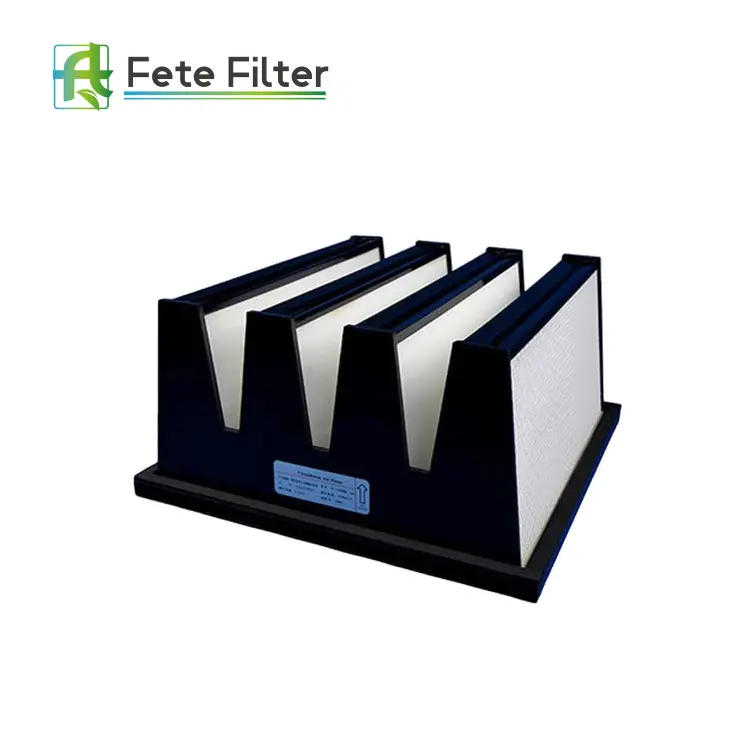

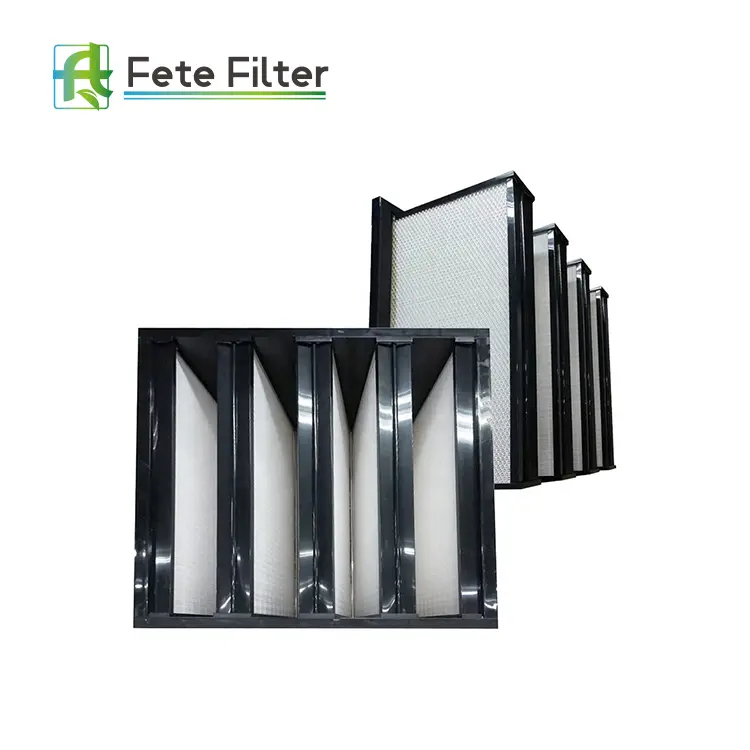

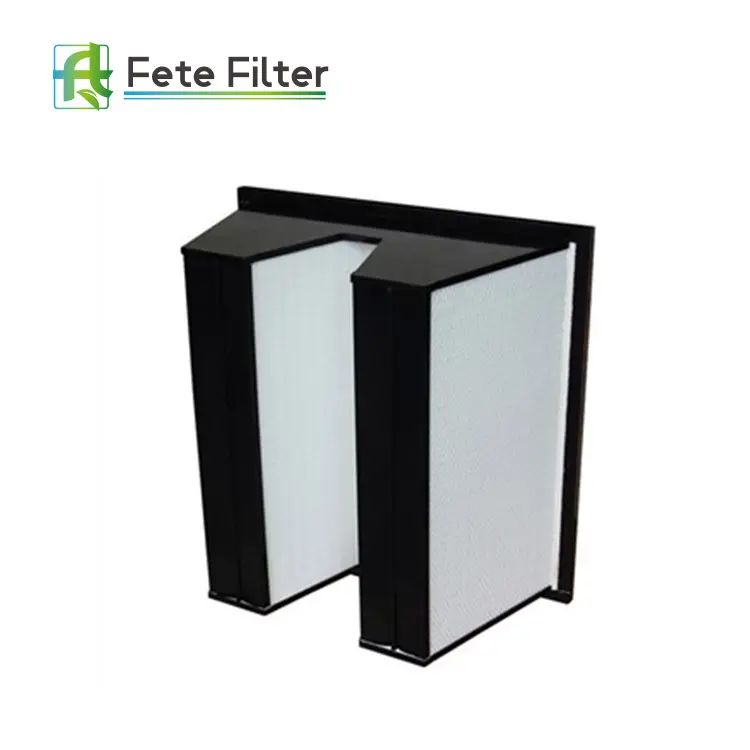

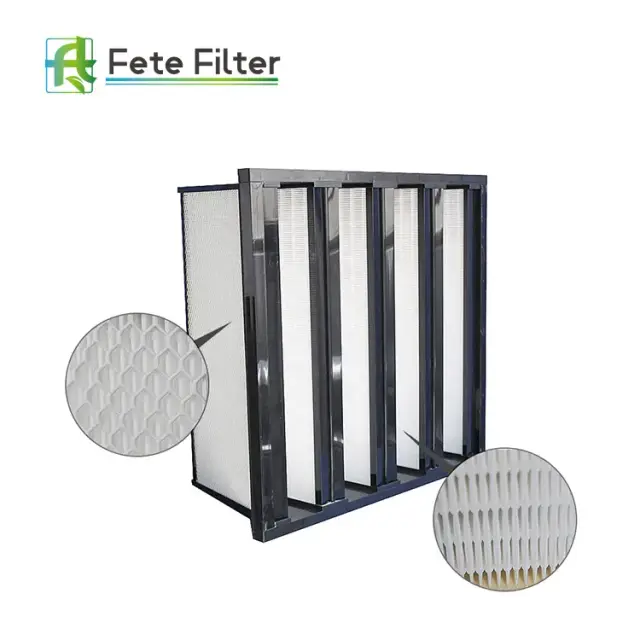

V-Bank Filter with Plastic Frame
Efficiency: F6/F7/F8/F9/H10/H11/H12
Media: Micro fiber glass
Frame: Plastic
Max. Temperature: ≤70℃
Max Humidity: 100%
Sealant: Polyurethane
Recommended final Pressure drop: < 600Pa
General Description
V-bank air filter can be used as final air filter in cleaning filtration system. It is applicable to air separation, purification of dust, In order to ensure cleanliness requirements system, extending use life.
Feature
1. The filtration material is the fiberglass or the polypropylene.
2. High efficiency, large air flow.
3. Low operation cost, convenient for installation.
4. Large dust capacity, no partition design.
Applications
V-bank air filter for the need for high cleanliness of the air conditioning system. V-bank air filtercan be installed in the central air conditioner to protect the end of the clean room ultra-efficient filter, or installed in the pipeline for a special cleaning requirements of the process of air supply system.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| Model | Actual Size HxWxD(mm) | Air Flow (m³/h) | Initial Resistance （pa） | Efficiency En779 |
| VBP-001 | 287*592*292 | 1000.0 | 250.0 | H11/H12 |
| VBP-002 | 592*592*292 | 1500.0 | 250.0 | H11/H12 |
| VBP-003 | 610*610*292 | 3300.0 | 250.0 | H11/H12 |
| VBP-004 | 287*592*292 | 1800.0 | 120.0 | F6/F7/F8/F9 |
| VBP-005 | 592*492*292 | 3000.0 | 120.0 | F6/F7/F8/F9 |
| VBP-006 | 592*592*292 | 3600.0 | 120.0 | F6/F7/F8/F9 |
| Brand Name: | Fete Filter | Product Category: | V-Bank Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
