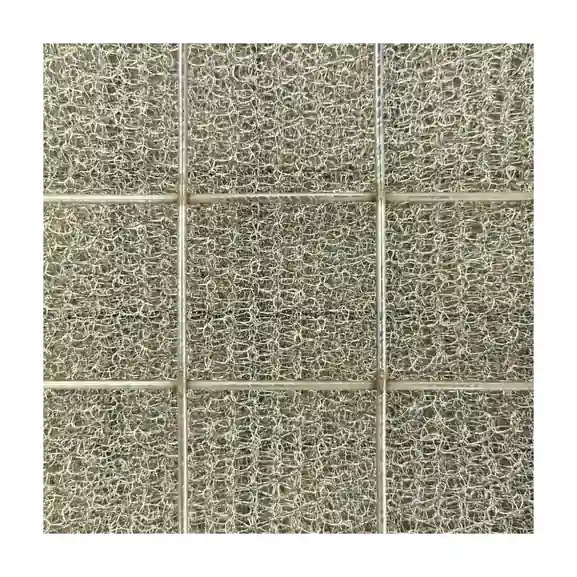

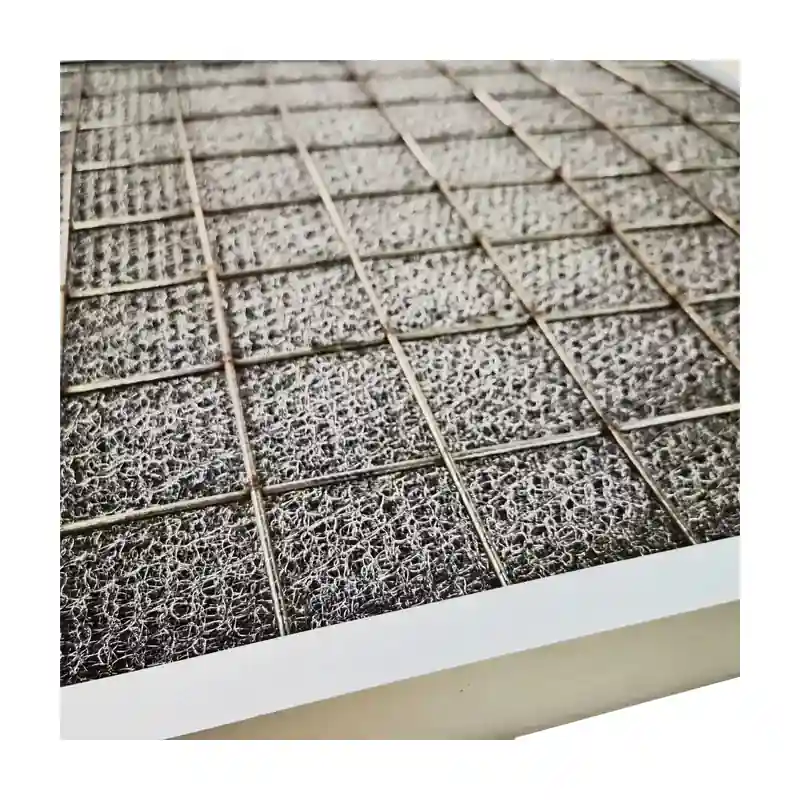

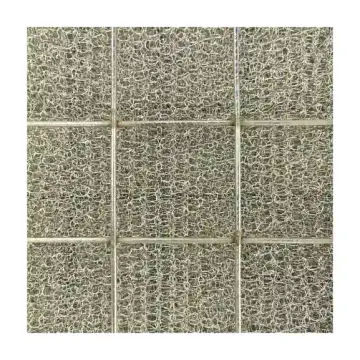

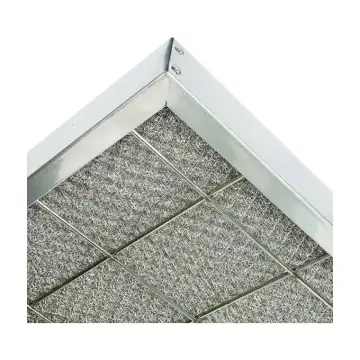

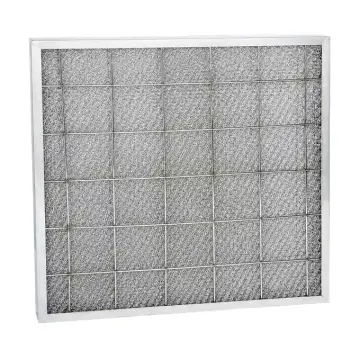

Aluminum Wave Stainless Steel Wave Metal Mesh Air Filter
Aluminum Wave / Stainless Steel Wave Metal Mesh Air Filter
Suitable for acid-based and high humidity-resistance environment.
Item NO. : FT514
Optional Thickness : 10~50 mm
Frame : Aluminum / GI / SUS
Media : Aluminum wave / Stainless steel wave
Max Temperature : 300℃
Max Humidity : 100%
Face guard : Square mesh / Grid mesh / SUS mesh
Product Features
Washable
Provides large airflow with low initial resistance
Thoroughly tested in the factory before shipment
Long lifespan
Combines media with varying pleat heights to minimize media gaps, ensuring excellent efficiency
Suitable for use in acid-based environments and high humidity conditions.
Applications
Ideal for central air conditioning systems
Effective for range hoods
Suitable for filtration and special ventilation in acidic and alkaline environments
High moisture resistance filtration.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT514-001 | 287*287*10 | 800.0 | 0.17 | 2.54 |
| FT514-002 | 592*287*10 | 1600.0 | 0.34 | 2.54 |
| FT514-003 | 592*592*10 | 3200.0 | 0.7 | 2.54 |
| FT514-006 | 592*592*15 | 3200.0 | 1.05 | 2.54 |
| FT514-007 | 287*287*21 | 800.0 | 0.41 | 2.54 |
| FT514-008 | 592*287*21 | 1600.0 | 0.82 | 2.54 |
| FT514-010 | 592*592*21 | 3200.0 | 1.75 | 2.54 |
| FT514-013 | 592*490*46 | 2650.0 | 2.61 | 2.54 |
| FT514-015 | 592*287*50 | 1600.0 | 1.87 | 2.54 |
| FT514-016 | 592*592*50 | 3200.0 | 3.86 | 2.54 |
| Brand Name: | Fete Filter | Product Category: | Panel Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Aluminum Wave Stainless Steel Wave Metal Mesh Air Filter project with the right specs
Fete Filter supplies Aluminum Wave Stainless Steel Wave Metal Mesh Air Filter for cleanroom, HVAC and industrial air filtration projects. Browse...
Review Panel Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Aluminum Wave Stainless Steel Wave Metal Mesh Air Filter
Review Panel Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Compare nearby Panel Filter models
