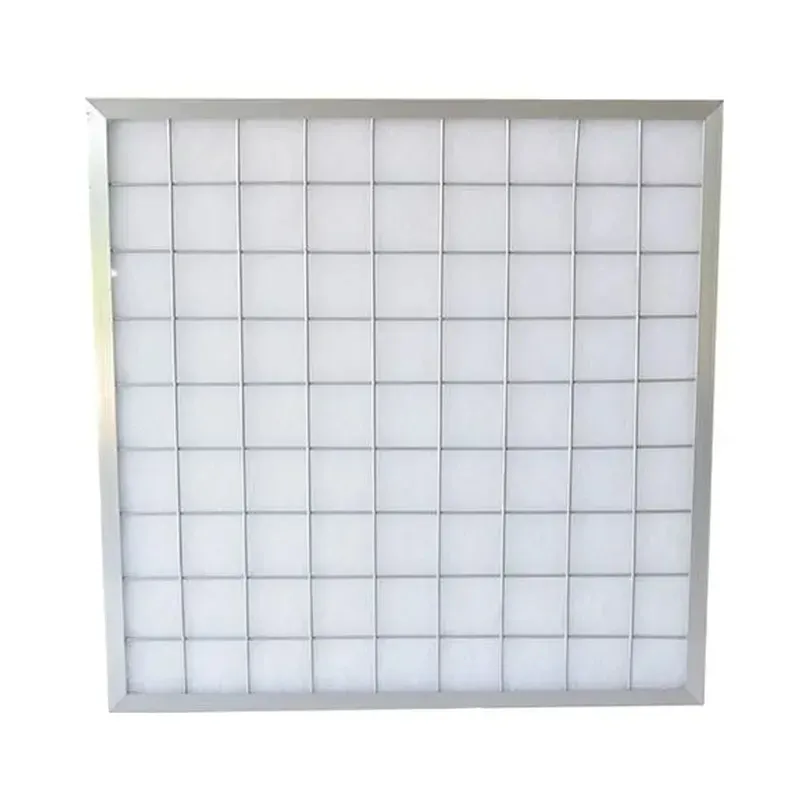

Washable G1 G2 G3 G4 Synthetic Fiber Panel Filter
Item NO. : FT61
Optional Thickness : 10 / 17 / 21 / 25 mm
Frame : Aluminum / GI
Media : Synthetic fiber
Max Temperature : 50℃
Max Humidity : 100%
Face guard : Square mesh / Grid mesh / Sprayed metal net
General Description
Washable and replaceable filter media designed for high strength, large air volume, low resistance, and high dust capacity.
Product Features
Washable
Large dust retention capacity
100% factory testing
Large air volume with low initial resistance
Simple structure and easy to replace filter media
Strong intensity
Applications
Used in restricted environments and large air volume settings. Suitable for use as a pre-filter in air conditioning systems and in multi-stage filtration systems.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| FT61-001 | 594*289*10 | 1200.0 | 0.19 | 1.5 | G1-G2 |
| FT61-002 | 594*492*10 | 2100.0 | 0.31 | 1.5 | G1-G2 |
| FT61-003 | 594*594*10 | 2500.0 | 0.37 | 1.5 | G1-G2 |
| FT61-004 | 594*289*15 | 1200.0 | 0.19 | 2.0 | G1-G2 |
| FT61-005 | 594*492*15 | 2100.0 | 0.31 | 2.0 | G1-G2 |
| FT61-006 | 594*594*15 | 2500.0 | 0.37 | 2.0 | G1-G2 |
| FT61-007 | 594*289*21 | 1550.0 | 0.19 | 2.54 | G1-G2 |
| FT61-008 | 594*492*21 | 2650.0 | 0.31 | 2.54 | G1-G2 |
| FT61-009 | 594*594*21 | 3250.0 | 0.37 | 2.54 | G1-G2 |
| Brand Name: | Fete Filter | Product Category: | Panel Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Washable G1 G2 G3 G4 Synthetic Fiber Panel Filter project with the right specs
Fete Filter supplies Washable G1 G2 G3 G4 Synthetic Fiber Panel Filter for cleanroom, HVAC and industrial air filtration projects. Browse Panel...
Review Panel Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Washable G1 G2 G3 G4 Synthetic Fiber Panel Filter
Review Panel Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
