G3 G4 High Temperature Resistant Glass Fiber Filter Mat

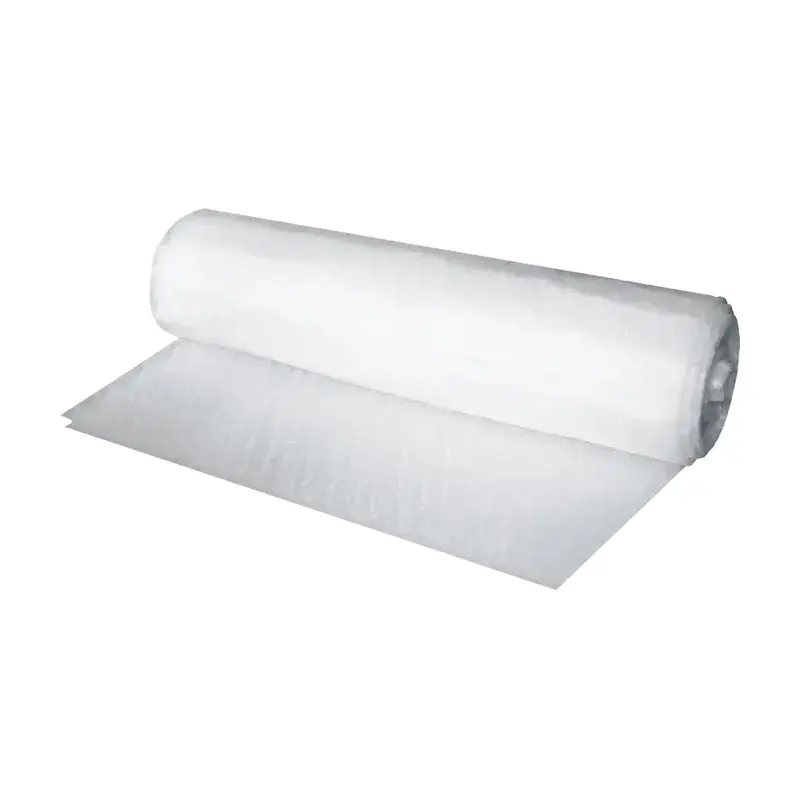

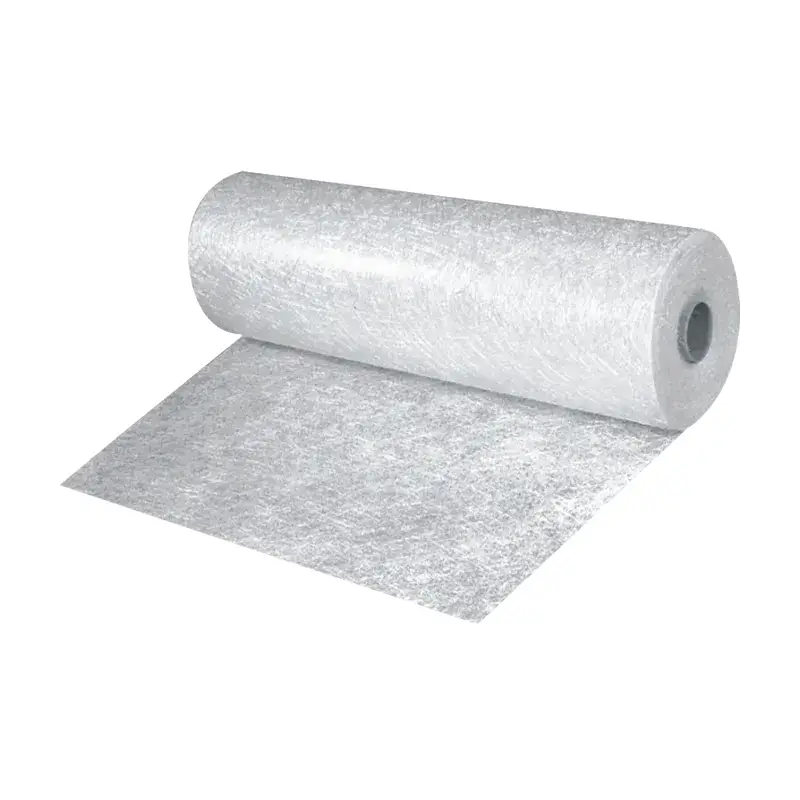

G3 / G4 High temperature Resistant Glass Fiber Filter Mat
Product Features
The high-temperature resistant glass fiber filter mat is constructed from long fiberglass using a uniform non-woven method. The leeward side is specially treated to prevent fiberglass shedding.
Stable performance is maintained at 250°C, with no contraction, embrittlement, softening, or melting occurring in a short time at 300°C. Softening begins at 500°C.
The filter mat exhibits excellent flame retardance (non-flammable), meeting national grade A flame retardance standards. It does not drop, release polycarbonate, contract, or deform when exposed to fire.
Additionally, it offers excellent chemical resistance, high moisture resistance, low moisture absorption, and a long working life.
Applications
The high-temperature resistant glass fiber filter mat is widely used in ovens and other high-temperature environments. It serves not only for dust extraction but also to prevent chemical erosion and protect against toxic gases.
Material
| Model | Size |
|---|---|
| Targeting particles | ＞5μm particle dust and suspended solids |
| Flame resistance | Non-flammable, self-extinguishing, comply to DIN53438-F1, UL900-CLASS2 |
| Max temperature | 350°C |
| Max Humidty | 100% |
Type
| Model | Size | Air flow | Initial resistance | Rated power | Temperature | Column 7 | Column 8 | Column 9 |
|---|---|---|---|---|---|---|---|---|
| FS-150 | 20.0 | 1.5 | 80.0 | 20.0 | 1850.0 | G3 | 1*20m1.2*20m | 250.0 |
| FS-300 | 30.0 | 1.5 | 85.0 | 35.0 | 2100.0 | G3 | 300 | |
| FS-400 | 50.0 | 1.5 | 90.0 | 50.0 | 3200.0 | G4 | 350 |
| Brand Name: | Fete Filter | Product Category: | Filter Material |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
