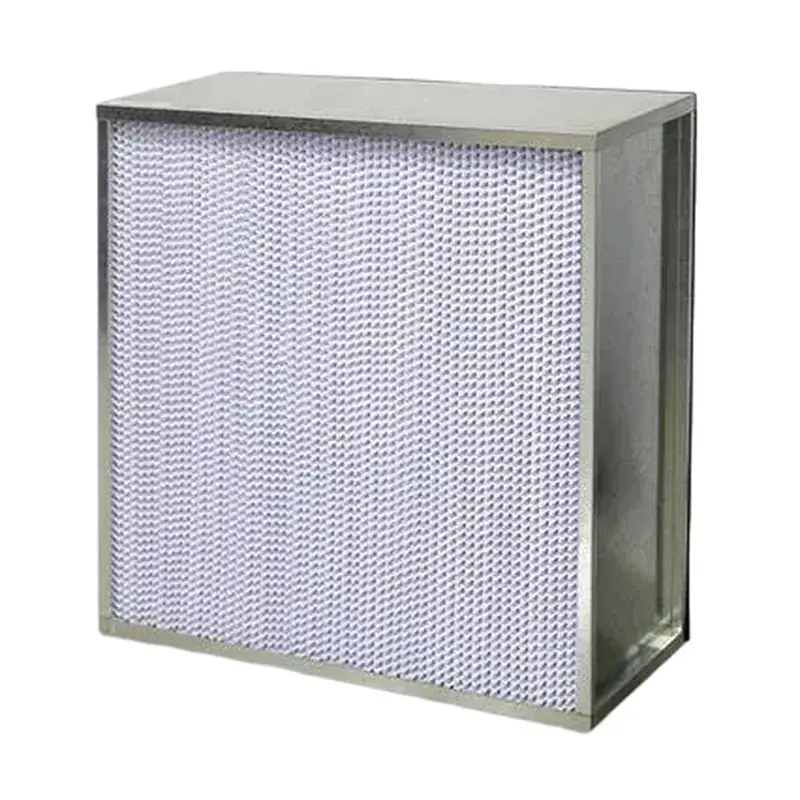

Deep Pleat High Capacity Separator Filter Box Type Hepa Filter
Item NO. : FT56-A
Optional Thickness : 80 ~ 292mm
Separator : 120g/m² offset paper / 0.035mm aluminum foil
Gasket : Pu endless gasket / EVA / EPDM
Sealant : Pu two-component polyurethane glue
Frame : Aluminum / GI / SUS / MDF
Media : Micro glass fiber
Efficiency : H13 / H14
Max Temperature : 70℃ ~ 150℃
Max Humidity : 100%
General Description
High Capacity Separator Filters are designed to handle a substantial volume of particles and contaminants, outperforming regular Separator Filters. They can capture and retain a higher quantity of particles, allowing for longer service intervals and reduced maintenance requirements.
Product Features
Low resistance
Fully tested in the factory before shipment
Exceptional efficiency
Small pleat distance to meet large airflow demands
Applications
These filters are suitable for environments requiring high levels of cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT56-A-001 | 305*610*150 | 750.0 | 6.32 | 1.12 |
| FT56-A-002 | 610*610*150 | 1500.0 | 13.33 | 1.12 |
| FT56-A-003 | 610*305*292 | 1600.0 | 13.87 | 2.39 |
| FT56-A-004 | 610*610*292 | 3400.0 | 29.25 | 2.54 |
| FT56-A-017 | 305*610*292 | 1600.0 | 13.87 | 2.39 |
| FT56-A-018 | 610*610*292 | 3400.0 | 29.25 | 2.54 |
| FT56-A-019 | 610*915*292 | 5000.0 | 43.87 | 2.49 |
| FT56-A-020 | 610*1220*292 | 6800.0 | 58.49 | 2.54 |
| Brand Name: | Fete Filter | Product Category: | Separator Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Deep Pleat High Capacity Separator Filter Box Type Hepa Filter project with the right specs
Fete Filter supplies Deep Pleat High Capacity Separator Filter Box Type Hepa Filter for cleanroom, HVAC and industrial air filtration projects....
Review Separator Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Deep Pleat High Capacity Separator Filter Box Type Hepa Filter
Review Separator Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
