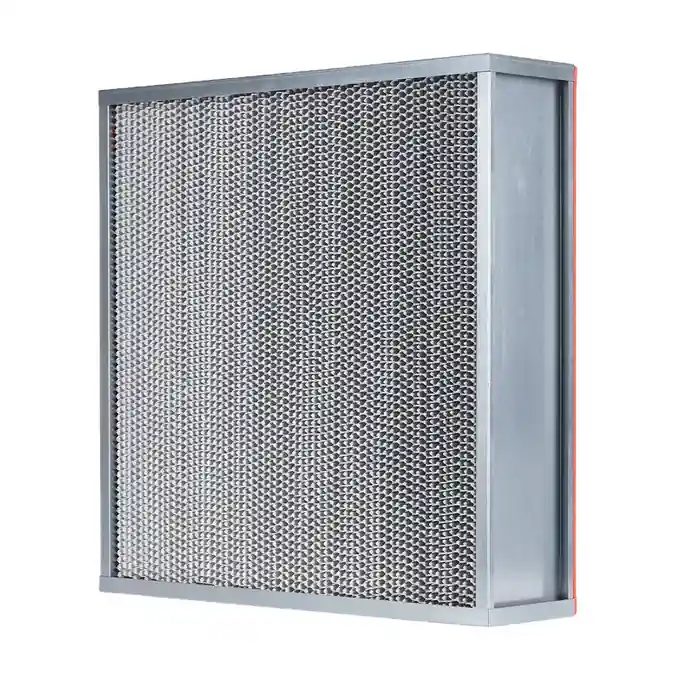

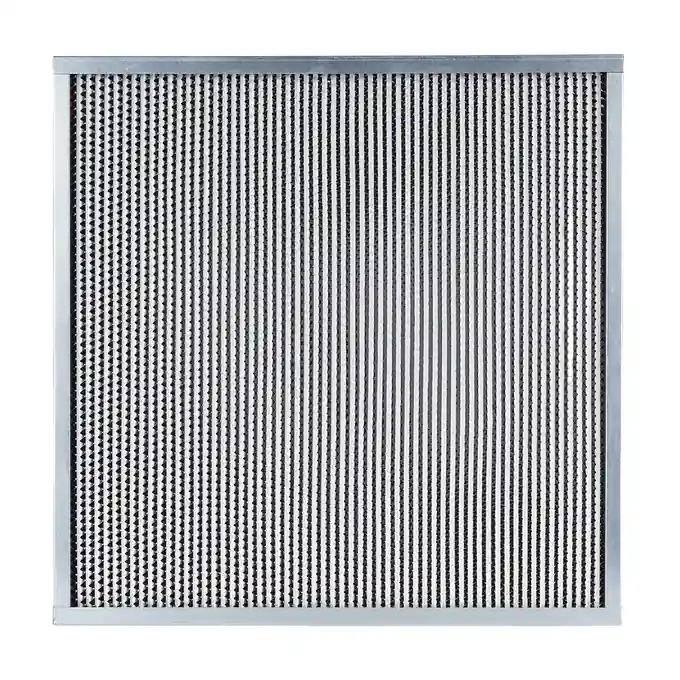

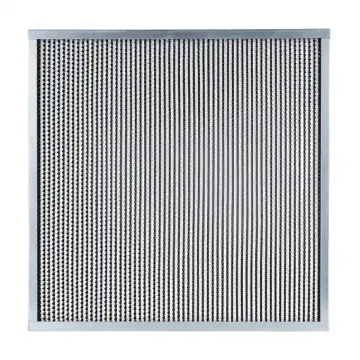

Medium Sub-HEPA Micro Glass Fiber Separator Filter
Item NO. : FT56-B
Optional Thickness : 80 96 120 150 220 292 305
Separator : Offset paper / Aluminum foil
Gasket : PU foam gasket / EVA / EPDM
Sealant : Two-component polyurethane glue
Frame : Extruded aluminum/ Folding aluminum / Galvanized steel/Stainless steel/ MDF
Media : Micro glass fiber
Efficiency : F5, F6, F7, F8, F9, F10
Max Temperature : Offset paper:50℃ Aluminum foil:100℃
Max Humidity : 100%
General Description
The HEPA Filter with Separator utilizes high-density paper made from fine glass fiber. This material is folded and separated with aluminum foil, using a specialized pleating machine. A particular sealing agent is applied to all four sides, ensuring airtightness around the filter. Quality tests are conducted on all filters before they leave the factory.
Product Features
Continuous gasket to provide reliable sealing performance
Stable airflow with a large dust retention capacity
Fully tested in the factory before shipment
Wedge-shaped pleats to protect the media from wear
Large filter surface to ensure high airflow and efficiency
Moisture-resistant for enhanced durability
Applications
This filter is commonly used in central air conditioning and integrated air supply systems. It serves as the primary filter in an air-conditioning system to protect HEPA filters and the overall setup. In situations with lower air purification cleanliness requirements, air filtered through medium filters can be directed straight to the work zone.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT56-B-001 | 320*320*150 | 400.0 | 2.59 | 1.09 |
| FT56-B-002 | 484*484*150 | 950.0 | 6.0 | 1.13 |
| FT56-B-003 | 630*630*150 | 1600.0 | 9.59 | 1.12 |
| FT56-B-004 | 610*1220*150 | 3000.0 | 19.17 | 1.12 |
| FT56-B-005 | 320*320*220 | 650.0 | 4.08 | 1.76 |
| FT56-B-006 | 484*484*220 | 1500.0 | 9.46 | 1.78 |
| FT56-B-007 | 630*630*220 | 2500.0 | 16.12 | 1.75 |
| FT56-B-008 | 287*592*292 | 1500.0 | 9.59 | 2.45 |
| FT56-B-009 | 592*592*292 | 3000.0 | 20.01 | 2.38 |
| FT56-B-010 | 305*610*292 | 1600.0 | 10.52 | 2.39 |
| FT56-B-011 | 610*610*292 | 3200.0 | 21.25 | 2.39 |
| Brand Name: | Fete Filter | Product Category: | Separator Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
