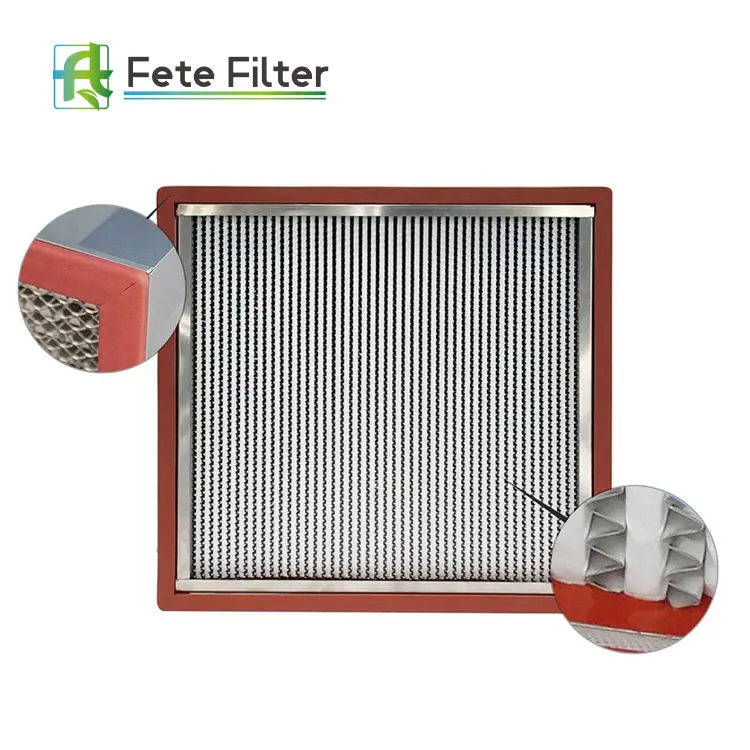

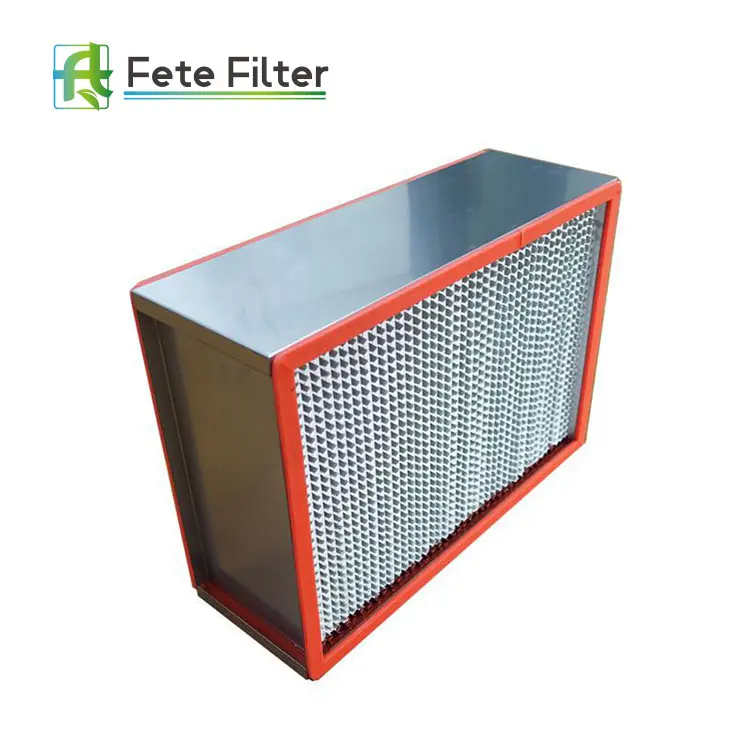

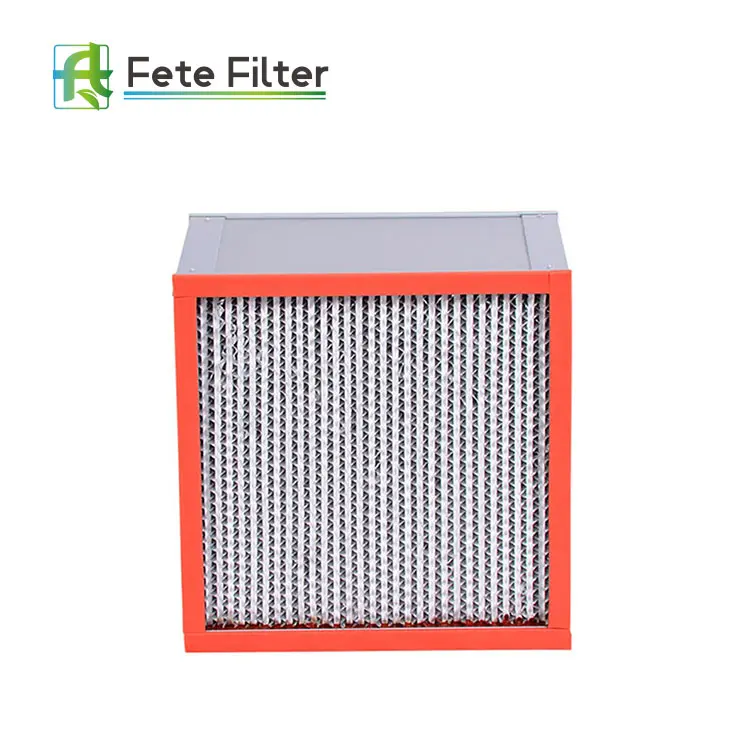

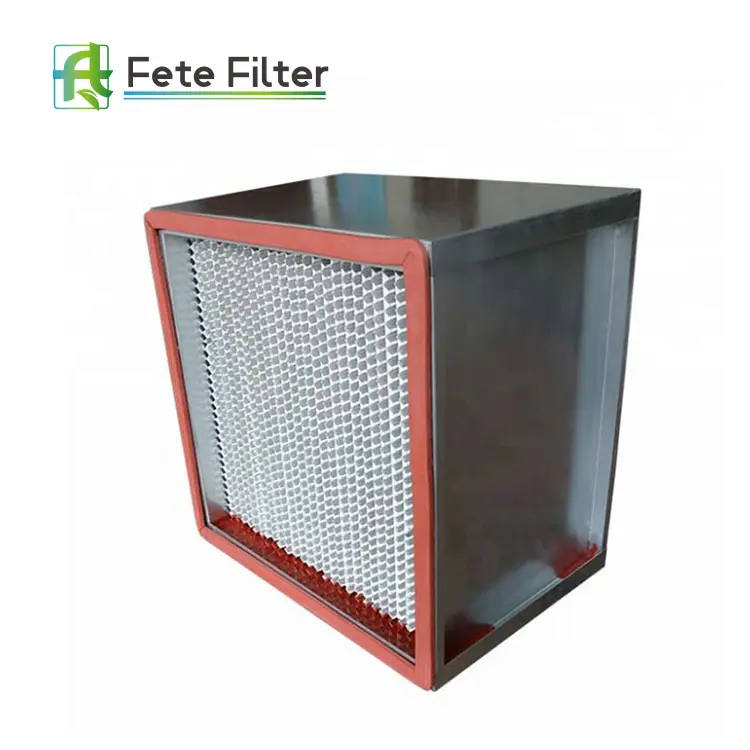

High Temperature Compact Filter
Efficiency: H13/H14
Media: Micron Fiber Glass
Frame: Stainless Steel 304
Seperator: Aluminum foil
Gasket: High Temperature Silicon260℃/Glass fiber rope 350℃
Max. Temperature: 260℃/350℃
Max. Humidity: 100%
General Description
Fete high temperature filters are specially designed to protect processes at high temperatures. They meet the strictest requirements and maintain their integrity and rated performance values under extreme temperatures.
Feature
• enhanced dust retention capacity
• longer lasting
• better air quality
• available in 3 efficiencies
• interchangeable design
Applications
These filters are typically used in automotive, food and beverage or the pharmaceutical industries.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model No. | Actual Size HxWxD(mm) | Air Flow (m³/h) | Media Area Flow (㎡) | Velocity (m/s) | Max. Temperature |
| HTFF-001 | 610*610*120 | 750.0 | 4.41 | 0.53 | 260.0 |
| HTFF-002 | 305*610*150 | 500.0 | 4.7 | 0.75 | 260.0 |
| HTFF-003 | 610*610*150 | 1000.0 | 9.95 | 0.75 | 260.0 |
| HTFF-004 | 610*1220*150 | 2000.0 | 19.17 | 0.75 | 260.0 |
| HTFF-005 | 630*630*220 | 1700.0 | 16.12 | 1.19 | 260.0 |
| HTFF-006 | 610*1220*220 | 3150.0 | 30.2 | 1.18 | 260.0 |
| HTFF-007 | 305*610*292 | 1100.0 | 10.52 | 1.64 | 260.0 |
| HTFF-008 | 610*610*292 | 2200.0 | 21.25 | 1.64 | 260.0 |
| HTFF-009 | 610*915*292 | 3350.0 | 31.87 | 1.67 | 260.0 |
| HTFF-010 | 610*1220*292 | 4450.0 | 42.5 | 1.66 | 260.0 |
| Brand Name: | Fete Filter | Certification: | ISO9001,CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Customized design: | available |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Plan your High Temperature Compact Filter project with the right specs
Fete Filter supplies High Temperature Compact Filter for cleanroom, HVAC and industrial air filtration projects. Browse Separator Filter options,...
Start with the basic job data. Check airflow, filter grade, size, frame, seal, and site condition first. This short review makes comparison easier and helps buyers request the right quote faster.
Check these technical points
- Airflow and pressure drop target
- Filter class, media, and frame type
- Size, seal position, and install direction
- Temperature, humidity, and service life need
Send these quote details
- Length, width, depth, and quantity
- Drawing, old label, or sample photo
- Destination country and package request
- OEM mark, lead time, and delivery plan
Selection guidance for High Temperature Compact Filter
High Temperature Compact Filter is produced as part of our Separator Filter range for buyers who need steady filtration performance, repeatable production quality, and practical export support. When reviewing this model for a new project or a replacement order, it helps to confirm the target airflow, efficiency level, frame depth, sealing direction, and the real operating environment before final approval.
Many projects compare High Temperature Compact Filter with nearby Separator Filter options by looking at pressure drop, service life, media structure, moisture resistance, installation space, and change-out frequency. This comparison is useful because the correct filter choice is not only about efficiency on paper, but also about how the unit behaves inside the full air handling system over time.
For OEM and maintenance purchasing, our team can review drawings, old labels, sample photos, and site conditions to match High Temperature Compact Filter with the required size and construction. We also support discussion on packaging method, shipment plan, recurring batch consistency, and custom markings so buyers can move from technical review to quotation faster.
What buyers usually confirm before ordering
- Whether High Temperature Compact Filter is used as a pre-filter, final filter, gas-phase stage, or replacement component
- Required dimensions, header or frame style, gasket location, and installation orientation
- Expected dust load, gas load, temperature, humidity, and maintenance cycle for the actual application
- Need for OEM branding, export carton details, pallet rules, and delivery schedule by project batch
Compare nearby Separator Filter models
Trusted partners
We have collaborated with many well-known enterprises, contributing to their success and establishing a strong reputation as a trusted partner in the industry.
Quick buying checklist
Keep the request clear and simple. A short, accurate brief helps us match the right Separator Filter option faster.
This page is often used for HVAC, cleanroom, laboratory, process air, and equipment protection projects. The goal is simple: match the filter to the real duty, the real size, and the real service target before production starts.
Most buyers first compare air volume, filtration level, frame style, seal position, and service interval. That step helps remove unsuitable options early and makes technical review easier for both engineers and purchasing teams.
- Confirm the working condition first
- Match the size and filter class to the system
- Check whether the job needs standard or custom dimensions
- Review pressure drop and replacement cycle
- Check frame strength, media type, and seal position
- Confirm whether the project needs washable or disposable media
- Note any temperature, humidity, or corrosion exposure
- Share quantity, shipping country, and label request
- Send a drawing or replacement photo when possible
- Ask for lead time, packing, and OEM details in one message
- Tell us if the filter must match an old sample
- Note any storage, pallet, or carton requirement
- Include the final delivery schedule if the order is phased
- Point out any approval or documentation requirement in advance
If the system already has an installed filter, an old label photo or front-and-side picture is usually enough to speed up checking. That small step helps reduce sizing mistakes, avoids unnecessary back-and-forth, and keeps replacement planning easier for both maintenance teams and purchasing teams.
For retrofit work, it is also helpful to confirm whether the housing, holding frame, or gasket seat has changed over time. A filter that looks similar on paper can still create sealing or fit issues in the field, so clear site information usually saves time during production, delivery, and installation.
