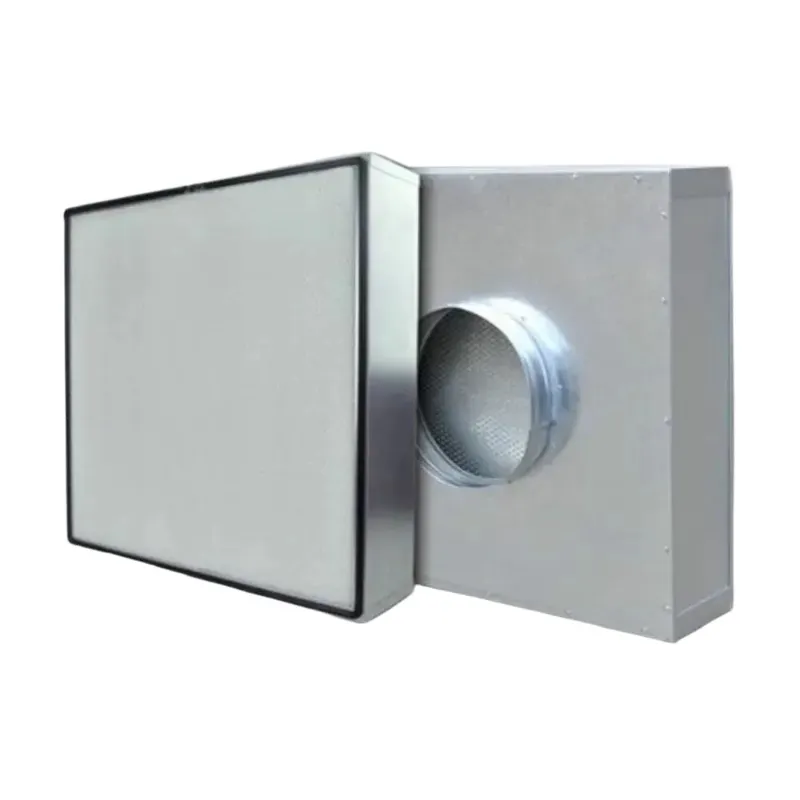

E10 E11 E12 H13 H14 Disposable Hooded Terminal Filter
Item NO. : FT59
Optional Thickness : 120 / 150 / 220mm
Separator : Hot melt bead
Gasket : Pu endless gasket / EVA / EPDM
Sealant : Pu two-component polyurethane glue
Frame : Aluminum / GI / SUS
Media : Micro glass fiber
Efficiency : E10/E11/E12/ H13/H14
Max Temperature : 70℃
Max Humidity : 100%
Product Features
Good ventilation performance
Special sealing technology for superior softness and resistance to deformation
Lightweight, allowing for easy installation and replacement
Integrated design that includes insulation and lifting lugs
Fully tested in the factory before shipment
Applications
These filters are suitable for environments requiring high cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT59-001 | 610*610*120 | 1000.0 | 10.91 | 0.75 |
| FT59-002 | 570*1170*120 | 1800.0 | 19.08 | 0.75 |
| FT59-003 | 610*1220*120 | 2000.0 | 21.31 | 0.75 |
| FT59-004 | 610*610*150 | 1200.0 | 13.64 | 0.9 |
| FT59-005 | 570*1170*150 | 2150.0 | 23.85 | 0.9 |
| FT59-006 | 610*1220*150 | 2400.0 | 26.64 | 0.9 |
| FT59-007 | 610*610*220 | 1500.0 | 16.78 | 1.12 |
| FT59-008 | 570*1170*220 | 2700.0 | 29.36 | 1.12 |
| FT59-009 | 610*1220*220 | 3000.0 | 32.8 | 1.12 |
| Brand Name: | Fete Filter | Product Category: | Mini Pleat Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
