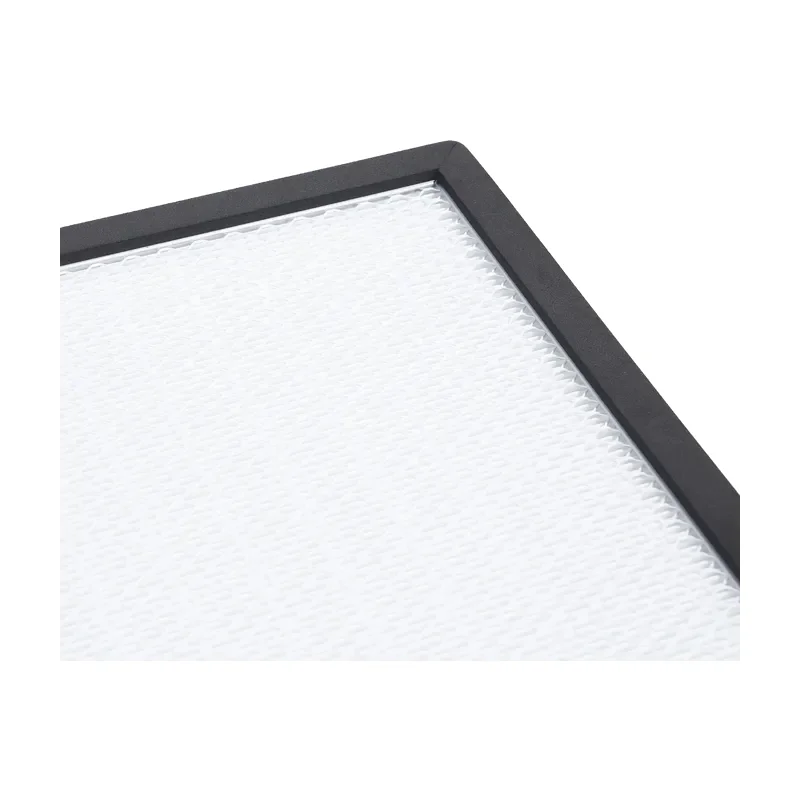

Hepa Knife Edge Mini Pleat Filter
HEPA FTnife-edge Frame Mini-pleat Panel Filter
Two sides with epoxy faceguard to protect the filter media
Item NO. : FTLC-FT67
Optional Thickness : 83 / 110 mm
Separator : Hot melt bead
Gasket : PU foam gasket / EVA / EPDM
Sealant : Two-component polyurethane glue
Frame : Extruded aluminum
Media : Micro glass fiber
Efficiency : E10/E11/E12/H13/H14/U15/U16/U17
Max Temperature : 70℃
Max Humidity : 100%
General Description
The filter features a knife-edge seal design that ensures a secure and airtight fit within the filter housing. This design prevents bypass or leakage of unfiltered air, ensuring that all air passing through the filter is effectively filtered, thus maintaining the integrity of the clean environment.
Product Features
Low resistance
High dust holding capacity
Double protection net to safeguard the glass fiber media
Special sealing adhesive
20mm knife-edge at the outlet side
Glass fiber media separated by hot melt bead
Fully tested in the factory before shipment
Applications
This filter is suitable for environments requiring high cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT67-001 | 320*320*110 | 400.0 | 4.0 | 1.09 |
| FT67-002 | 305*610*110 | 690.0 | 7.1 | 1.03 |
| FT67-003 | 484*484*110 | 880.0 | 9.1 | 1.04 |
| FT67-004 | 305*915*110 | 1020.0 | 10.5 | 1.02 |
| FT67-006 | 610*610*110 | 1400.0 | 14.4 | 1.05 |
| FT67-007 | 484*968*110 | 1730.0 | 17.8 | 1.03 |
| FT67-008 | 610*915*110 | 2070.0 | 21.3 | 1.03 |
| FT67-009 | 762*762*110 | 2170.0 | 22.4 | 1.04 |
| FT67-011 | 600*1200*110 | 2660.0 | 27.4 | 1.03 |
| FT67-012 | 610*1220*110 | 2750.0 | 28.3 | 1.03 |
| Brand Name: | Fete Filter | Product Category: | Mini Pleat Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
