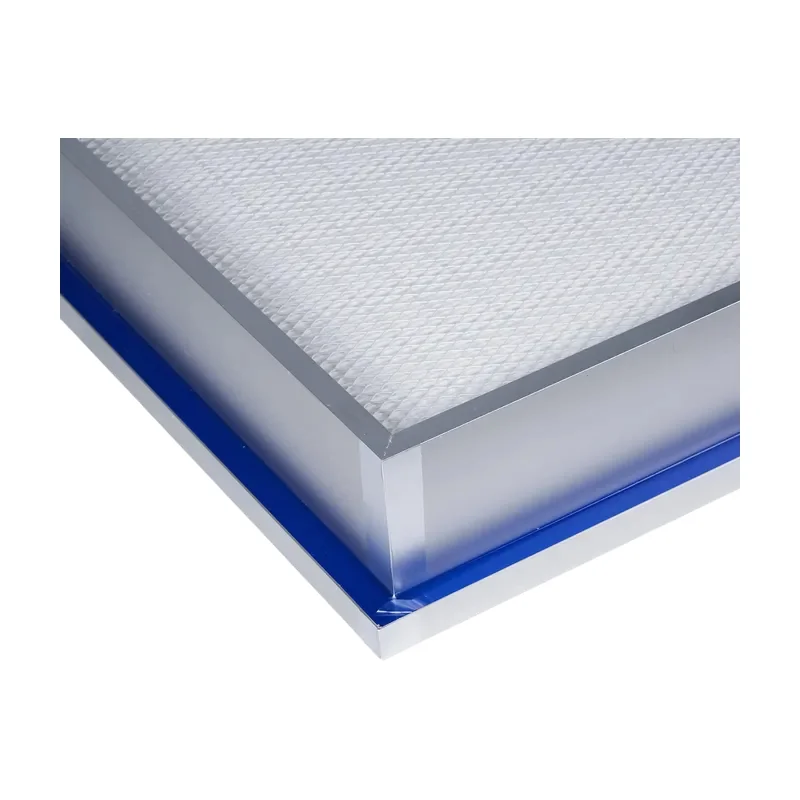

Excellent Sealing Gel Type Mini Pleat Hepa Ulpa Filter
Item NO. : FTLC-FT69
Optional Thickness : 69 / 81 / 90 / 93 / 104 / 117mm
Separator : Hot melt bead
Gasket : Gel jelly glue
Sealant : Pu two-component polyurethane glue
Frame : Extruded aluminum
Media : Micro glass fiber
Efficiency : H13 / H14 / U15 / U16 / U17
Max Temperature : 70℃
Max Humidity : 100%
Product Features
Good appearance and space-saving design
Ideal partner for knife-edge frames
Injects permanent blue gel for an environmentally friendly and reliable sealing efficiency
Lightweight, allowing for convenient installation and replacement
Low operational cost
Long lifespan
Excellent sealing
Applications
Widely used for terminal filtration in clean rooms and as the filtration unit in GMP-standard cleanroom equipment.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT69-001 | 346*346*69 | 300.0 | 2.8 | 0.75 |
| FT69-003 | 636*636*69 | 1000.0 | 10.0 | 0.75 |
| FT69-006 | 636*1246*69 | 2000.0 | 19.68 | 0.75 |
| FT69-009 | 636*636*90 | 1500.0 | 15.77 | 1.12 |
| FT69-011 | 596*1196*90 | 2500.0 | 27.8 | 1.04 |
| FT69-012 | 636*1246*90 | 3000.0 | 31.04 | 1.12 |
| FT69-013 | 320*320*95 | 350.0 | 3.19 | 0.95 |
| FT69-014 | 484*484*95 | 700.0 | 7.24 | 0.83 |
| FT69-015 | 610*610*95 | 1100.0 | 11.45 | 0.82 |
| FT69-016 | 610*1220*95 | 2200.0 | 22.55 | 0.82 |
| Brand Name: | Fete Filter | Product Category: | Mini Pleat Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Excellent Sealing Gel Type Mini Pleat Hepa Ulpa Filter project with the right specs
Fete Filter supplies Excellent Sealing Gel Type Mini Pleat Hepa Ulpa Filter for cleanroom, HVAC and industrial air filtration projects. Browse...
Review Mini Pleat Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Excellent Sealing Gel Type Mini Pleat Hepa Ulpa Filter
Review Mini Pleat Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Compare nearby Mini Pleat Filter models
