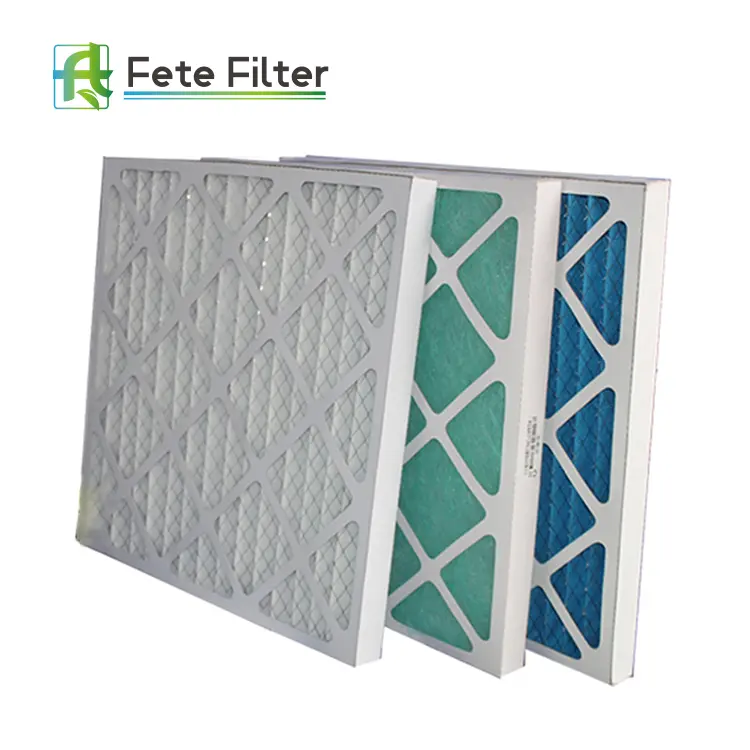

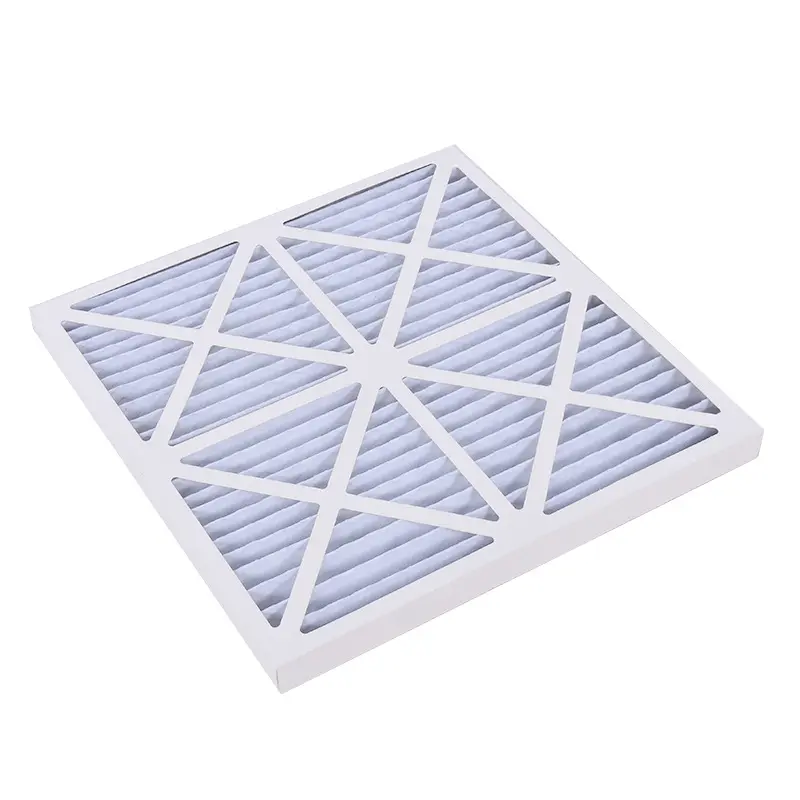

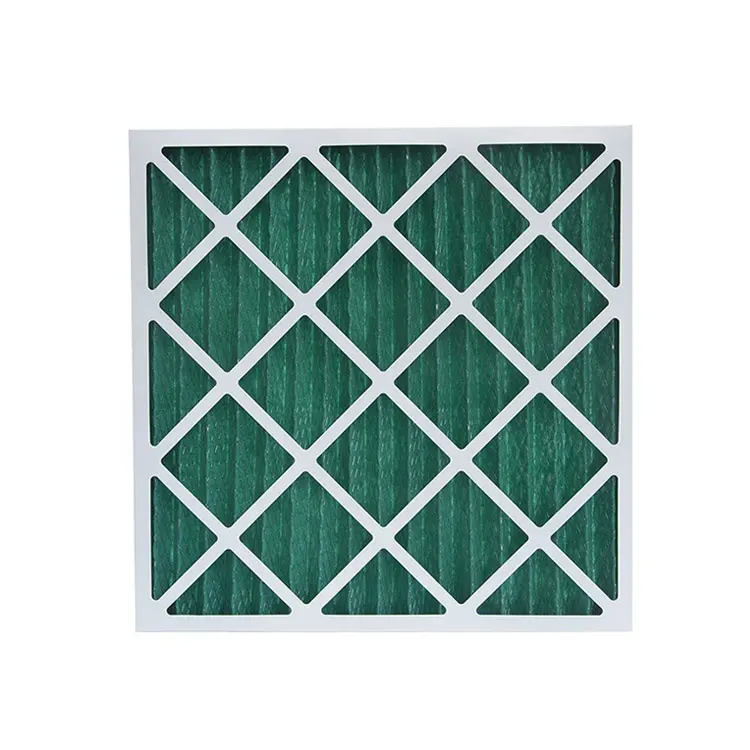

Mediumsub Hepa Cardboard Frame Mini Pleat Filter
Item NO. : FT57
Optional Thickness : 38 ~ 120mm
Separator : Hot melt bead
Gasket : Pu endless gasket / EVA / EPDM
Sealant : Pu two-component polyurethane glue
Frame : Aluminum / GI / SUS / MDF
Media : Micro glass fiber
Efficiency : F6 / F7 / F8 / F9 / H10 / H11 / H12
Max Temperature : 70℃
Max Humidity : 100%
General Description
The Cardboard Frame Mini-Pleat Filter is an excellent choice for those seeking a high-performance air filtration solution. It features a sturdy frame that ensures optimal performance. This filter combines effective filtration, low pressure drop, easy installation, and cost-effectiveness, making it a reliable option for various air filtration needs.
Product Features
Lightweight, convenient installation, and replacement
Stable efficiency and uniform velocity
Fully tested in the factory before shipment
Compact design to save space
Cost-efficient with extensive applications
Tailored design to protect the HEPA filter
Applications
This filter is primarily used in central air-conditioning and integrated air supply systems to protect medium and HEPA filters, as well as the system itself.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT57-A-011 | 320*320*69 | 400.0 | 2.79 | 1.09 |
| FT57-A-012 | 484*484*69 | 900.0 | 6.32 | 1.07 |
| FT57-A-013 | 610*610*69 | 1450.0 | 10.0 | 1.08 |
| FT57-A-014 | 570*1170*69 | 2550.0 | 17.62 | 1.06 |
| FT57-A-015 | 610*1220*69 | 2850.0 | 19.68 | 1.06 |
| FT57-A-016 | 320*320*96 | 650.0 | 4.36 | 1.76 |
| FT57-A-017 | 484*484*96 | 1450.0 | 9.87 | 1.72 |
| FT57-A-018 | 610*610*96 | 2300.0 | 15.62 | 1.72 |
| FT57-A-019 | 610*915*96 | 3400.0 | 23.18 | 1.69 |
| FT57-A-020 | 610*1220*96 | 4500.0 | 30.74 | 1.68 |
| Brand Name: | Fete Filter | Product Category: | Mini Pleat Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Mediumsub Hepa Cardboard Frame Mini Pleat Filter project with the right specs
Fete Filter supplies Mediumsub Hepa Cardboard Frame Mini Pleat Filter for cleanroom, HVAC and industrial air filtration projects. Browse Mini...
Review Mini Pleat Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Mediumsub Hepa Cardboard Frame Mini Pleat Filter
Review Mini Pleat Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
