Air-Filter/ Pocket-Filter/ Glass-Fiber-Pocket-Filter

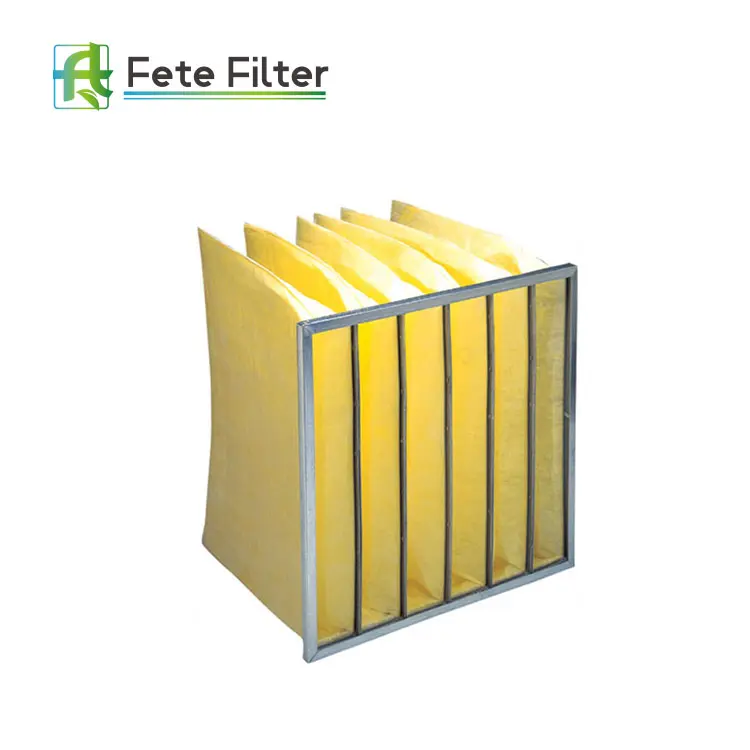

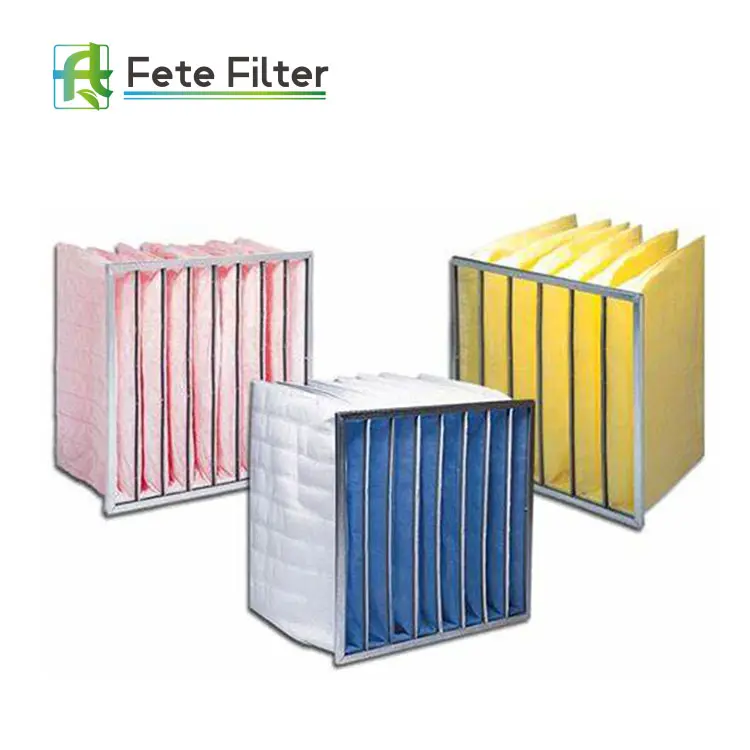

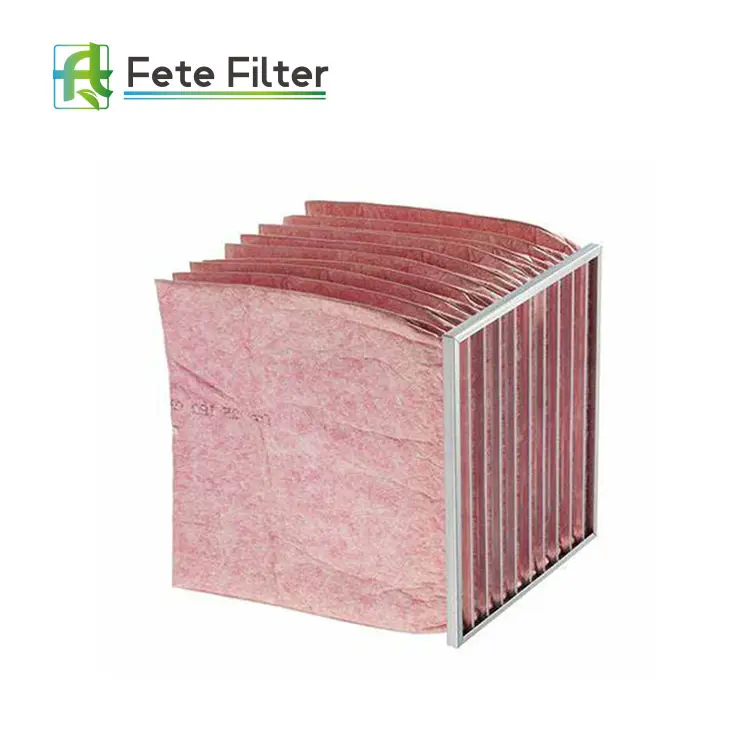

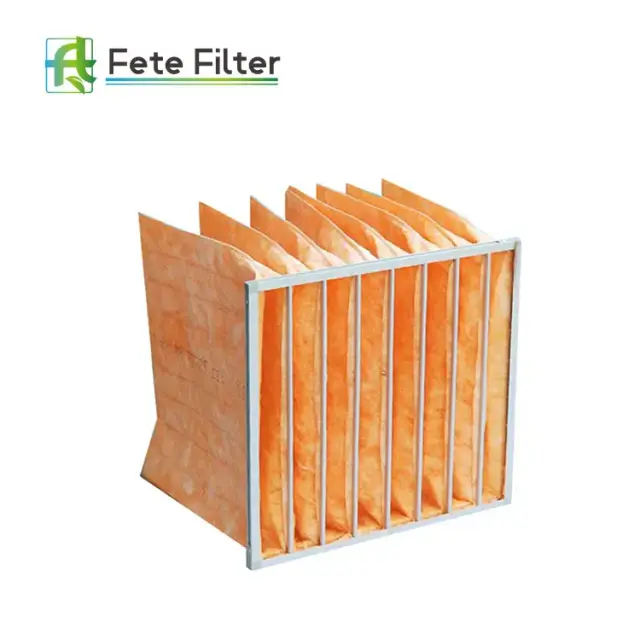

Glass Fiber Pocket Filter

Frame: aluminum alloy or galvanized steel
Thickness of frame: 21mm or 25mm
Filter media: glass fiber
Efficiency: 45%, 65%, 85% , 95% ( F5, F6, F7, F8 )
Maximal final presssure drop : 450 Pa
Highest temperature : 70 °C
Maximum relative humidity : 90%

Quick Quote

General Description

Pocket air filters provide between 80% and 85% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 50% and 65% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder).

Feature

1.Filter media made of polymer and fiberglass
2.Robust galvanized steel or aluminum frame
3.Rugged and lightweight polyurethane molded header for easy handling and maintenance
4.Stable tapered pocket for optimum airflow

Applications

For most of the commercial building and cleanroom HVAC system, remove dust size over 5micron.

Technology Parameters

Model Actual Size HxWxD(mm) Air Flow (m³/h) Media Area Flow (㎡) Velocity (m/s) Pocket Numbers
GFPF-001 287*592*381 750.0 1.6 1.23 3.0
GFPF-002 287*592*600 1200.0 2.5 1.96 3.0
GFPF-003 490*592*50O 1900.0 4.1 1.82 6.0
GFPF-004 592*592*381 1500.0 3.2 1.19 6.0
GFPF-005 592*592*381 1900.0 4.1 1.51 8.0
GFPF-006 592*592*381 2400.0 5.0 1.9 10.0
GFPF-007 592*592*500 2500.0 5.4 1.98 8.0
GFPF-008 592*592*600 2300.0 5.0 1.82 6.0
GFPF-009 592*592*600 295o 6.4 2.34 8.0
GFPF-010 592*592*600 3600.0 7.9 2.85 10.0
