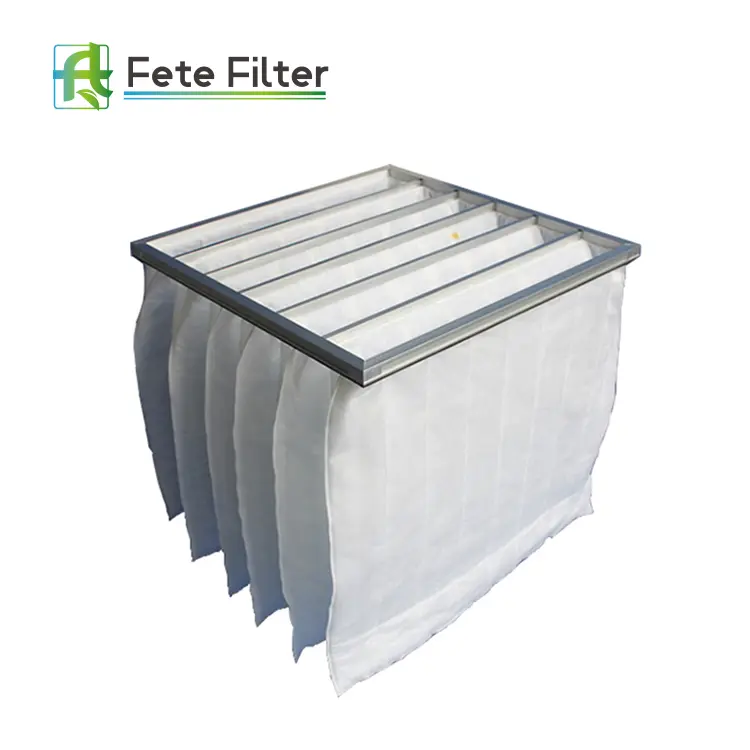

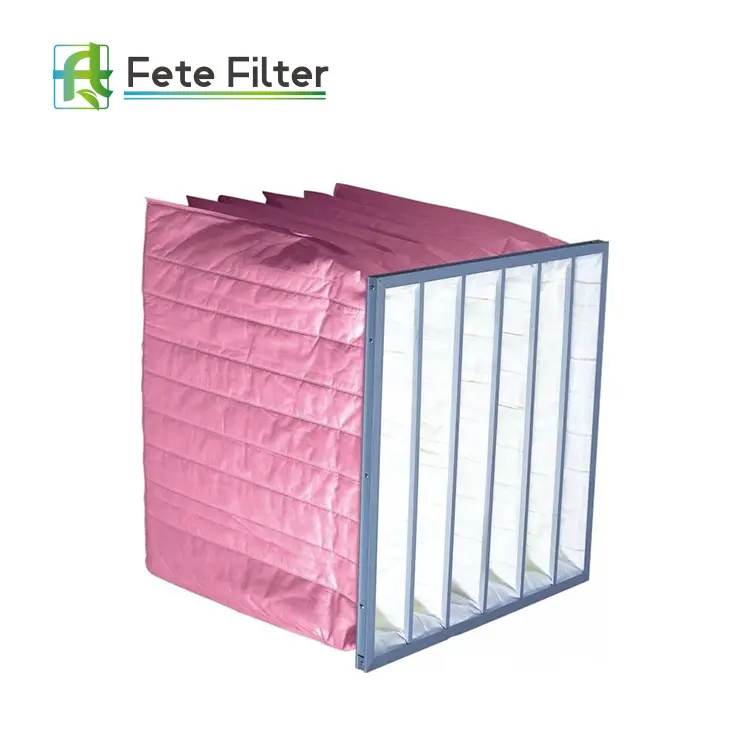

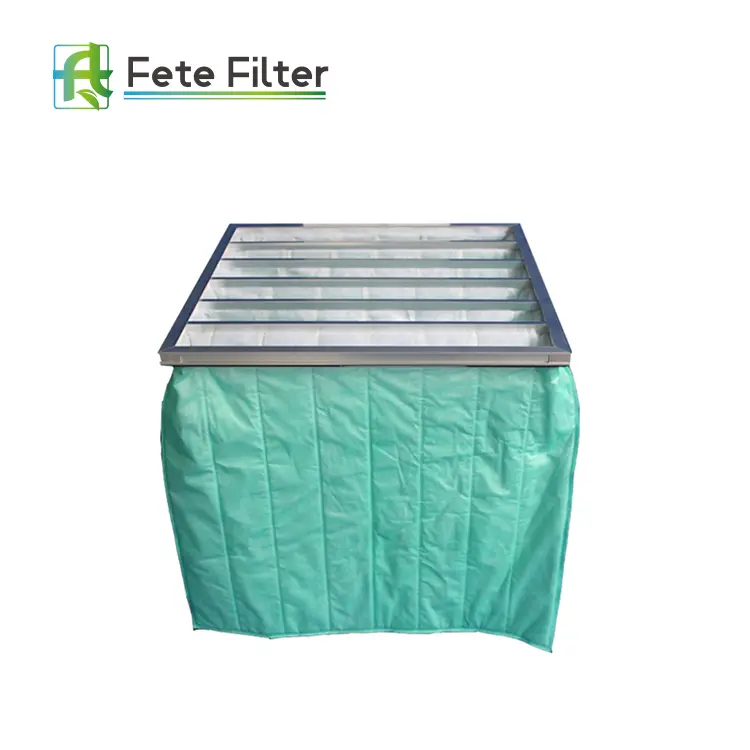

Synthetic Fiber Pocket Filter
Available efficiency designations: G4 to F9; confirm the referenced test method in the quotation.
Media: Synthetic fiber
Frame: 21 mm galvanized steel; other configurations subject to confirmation.
Maximum operating temperature: Confirm for the selected media and configuration.
Maximum relative humidity: Confirm for the selected media and operating conditions.
General Description
Synthetic fiber pocket filters are used in air-handling units and ventilation systems where a larger media area is needed within a compact face size. Select the filter using the required efficiency designation and test method, rated airflow, initial resistance, face dimensions, pocket count and pocket length.
Selection Points
Compare all candidates at the same rated airflow and referenced test method.
Confirm face size, frame depth, pocket count and pocket length against the air-handling unit.
Check the initial pressure drop against the available fan pressure.
Define the operating temperature, humidity and final-resistance replacement policy.
For replacements, provide the existing label, dimensions and airflow.
Applications
Typical applications include commercial and industrial ventilation, HVAC air-handling units, electronics production, pharmaceutical facilities, laboratories and other controlled environments. Final selection should be reviewed against the system airflow and installation conditions.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model | Actual size H x W x D (mm) | Air flow (m3/h) | Media area (m2) | Face velocity (m/s) | Pocket count |
| SFPF-001 | 287*287*381 | 600.0 | 0.89 | 2.02 | 3.0 |
| SFPF-002 | 592*592*381 | 2050.0 | 3.18 | 1.62 | 6.0 |
| SFPF-003 | 287*592*500 | 1350.0 | 2.1 | 2.21 | 3.0 |
| SFPF-004 | 287*592*500 | 1750.0 | 2.68 | 2.86 | 4.0 |
| SFPF-005 | 490*592*500 | 2250.0 | 3.48 | 2.15 | 5.0 |
| SFPF-006 | 592*592*500 | 2700.0 | 4.17 | 2.14 | 6.0 |
| SFPF-007 | 592*592*500 | 3500.0 | 5.37 | 2.77 | 8.0 |
| SFPF-008 | 592*592*500 | 4250.0 | 6.56 | 3.37 | 10.0 |
| Brand Name: | Fete Filter | Product Category: | Pocket Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Synthetic Fiber Pocket Filter project with the right specs
Compare synthetic fiber pocket filters by efficiency designation, test method, airflow, resistance, face size, pocket count, length and frame.
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Check these technical points
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
Send these quote details
- Face dimensions, pocket length and quantity
- Required efficiency designation and test method
- Rated airflow and acceptable initial resistance
- Frame material, header style and packaging requirements
Selection guidance for Synthetic Fiber Pocket Filter
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Compare media type, pocket count, pocket length, frame construction and pressure-drop data at the same airflow with nearby pocket filter models.
For replacement matching, send the current label, face dimensions, pocket length, airflow, quantity and operating conditions.
What buyers usually confirm before ordering
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
