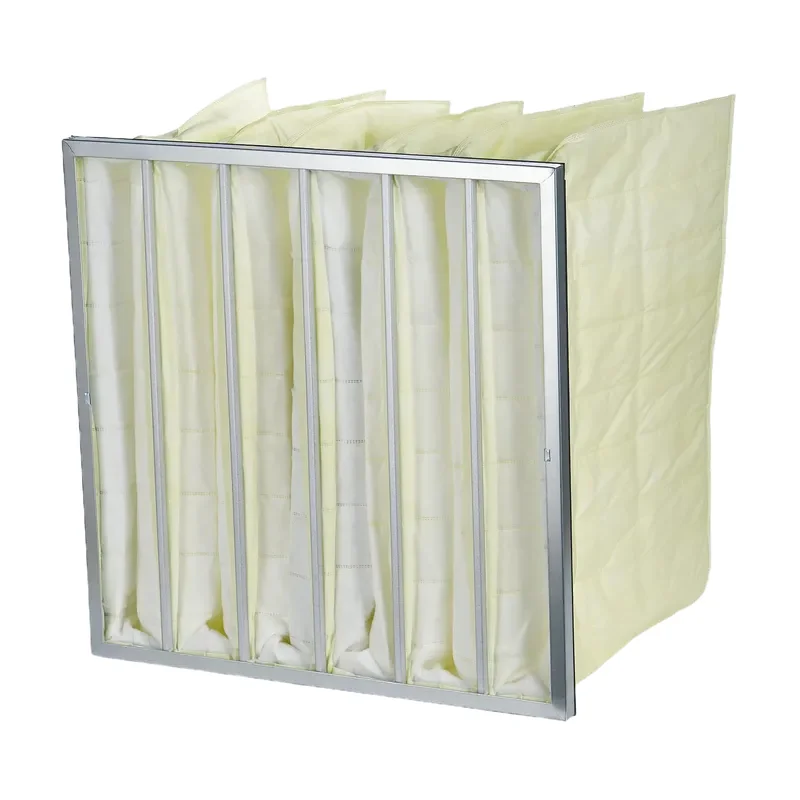

Washable G3 G4 Synthetic Fiber Pocket Pre Filter
Washable G3 / G4 Synthetic Fiber Pocket Pre Filter
Third party authority certification (VTT test)
Optional Thickness : Aluminum / GI: 21, 25, 46; Plastic: 25
Media : Synthetic fiber / Polyester fiber
Efficiency : G3 / G4
Max Temperature : 50℃
Max Humidity : 100%
Item NO. : FTP7
Pocket type : Ultrasonic bag/Sewing bag
Product Features
Large media area and dust retention capacity
Fully tested in the factory before shipment
Third-party authority certification (VTT test)
Imported synthetic fiber material
Relative humidity tolerance up to 100%
Large airflow with low resistance and great efficiency
Washable (limited)
Applications
Pre-filtration for central air-conditioning systems, HVAC systems, and large air compressors.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| KP7-001 | 287*287*381 | 800.0 | 0.89 | 2.7 | 3.0 |
| KP7-002 | 490*592*381 | 2400.0 | 2.65 | 2.3 | 5.0 |
| KP7-003 | 592*592*381 | 2900.0 | 3.18 | 2.3 | 6.0 |
| KP7-004 | 592*592*381 | 3700.0 | 4.09 | 2.93 | 8.0 |
| KP7-005 | 287*287*500 | 1050.0 | 1.16 | 3.54 | 3.0 |
| KP7-007 | 592*592*500 | 3750.0 | 4.17 | 2.97 | 6.0 |
| KP7-009 | 287*287*600 | 1250.0 | 1.4 | 4.22 | 3.0 |
| KP7-010 | 490*592*600 | 3750.0 | 4.17 | 3.59 | 5.0 |
| KP7-011 | 592*592*600 | 4500.0 | 5.01 | 3.57 | 6.0 |
| KP7-012 | 592*592*600 | 5800.0 | 6.44 | 4.6 | 8.0 |
| Brand Name: | Fete Filter | Product Category: | Pocket Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Washable G3 G4 Synthetic Fiber Pocket Pre Filter project with the right specs
Fete Filter supplies Washable G3 G4 Synthetic Fiber Pocket Pre Filter for cleanroom, HVAC and industrial air filtration projects. Browse Pocket...
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Check these technical points
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
Send these quote details
- Face dimensions, pocket length and quantity
- Required efficiency designation and test method
- Rated airflow and acceptable initial resistance
- Frame material, header style and packaging requirements
Selection guidance for Washable G3 G4 Synthetic Fiber Pocket Pre Filter
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Compare media type, pocket count, pocket length, frame construction and pressure-drop data at the same airflow with nearby pocket filter models.
For replacement matching, send the current label, face dimensions, pocket length, airflow, quantity and operating conditions.
What buyers usually confirm before ordering
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
