M5 M6 F7 F8F 9 Long Life Span Synthetic Fiber Pocket Filter
M5/M6/F7/F8/F9 Long Life-span Synthetic Fiber Pocket Filter
Large dust holding capacity and stable performance, cost-effective, affordable.
Optional Thickness : Aluminum: 21, 25, 46 Plastic: 25
Media : Synthetic fiber / Non-wowen fabrics
Efficiency : M5, M6, F7, F8, F9
Max Temperature : 50℃
Max Humidity : 100%
Item NO. : FTP8
Pocket type : Sewing bag / Ultrasonic bag
General Description

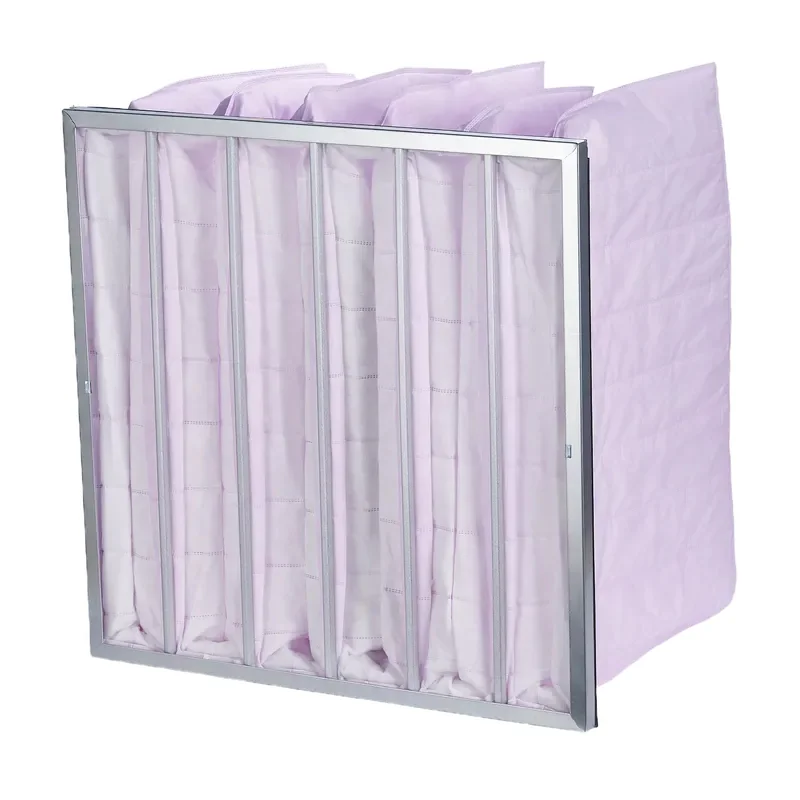

This pocket medium filter is constructed with precision to ensure a proper fit and maximize the utilization of the available filter area. The pockets are arranged in a V-shaped configuration, allowing for optimal dust retention capacity and extended filter life. The synthetic fiber media offers high dust retention efficiency, effectively preventing the re-release of captured particles into the air.
The Synthetic Fiber Pocket Medium Filter is available in various performance level ratings, ranging from low to high, based on specific filtration needs. It is commonly used in HVAC systems for residential, commercial, and industrial facilities, providing clean and healthy air for occupants. This filter plays a vital role in reducing the risk of respiratory issues and improving overall indoor air quality.
Product Features
Large dust retention capacity and stable performance
Washable (limited)
Capable of handling large air volume with low resistance and high efficiency
Long lifespan
Fully tested in the factory before shipment
“V” type pocket structure for economical and high-performance cost
Applications
This filter is suitable for environments requiring high cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Material and Operation Conditions
| Model | Size |
|---|---|
| Media | Synthetic fiber / Non-wowen fabrics |
| Pocket type | Sewing bag / Ultrasonic bag |
| Frame | Extruded aluminum / Galvanized steel / Plastic(ABS) |
| Optional frame thickness(mm) | Aluminum: 21, 25, 46 Plastic: 25 |
| Max. Temperature | 50℃ |
| Max. Humidity | 100% |
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| KP8-001 | 287*287*381 | 600.0 | 0.89 | 2.02 | 3.0 |
| KP8-002 | 592*592*381 | 2050.0 | 3.18 | 1.62 | 6.0 |
| KP8-003 | 287*592*500 | 1350.0 | 2.1 | 2.21 | 3.0 |
| KP8-004 | 287*592*500 | 1750.0 | 2.68 | 2.86 | 4.0 |
| KP8-005 | 490*592*500 | 2250.0 | 3.48 | 2.15 | 5.0 |
| KP8-006 | 592*592*500 | 2700.0 | 4.17 | 2.14 | 6.0 |
| KP8-007 | 592*592*500 | 3500.0 | 5.37 | 2.77 | 8.0 |
| KP8-008 | 592*592*500 | 4250.0 | 6.56 | 3.37 | 10.0 |
| Brand Name: | Fete Filter | Product Category: | Pocket Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your M5 M6 F7 F8F 9 Long Life Span Synthetic Fiber Pocket Filter project with the right specs
Fete Filter supplies M5 M6 F7 F8F 9 Long Life Span Synthetic Fiber Pocket Filter for cleanroom, HVAC and industrial air filtration projects....
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Check these technical points
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
Send these quote details
- Face dimensions, pocket length and quantity
- Required efficiency designation and test method
- Rated airflow and acceptable initial resistance
- Frame material, header style and packaging requirements
Selection guidance for M5 M6 F7 F8F 9 Long Life Span Synthetic Fiber Pocket Filter
Confirm the efficiency designation, test method, rated airflow, initial resistance, face size and pocket length before selecting this pocket filter.
Compare media type, pocket count, pocket length, frame construction and pressure-drop data at the same airflow with nearby pocket filter models.
For replacement matching, send the current label, face dimensions, pocket length, airflow, quantity and operating conditions.
What buyers usually confirm before ordering
- Efficiency designation and referenced test method
- Rated airflow, initial resistance and final resistance plan
- Face size, pocket count, pocket length and frame depth
- Synthetic or glass-fiber media and operating conditions
