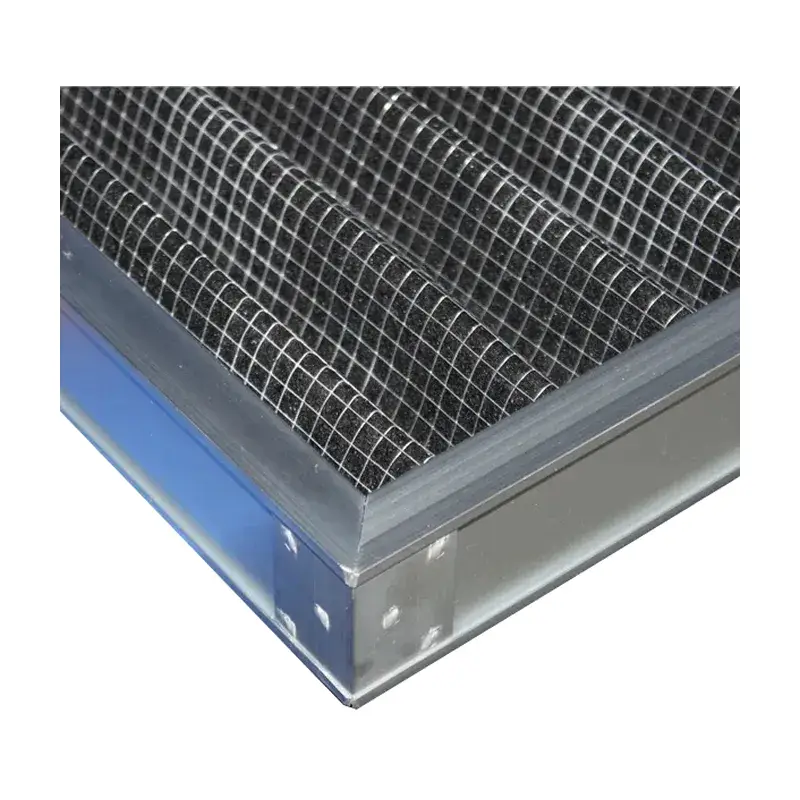

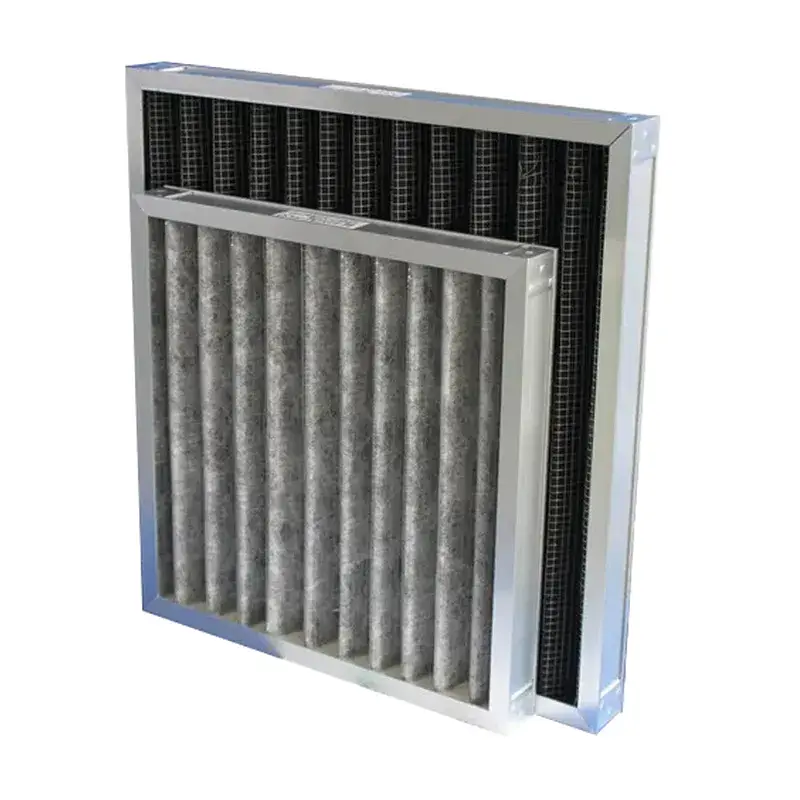

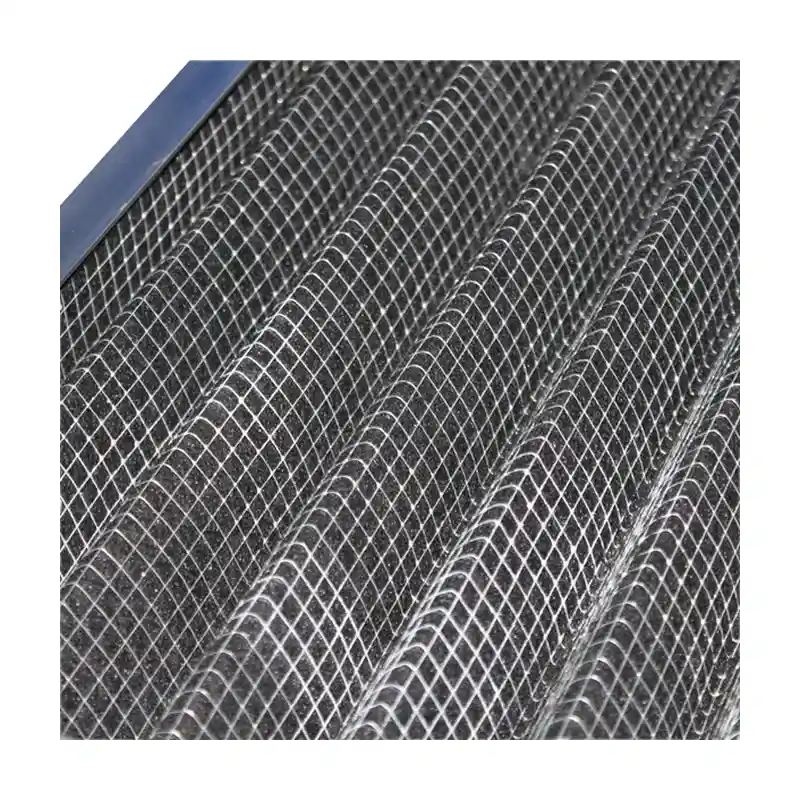

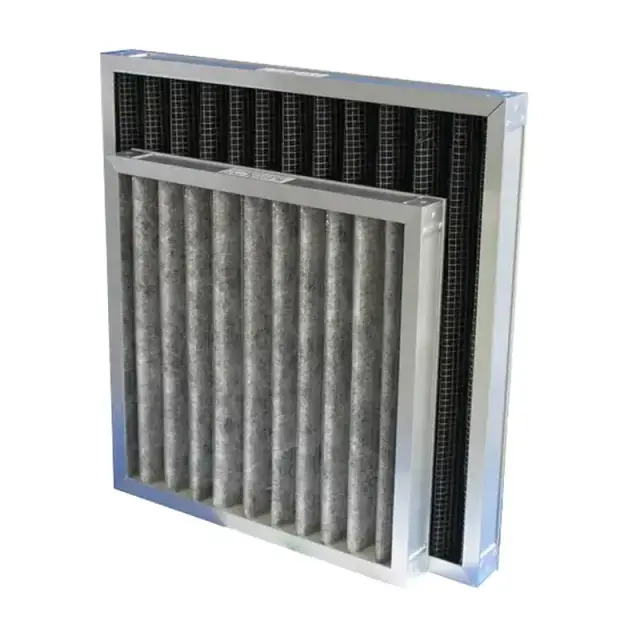

Odor Removal Activated Carbon Pleated Air Filter
Item NO. : FT41-C
Optional Thickness : 17~96 mm
Sealant : White latex or universal glue
Frame : Aluminum / GI / Cardboard
Media : Activated carbon fiber
Max Temperature : 50℃ (except cardboard)
Max Humidity : 100% (except cardboard)
Odor removal rate : >70%
General Description
Activated carbon air filters are widely recognized as one of the most effective methods for purifying indoor air. These filters are designed to remove a wide range of airborne pollutants, odors, and volatile organic compounds (VOCs), resulting in cleaner and healthier air.
Product Features
Long lifespan of media
Fully tested in the factory before shipment
Easy to use
Effective in odor removal
Made with high-quality activated felt or activated carbon fiber to meet the special needs of various environments
Various frame options available for different operating conditions
Applications
These filters are suitable for environments requiring high cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| FT41-C-001 | 594*289*21 | 350.0 | 0.28 | 0.57 |
| FT41-C-002 | 594*492*21 | 600.0 | 0.48 | 0.57 |
| FT41-C-003 | 594*594*21 | 750.0 | 0.58 | 0.59 |
| FT41-C-004 | 594*289*46 | 500.0 | 0.4 | 0.81 |
| FT41-C-005 | 594*492*46 | 850.0 | 0.67 | 0.81 |
| FT41-C-006 | 594*594*46 | 1000.0 | 0.81 | 0.79 |
| FT41-C-009 | 594*594*69 | 1400.0 | 1.11 | 1.1 |
| FT41-C-012 | 594*594*80 | 1600.0 | 1.28 | 1.26 |
| FT41-C-013 | 594*289*96 | 950.0 | 0.75 | 1.54 |
| FT41-C-015 | 594*594*96 | 1950.0 | 1.53 | 1.54 |
| Brand Name: | Fete Filter | Product Category: | Chemical Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
