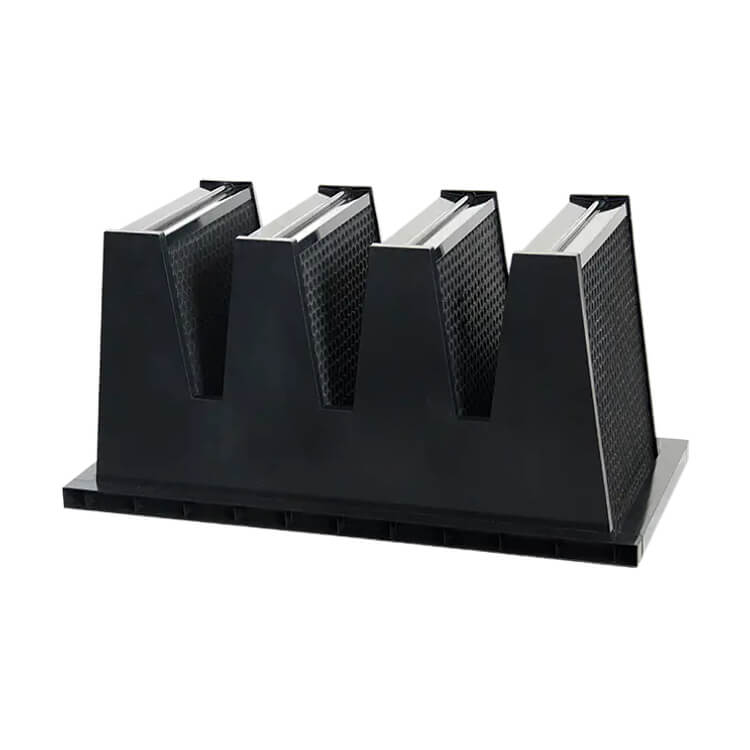

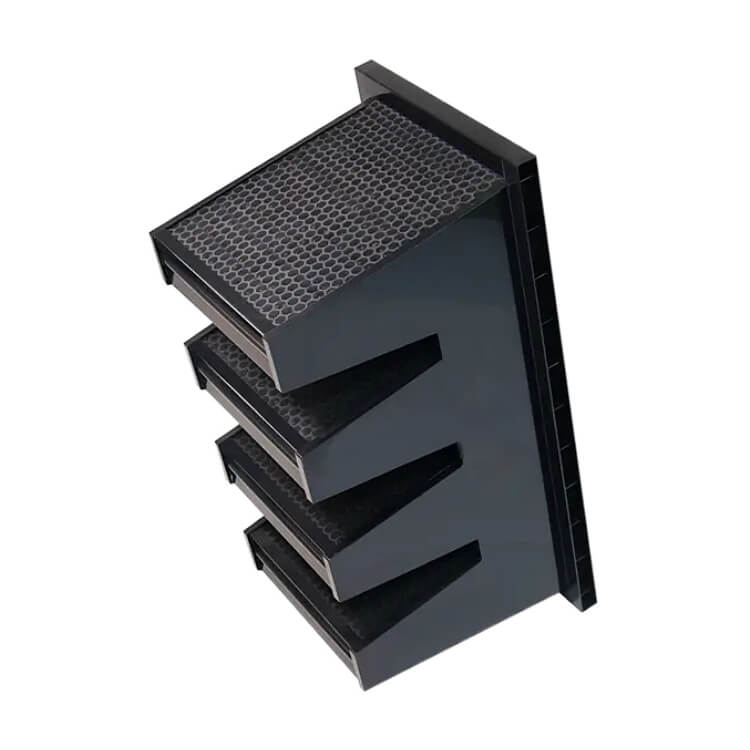

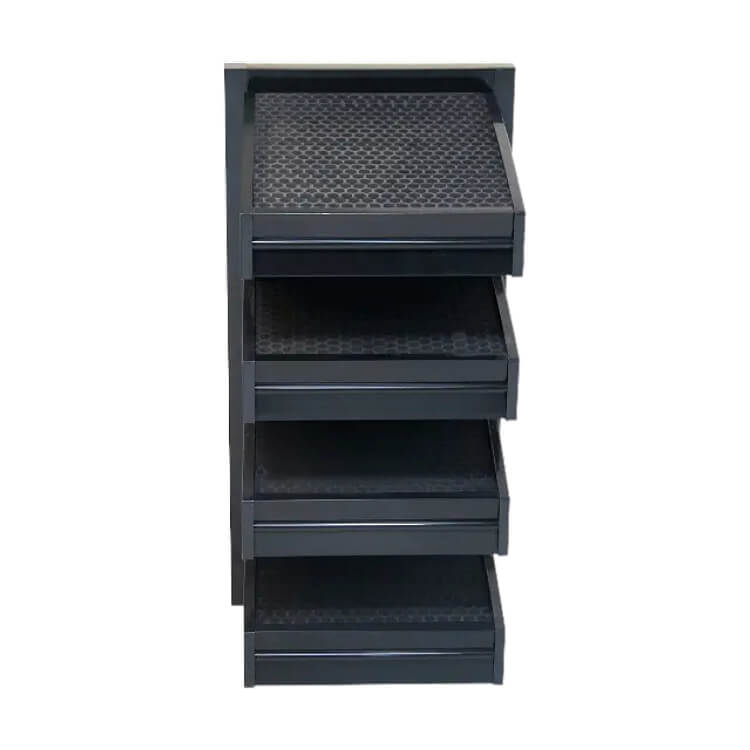

V Type Chemical Activated Carbon Air Filters

The FafSorb HC filter effectively removes indoor and outdoor gaseous contaminants at high airflows, improving indoor air quality.

It can be added to existing HVAC systems or new constructions designed for 12" deep, single header filters.

Customization Note: Non-standard customization is welcomed.

Product Overview

High chemical media content

Low resistance V-bank design

Deep honeycomb panels

Corrosion-free, non-metal construction

Fully incinerable

Media options include activated carbon, activated alumina impregnated with potassium permanganate, or a blend of both.

Typical Applications

• Commercial Buildings

• Data Centers

• Food and Beverage

• Healthcare

• Hospitality

• Museums & Historic Storage

• Schools and Universities

Removes Common Contaminants

FafSorb HC filters effectively remove indoor and outdoor gaseous contaminants at high airflow rates, improving indoor air quality. They can be retrofitted into existing HVAC systems or specified in new constructions. Compatible with equipment designed for 12" deep, single header filters.

Media

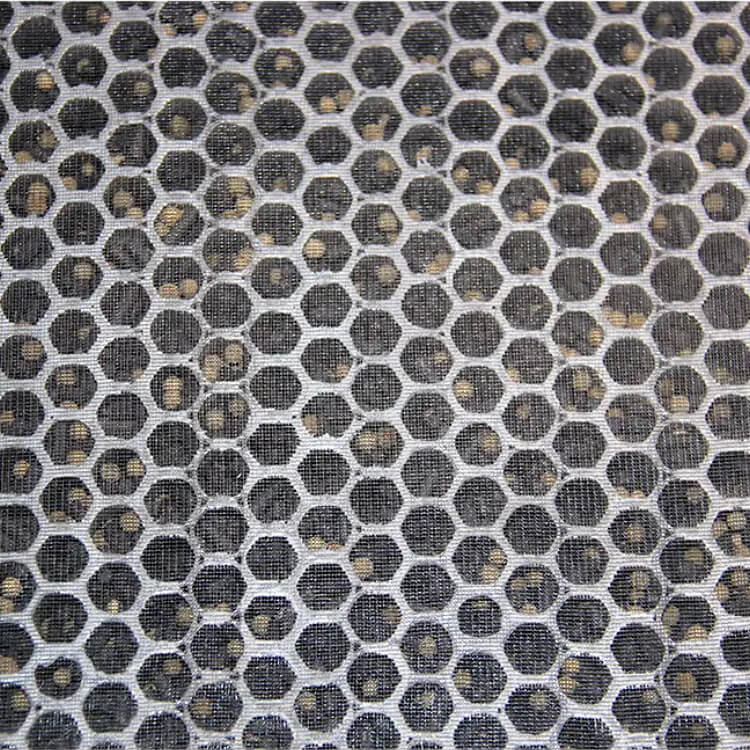

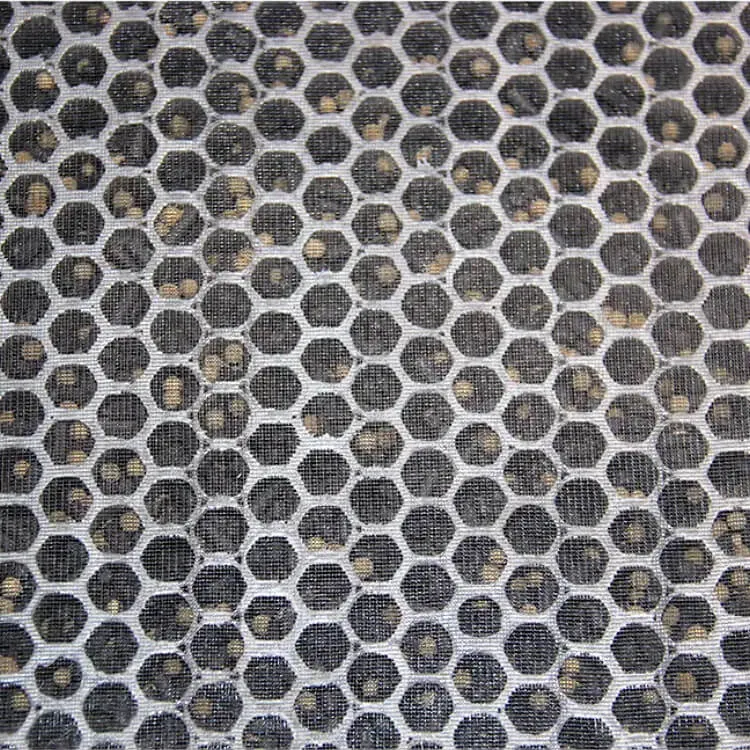

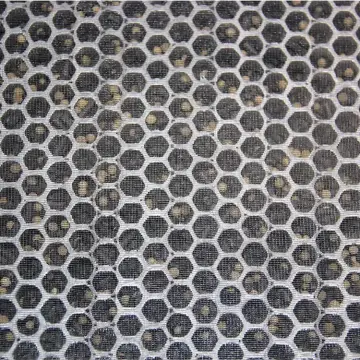

Choose from FafCarb media, composed of activated carbon, FafOxidant media, a blend of activated alumina impregnated with potassium permanganate, or a combination of both. The media is housed in honeycomb-structured panels with fine mesh scrim on each side to retain the granules. FafCarb effectively eliminates VOCs, jet and diesel fumes, and hydrocarbons, while FafOxidant removes hydrogen sulfide, sulfur oxides, formaldehyde, and nitric oxides.

Filter Depth: 11 1/2" (292 mm)

Media Type: Chemical

Frame Material: Plastic

Brand Name: Fete Filter Certification: ISO9001,CE
Place of Origin: China Condition: New
Warranty: 3 years Customized design: available
