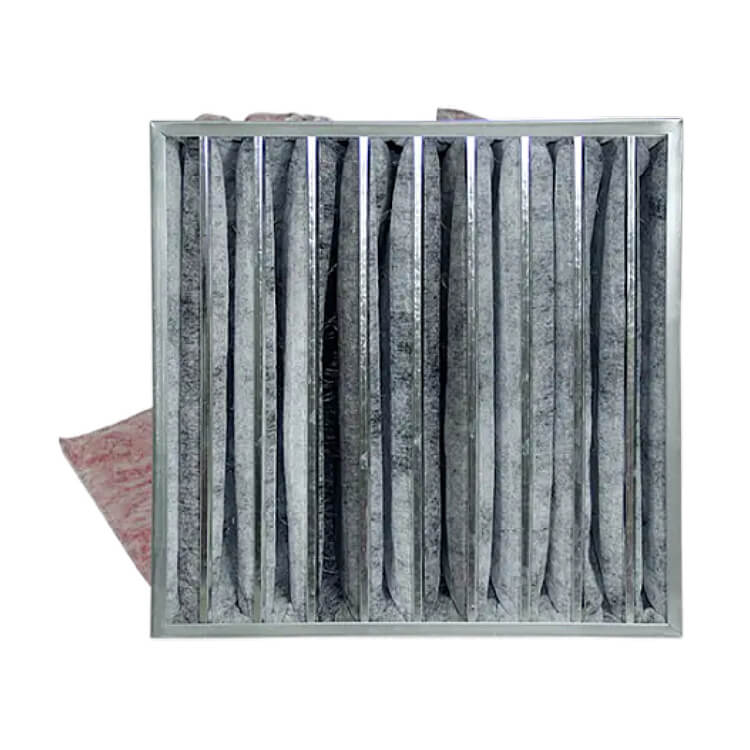

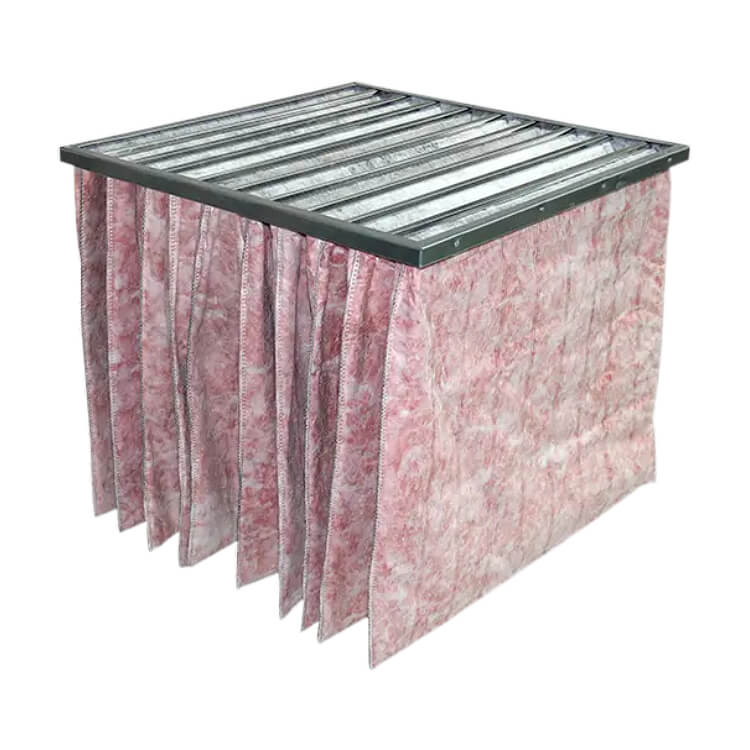

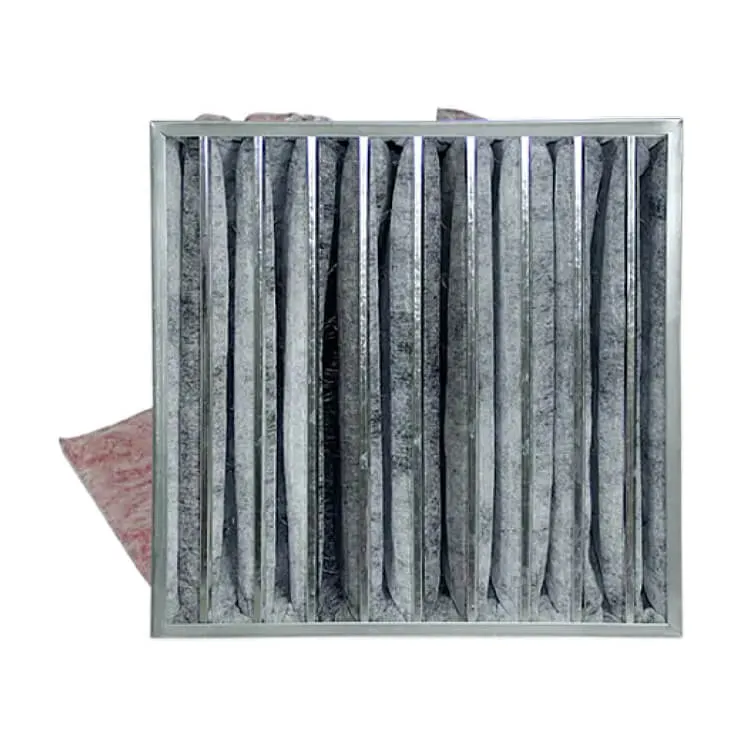

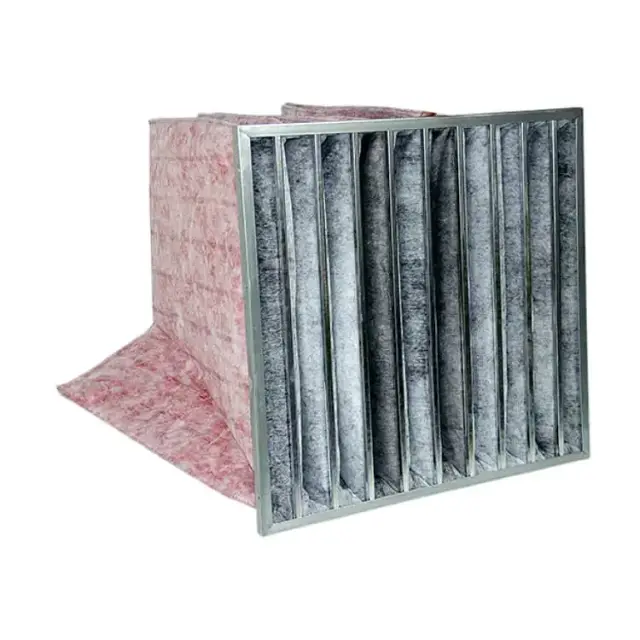

Activated Carbon Bag Filter City Flo
The Activated carbon bag filter City Flo filter utilizes a highly effective broad spectrum carbon media layer to ensure removal of a very wide range of airborne chemicals.
Customization Note: Non-standard customization is welcomed.
ADVANTAGES of the Activated carbon bag filter City Flo
● Can be used to upgrade existing installations

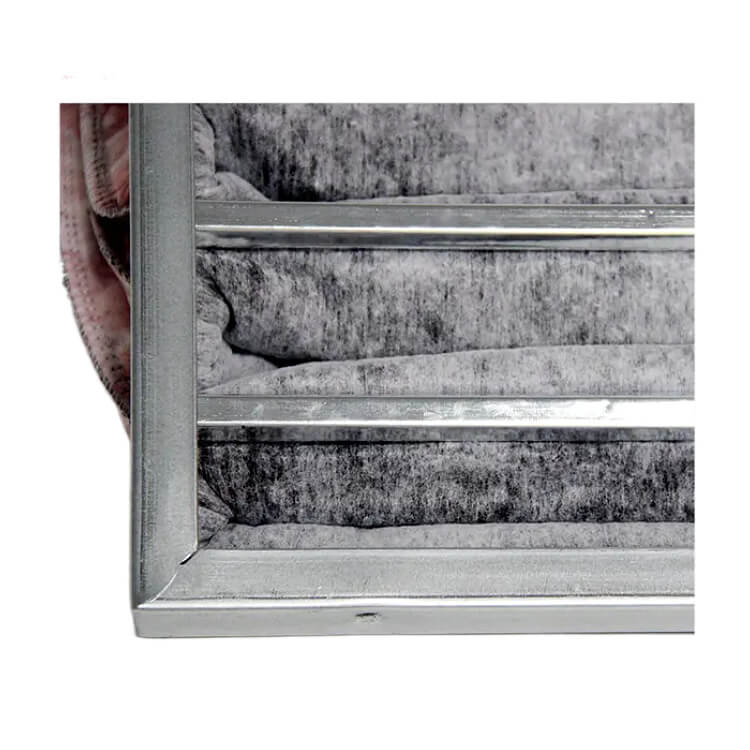

● Robust metal header frame
● Removal of solid and gaseous contaminants in one filter stage
Product Features of the Activated carbon bag filter City Flo
● The broad spectrum carbon operates with a Rapid Adsorption Dynamics (RAD) mechanism that is specifically designed to be highly efficient against the multiple chemicals that are typically present in low or moderate concentrations in city-centre buildings or other locations.
● The City-Flo filter provides particle filtration in classes F7 or F9 according to EN 779:2012. A high media area ensures high efficiency, long life and low pressure drop.
Technical parameters of the activated carbon bag filter
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model | Size(mm) | AirFlow(m³/h) | Initial Pressure(Pa) | Efficiency | Filtration Type |
| FT-HZX-06 | 295x295x381x3P | 600.0 | |||
| FT-HZX-10 | 495*295*381*5P | 1000.0 | |||
| FT-HZX-18 | 495*495*381*5P | 1800.0 | |||
| FT-HZX-12 | 595*295*381*6P | 1200.0 | |||
| FT-HZX-20 | 595*495*381*6P | 2000.0 | F5：55±20% | F5 | F5：white+activated carbon |
| FT-HZX-24 | 595*595*381*6P | 2400.0 | F6：65±20% | F6 | F6：green+activated carbon |
| FT-HZX-7.5 | 295*295*500*3P | 750.0 | F7：75±20% | F7 | F7：pink+activated carbon |
| FT-HZX-12 | 495*295*500*5P | 1200.0 | F8：85±20% | F8 | F8：yellow +activated carbon |
| FT-HZX-21 | 495*495*500*5P | 2100.0 | |||
| FT-HZX-15 | 595*295*500*6P | 1500.0 | |||
| FT-HZX-25 | 595*495*500*6P | 2500.0 | |||
| FT-HZX-30 | 595*595*500*6P | 3000.0 |
| Brand Name: | Fete Filter | Product Category: | Chemical Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Activated Carbon Bag Filter City Flo project with the right specs
Fete Filter supplies Activated Carbon Bag Filter City Flo for cleanroom, HVAC and industrial air filtration projects. Browse Chemical Filter...
Review Chemical Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Activated Carbon Bag Filter City Flo
Review Chemical Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Compare nearby Chemical Filter models
