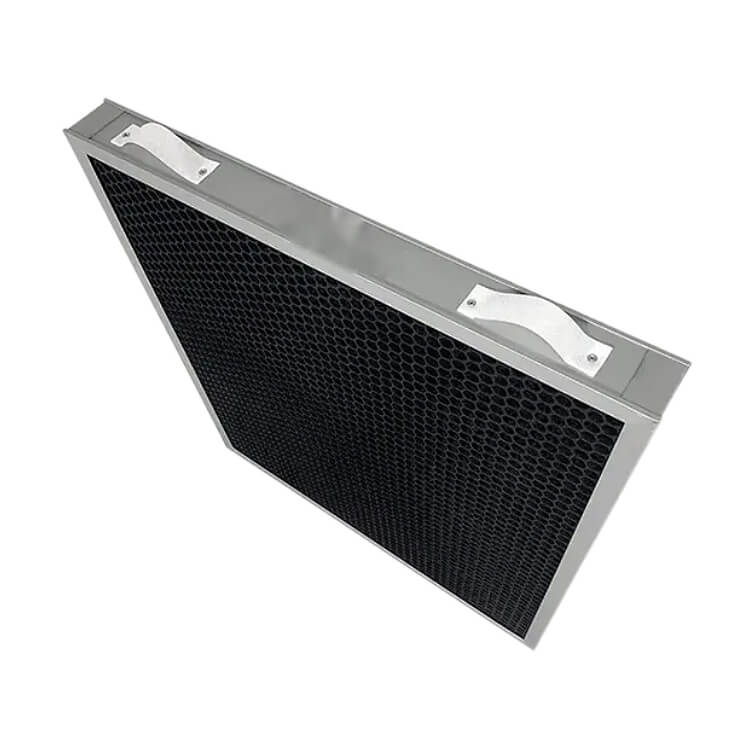

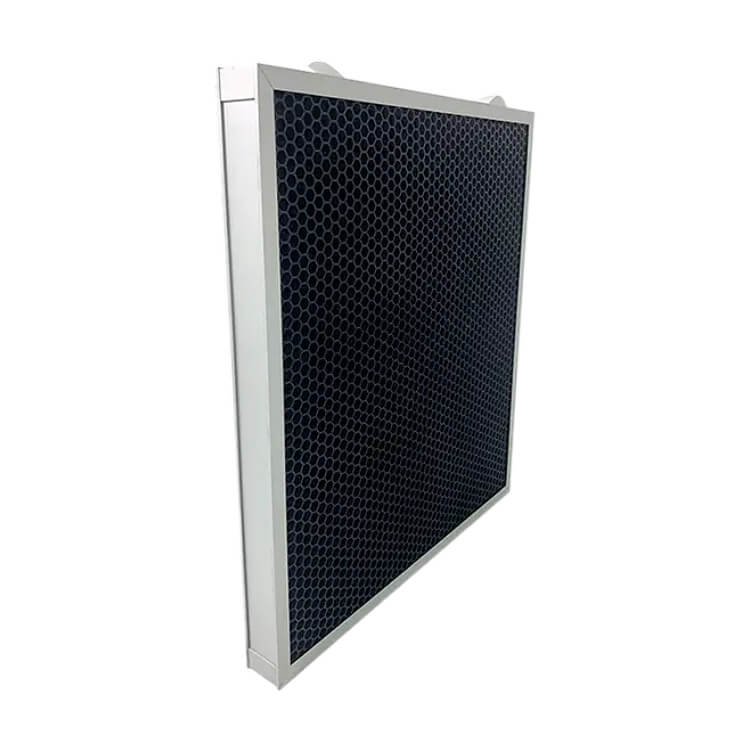

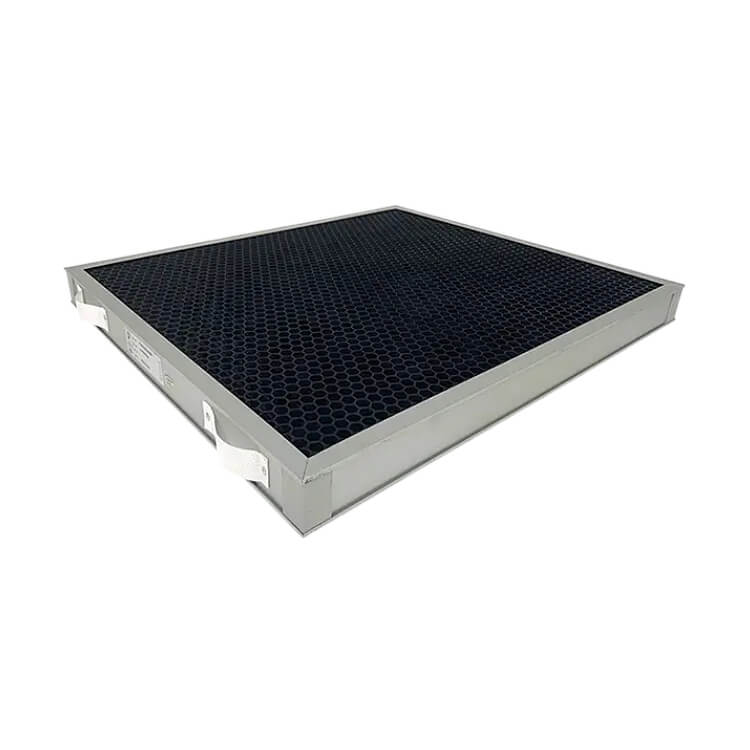

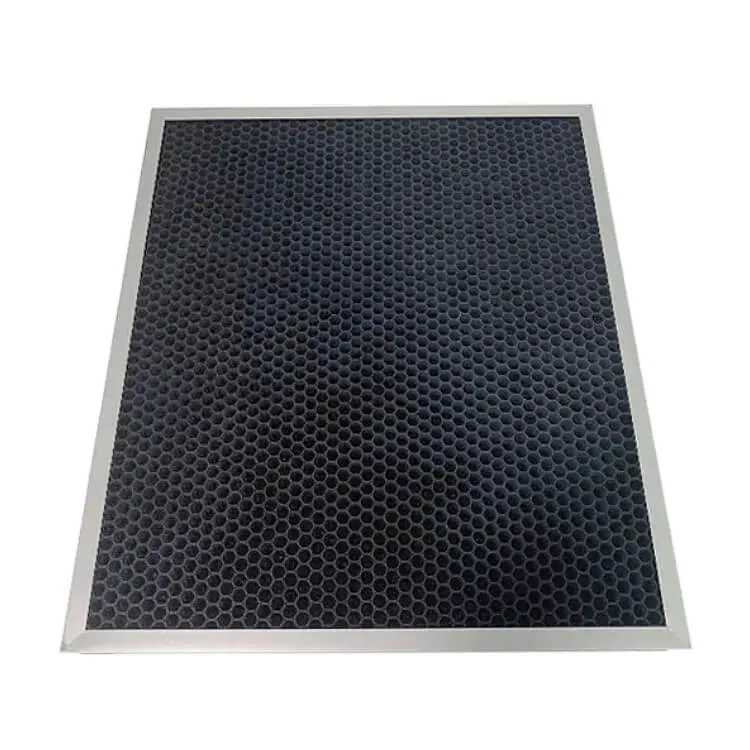

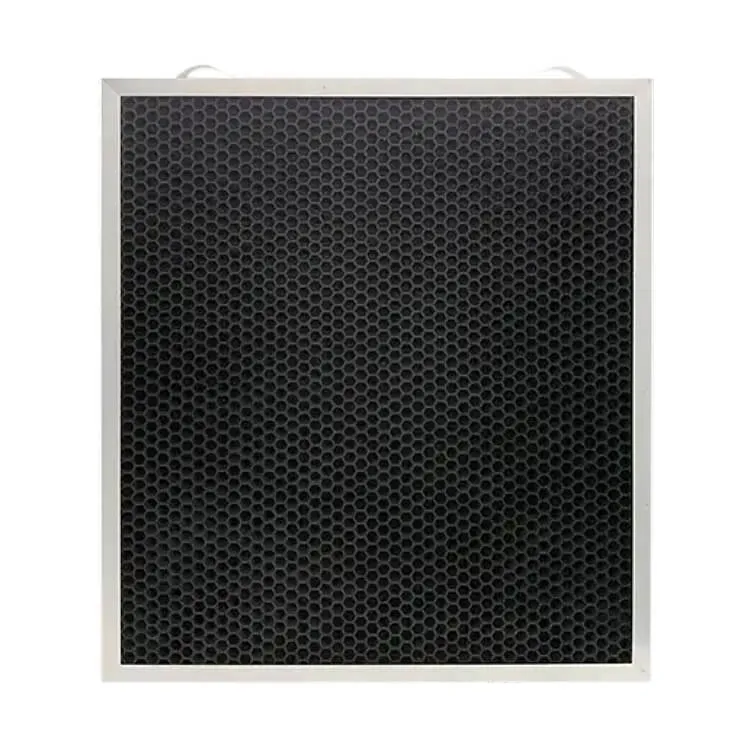

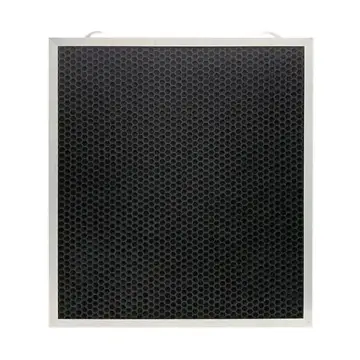

Plate Type Activated Carbon Filter
● Plate-type activated carbon filters use activated carbon to eliminate impurities and unpleasant odors from the air.
● They are air filtration systems employing activated carbon plates to eliminate pollutants and impurities from the air.
● These filters function by adsorbing pollutants onto activated carbon plate surfaces. As air flows through the filter, impurities are captured on the plates, allowing clean air to pass through.
● Plate-type activated carbon filters effectively remove various pollutants such as dust, smoke, odors, and volatile organic compounds (VOCs).
Customization Note: Non-standard customization is welcomed.
Product Features:
1. Effectively decomposes acidic, alkaline, VOC exhaust gases, foul odors, and other harmful gaseous substances impacting human health and the environment.
2. Offers low resistance, high air volume, and uniform wind speed distribution.
3. Compatible with central air conditioning and clean air conditioning supply systems.
4. Simple product structure facilitates easy replacement.
Composition Materials and Operating Conditions:
1. Outer frame options include aluminum alloy profile, galvanized sheet, plastic frame, or stainless steel plate.
2. Filter materials consist of imported or domestic chemical formula filter materials.
3. Utilizes environmentally friendly plastic honeycomb as the filling carrier.
4. Incorporates black nylon mesh as auxiliary material.
5. Sealing material includes environmentally friendly polyurethane AB sealant, ensuring sturdy product structure as per customer requirements.
Common product specifications, models, and other parameter tables of the Plate Type Activated Carbon Filter
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| No. | Size(mm) | Air flow(m³/h) | Initial pressure (Pa) | Adsorption efficiency | Media |
| FT-BH-10 | 495x495x46 | 1000.0 | |||
| FT-BH-12.5 | 495x595x46 | 1250.0 | |||
| FT-BH-15 | 595x595x46 | 1500.0 | |||
| FT-BH-14 | 495x495x60 | 1400.0 | ≤40±20% | ≥95% | Chemical formula filter material |
| FT-BH-16 | 495x595x60 | 1600.0 | |||
| FT-BH-20 | 595x595x60 | 2000.0 |
| Brand Name: | Fete Filter | Product Category: | Chemical Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Plate Type Activated Carbon Filter project with the right specs
Fete Filter supplies Plate Type Activated Carbon Filter for cleanroom, HVAC and industrial air filtration projects. Browse Chemical Filter...
Review Chemical Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Plate Type Activated Carbon Filter
Review Chemical Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Compare nearby Chemical Filter models
