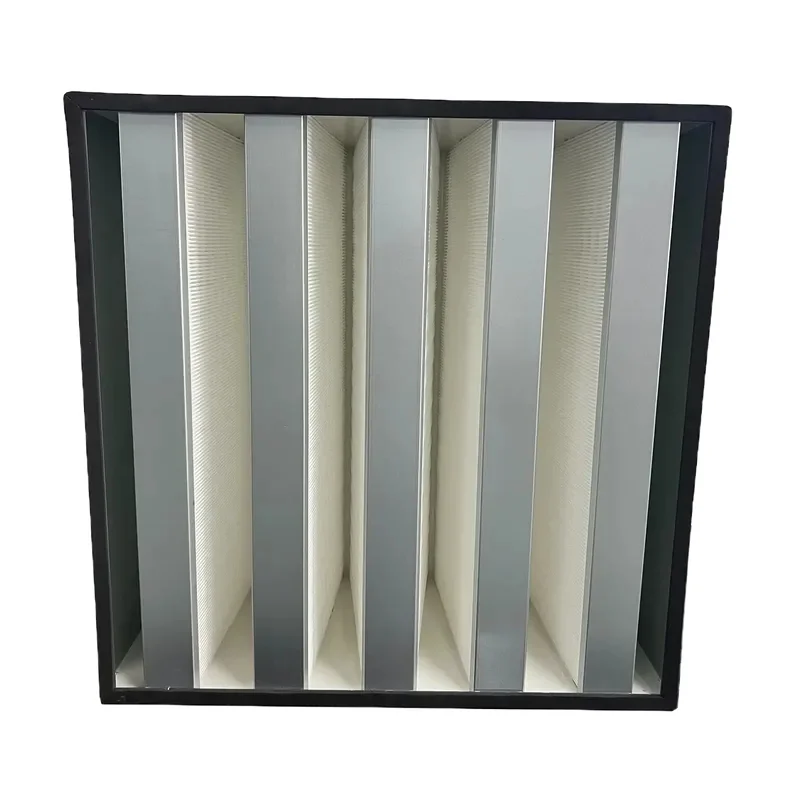

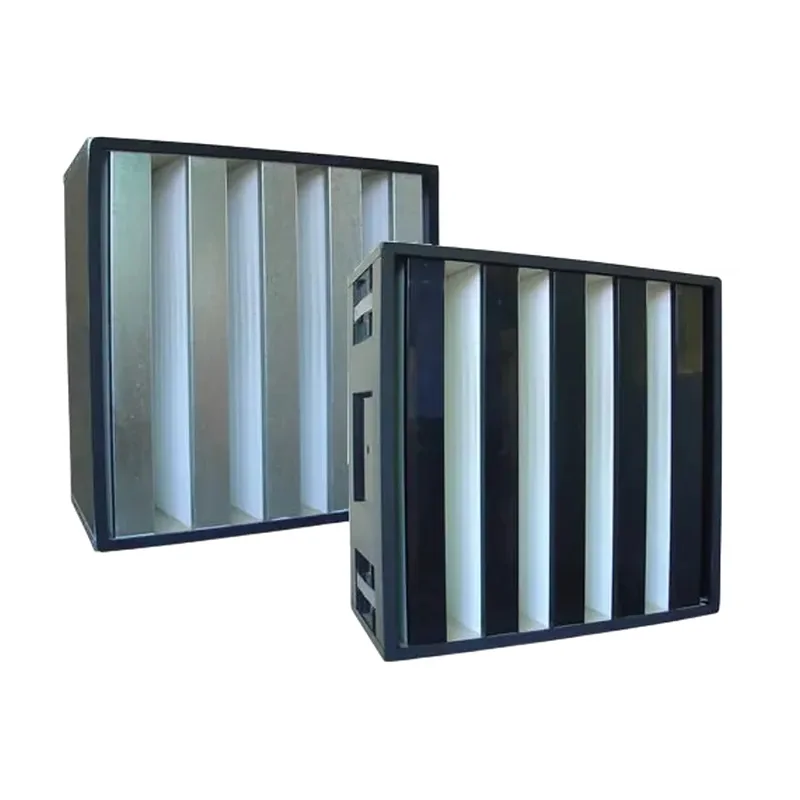

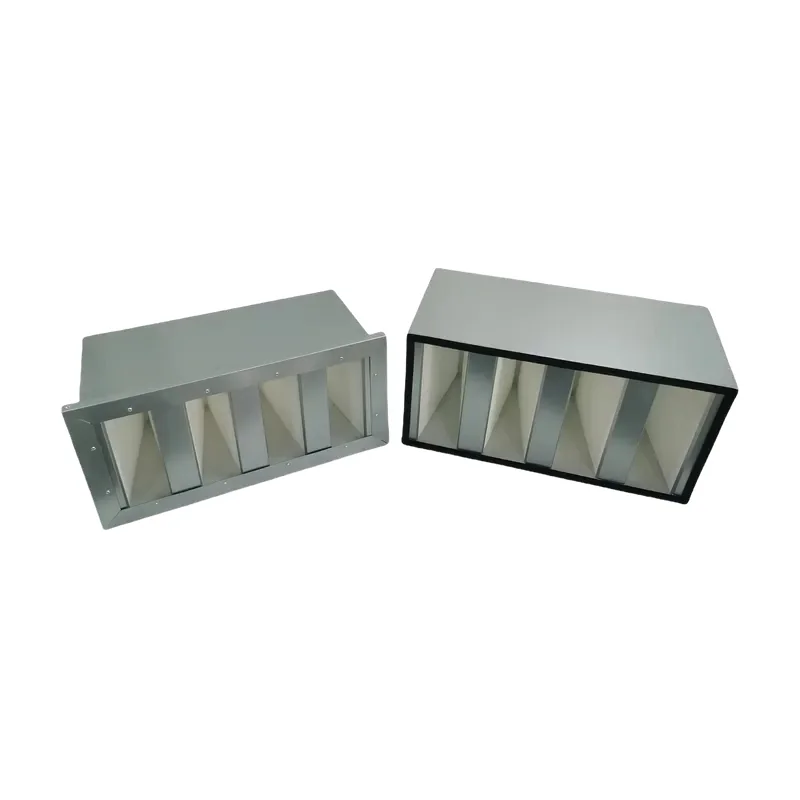

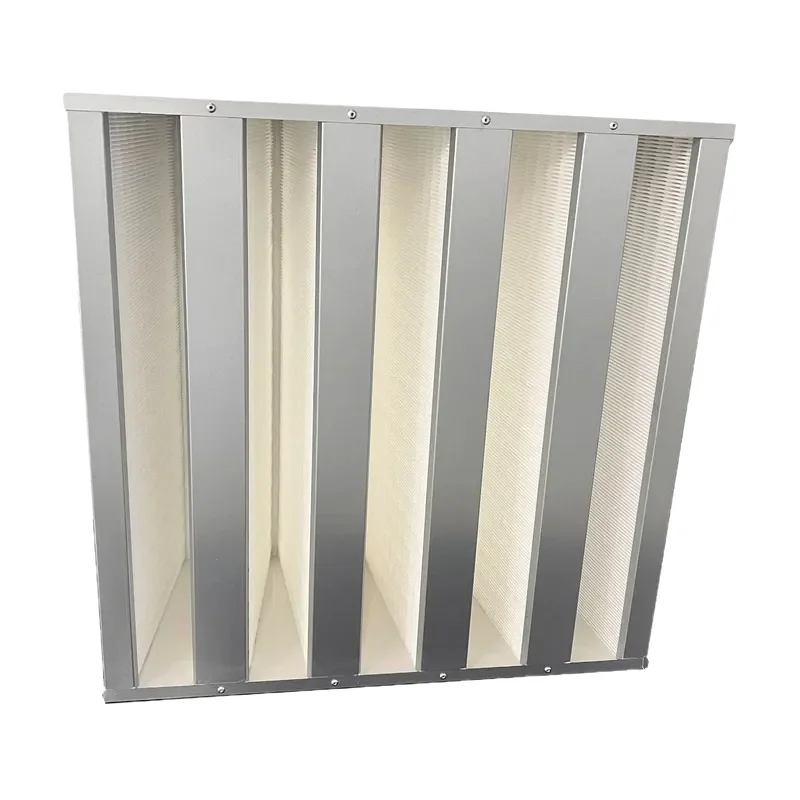

Big Flitration Area V Bank Air Filter In Metal Frame
Item NO. : FTV-A
Optional Thickness : 220 ~ 305mm
Separator : Hot melt bead
Gasket : Pu endless gasket / EVA / EPDM
Sealant : Pu two-component polyurethane glue
Frame : Aluminum / GI / SUS
Media : Micro glass fiber
Efficiency : H13 / H14
Max Temperature : 70℃
Max Humidity : 100%
General Description
Discover the exceptional performance of our innovative 'V' design air filters! By offering a larger surface area than traditional pocket filters, these advanced designs significantly enhance airflow while lowering pressure drop and extending HEPA filter lifespan. Our V bank filters are impressively effective, capturing 75% to 99% of 0.5 µm particles—perfect for creating a cleaner and healthier environment.
Built with a strong ABS plastic frame, and using mini-pleated glass fiber or polypropylene packs with hot melt glue separators, these filters come in a lightweight double-header frame that makes them not only efficient but also easy to handle.
Product Features
Thoroughly tested for quality assurance before shipping
Expertly designed to handle large air volumes effortlessly
Ample filtration area to foster high airflow and remarkable efficiency
Innovative V-type structure reduces structural resistance
User-friendly installation flange for quick, easy setup
Outstanding sealing capabilities to guarantee peak performance
Applications
Our V bank filters are perfect for spaces where cleanliness is paramount. Whether in hospital operating rooms, research labs, pharmaceutical plants, microelectronics workshops, optical fiber facilities, or food processing factories, these filters support the creation of safer, cleaner environments where precision and purity are essential. Embrace a healthier tomorrow with our reliable air filtration solutions!
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| KV-A-001 | 289*289*292 | 500.0 | 5.5 | 1.66 | 4.0 |
| KV-A-002 | 289*594*292 | 900.0 | 8.23 | 1.46 | 6.0 |
| KV-A-003 | 594*594*292 | 1800.0 | 16.5 | 1.42 | 6.0 |
| KV-A-004 | 289*594*292 | 1200.0 | 10.97 | 1.94 | 8.0 |
| KV-A-005 | 289*594*292 | 2450.0 | 21.9 | 1.93 | 8.0 |
| KV-A-006 | 594*594*292 | 1500.0 | 13.72 | 2.43 | 10.0 |
| KV-A-007 | 594*594*292 | 3000.0 | 27.48 | 2.36 | 10.0 |
| KV-A-008 | 610*610*292 | 3050.0 | 28.2 | 2.28 | 10.0 |
| KV-A-009 | 610*610*292 | 3650.0 | 33.84 | 2.72 | 12.0 |
| Brand Name: | Fete Filter | Product Category: | V-Bank Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Big Flitration Area V Bank Air Filter In Metal Frame project with the right specs
Fete Filter supplies Big Flitration Area V Bank Air Filter In Metal Frame for cleanroom, HVAC and industrial air filtration projects. Browse...
Review V-Bank Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Big Flitration Area V Bank Air Filter In Metal Frame
Review V-Bank Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
