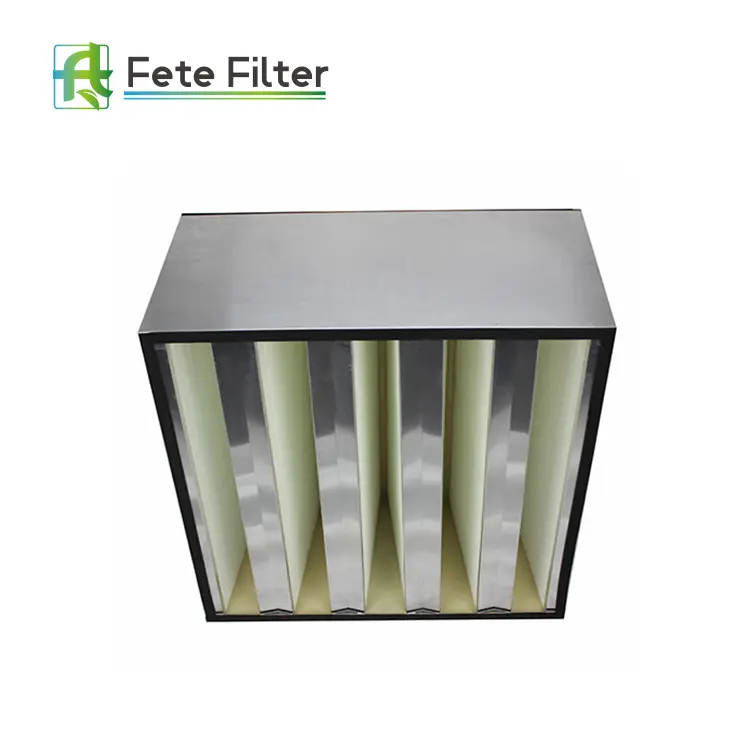

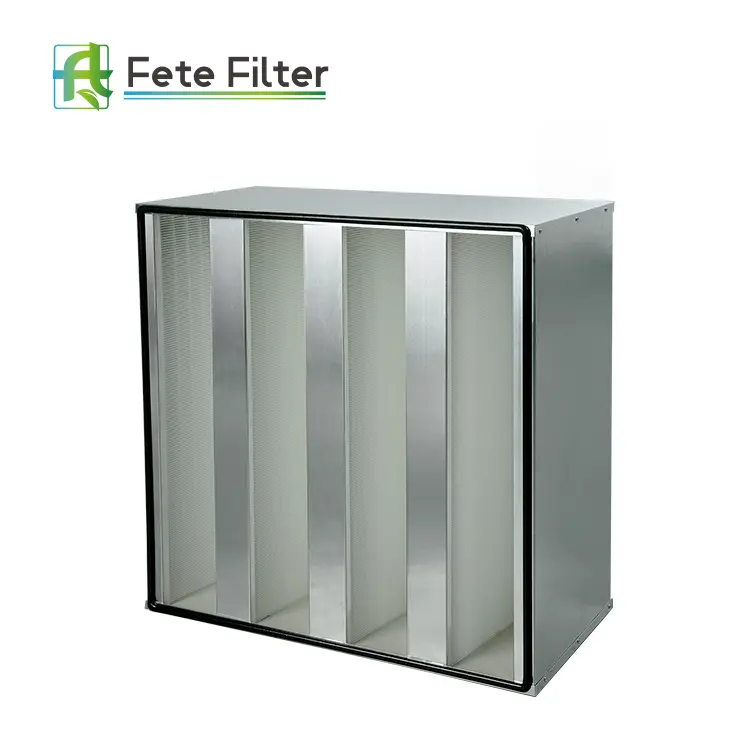

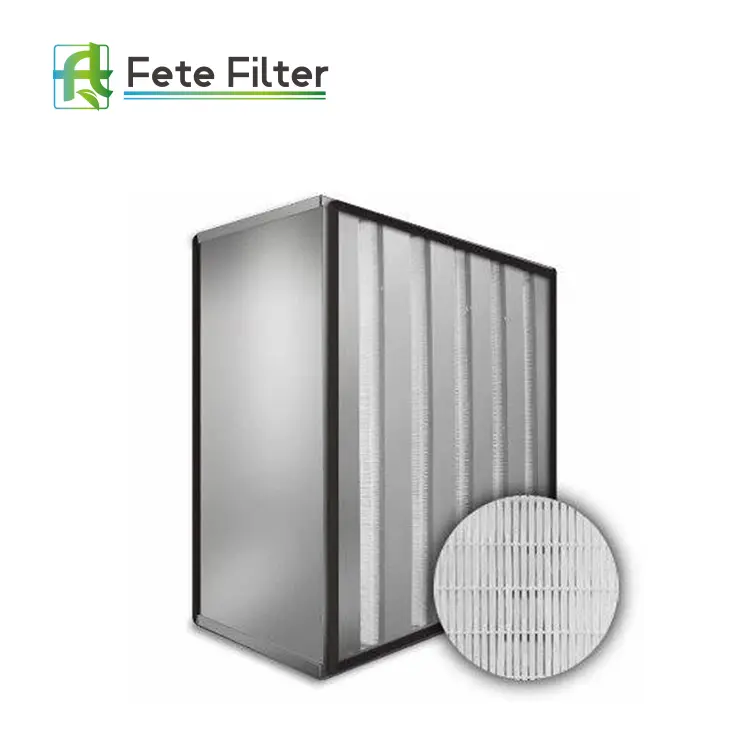

V-Bank Filter with Metal Frame
Efficiency: H13/H14
Separators: Hot Melt
Media: Glass Fiber
Sealant: Polyurethane
Frame: Gal. steel; Aluminum
Temperature: <70° C
Humidity: <100 % RH
Recommended final Pressure drop: < 600Pa
General Description
V-bank air filter can be used as final air filter in cleaning filtration system. It is applicable to air separation, purification of dust, In order to ensure cleanliness requirements system, extending use life.
Feature
1. The filtration material is the fiberglass or the polypropylene.
2. High efficiency, large air flow.
3. Low operation cost, convenient for installation.
4. Large dust capacity, no partition design.
Applications
Large air volume ventilation systems, pharmaceuticals, food, hospitals, clean rooms and other filtration systems. Can be used for the middle of the high efficiency filtration system or the front end of the ultra-efficient filtration system pre-filter.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| Model | Actual Size HxWxD(mm) | Air Flow (m³/h) | Initial Resistance （pa） | Efficiency En779 |
| VBM-001 | 287*592*292 | 1000.0 | 250.0 | H13/H14 |
| VBM-002 | 592*592*292 | 1500.0 | 250.0 | |
| VBM-003 | 610*610*292 | 3300.0 | 250.0 |
| Brand Name: | Fete Filter | Product Category: | V-Bank Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your V-Bank Filter with Metal Frame project with the right specs
Fete Filter supplies V-Bank Filter with Metal Frame for cleanroom, HVAC and industrial air filtration projects. Browse V-Bank Filter options,...
Review V-Bank Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for V-Bank Filter with Metal Frame
Review V-Bank Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
