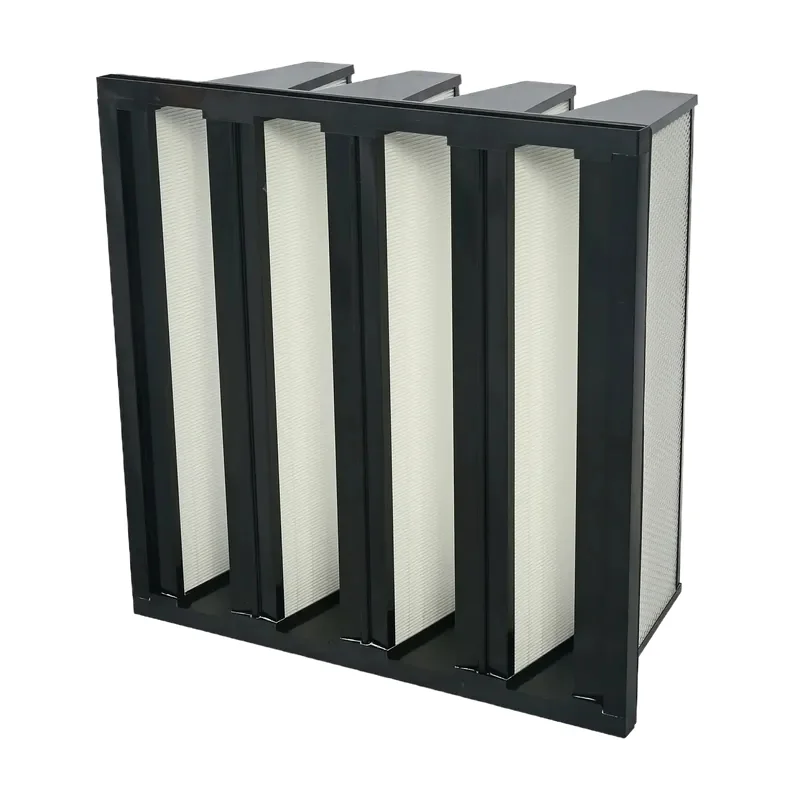

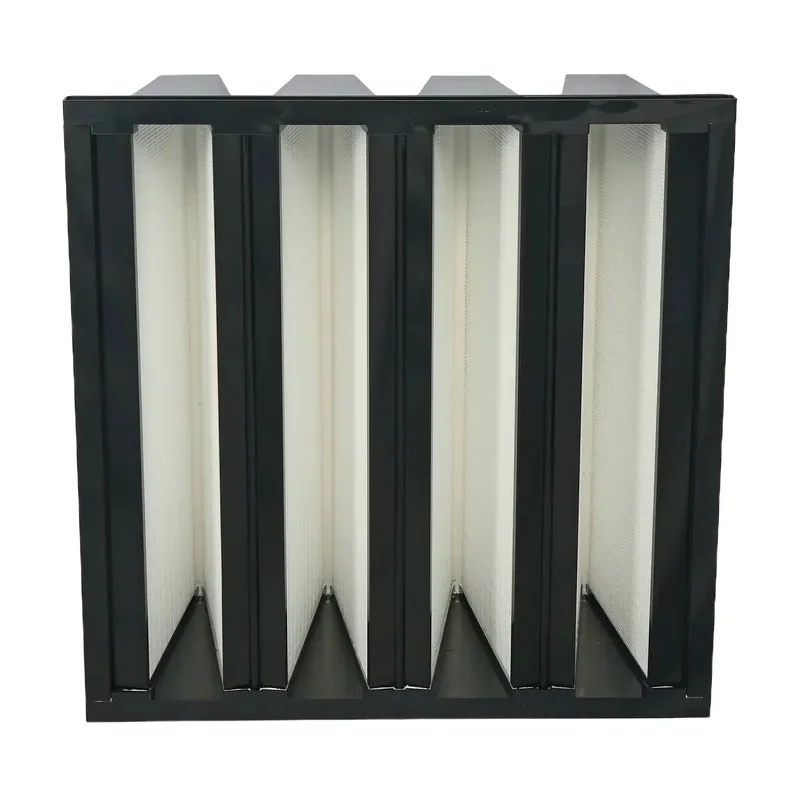

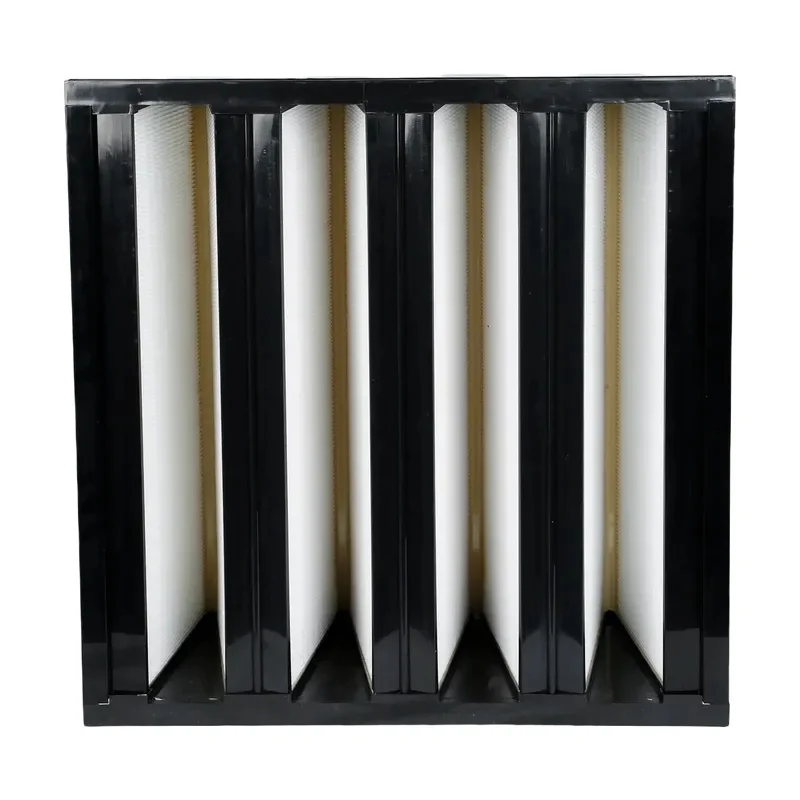

Medium Sub Hepa V Bank Filter In Plastic Frame
Item NO. : FTLC-FTV-B
Optional Thickness : 292 / 400mm
Separator : Hot melt bead
Gasket : EVA / EPDM
Sealant : Pu two-component polyurethane glue
Frame : Plastic frame
Media : Micron glass fiber
Efficiency : F6 / F7 / F8 / F9 / H10 / H11 / H12
Max Temperature : 70℃
Max Humidity : 100%
Product Features
100% tested before delivery
Good sealing properties
V-bank filters are available in various efficiency ratings, including MERV (Minimum Efficiency Reporting Value) and HEPA (High-Efficiency Particulate Air) ratings
Large surface area with a V-shaped configuration, allowing for high airflow capacity
Extended filter life compared to conventional panel filters, capable of holding more dust and contaminants before needing replacement, which reduces maintenance frequency and costs
Lower pressure drop designed to minimize resistance across the filter media while maintaining high filtration efficiency, helping to reduce energy consumption and optimize HVAC system performance
Applications
Suitable for environments with high cleanliness requirements, such as aviation, electronics, semiconductors, chip manufacturing, biological pharmaceuticals, hospitals, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| KV-B-001 | 287*287*292 | 750.0 | 4.58 | 2.53 | 4.0 |
| KV-B-002 | 490*287*292 | 1300.0 | 8.13 | 2.57 | 4.0 |
| KV-B-003 | 592*287*292 | 1600.0 | 9.91 | 2.62 | 4.0 |
| KV-B-004 | 287*490*292 | 1100.0 | 6.87 | 2.17 | 6.0 |
| KV-B-005 | 490*490*292 | 2000.0 | 12.2 | 2.31 | 6.0 |
| KV-B-006 | 592*490*292 | 2400.0 | 14.87 | 2.3 | 6.0 |
| KV-B-007 | 287*592*292 | 1650.0 | 9.16 | 2.7 | 8.0 |
| KV-B-008 | 490*592*292 | 2650.0 | 16.26 | 2.68 | 8.0 |
| KV-B-009 | 592*592*292 | 3400.0 | 19.83 | 2.69 | 8.0 |
| Brand Name: | Fete Filter | Product Category: | V-Bank Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Medium Sub Hepa V Bank Filter In Plastic Frame project with the right specs
Fete Filter supplies Medium Sub Hepa V Bank Filter In Plastic Frame for cleanroom, HVAC and industrial air filtration projects. Browse V-Bank...
Review V-Bank Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Medium Sub Hepa V Bank Filter In Plastic Frame
Review V-Bank Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
