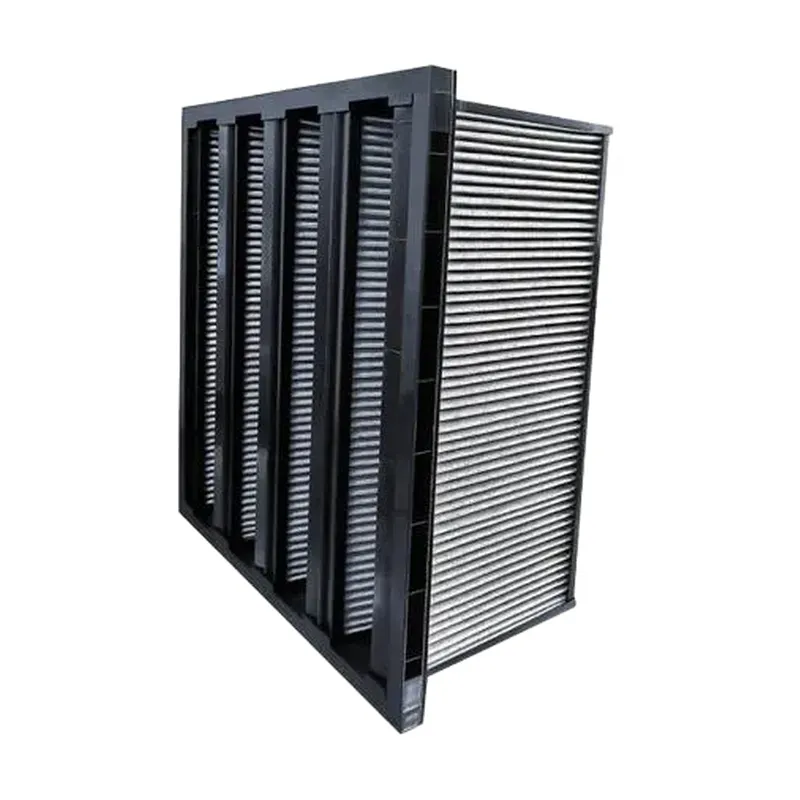

Odor Removal Activated Carbon V Bank W Type Filter
Item NO. : FT-FTV-B
Optional Thickness : 292 / 400mm
Sealant : Pu two-component polyurethane glue
Frame : Plastic / Galvanized steel / Aluminum sheet
Media : Activated carbon cotton with carbon granule / Carbon granule
Max Temperature : 70℃
Max Humidity : 100%
Odor removal rate : Customized
Product Features
1. Adsorbs a wide range of gases and volatile organic compounds (VOCs).
2. The V-bank design increases the filter surface area, resulting in higher adsorption capacity and longer filter life.
3. Effectively removes unpleasant odors, such as smoke, cooking smells, and pet odors.
4. Enhanced filtration performance, with the V-bank filter design maximizing contact time between air and activated carbon, improving overall filtration effectiveness.
5. Eco-friendly construction.
Applications
These filters are suitable for environments requiring high cleanliness, such as hospital operating rooms, research laboratories, pharmaceutical plants, micro-electronics workshops, optical fiber facilities, and food processing factories.
Model NO.
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| KV-B-001 | 287*287*292 | 750.0 | 4.58 | 2.53 | 2V |
| KV-B-003 | 592*287*292 | 1600.0 | 9.91 | 2.62 | 2V |
| KV-B-006 | 592*490*292 | 2400.0 | 14.87 | 2.3 | 4V |
| KV-B-007 | 284*592*292 | 1650.0 | 9.16 | 2.7 | 4V |
| KV-B-008 | 490*592*292 | 2650.0 | 16.26 | 2.68 | 4V |
| KV-B-009 | 592*592*292 | 3400.0 | 19.83 | 2.69 | 4V |
| Brand Name: | Fete Filter | Product Category: | V-Bank Filter |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Odor Removal Activated Carbon V Bank W Type Filter project with the right specs
Fete Filter supplies Odor Removal Activated Carbon V Bank W Type Filter for cleanroom, HVAC and industrial air filtration projects. Browse V-Bank...
Review V-Bank Filter requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Odor Removal Activated Carbon V Bank W Type Filter
Review V-Bank Filter requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Compare nearby V-Bank Filter models
