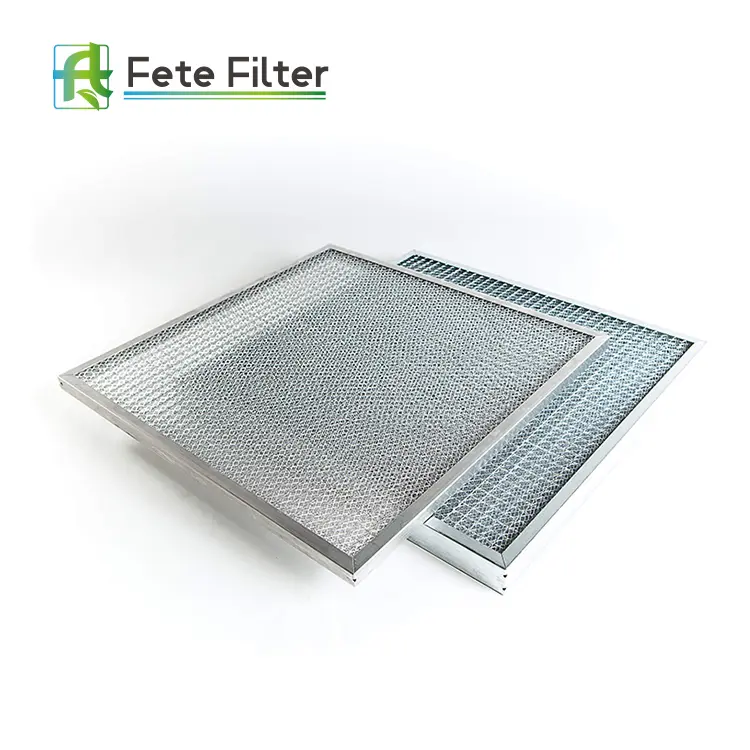

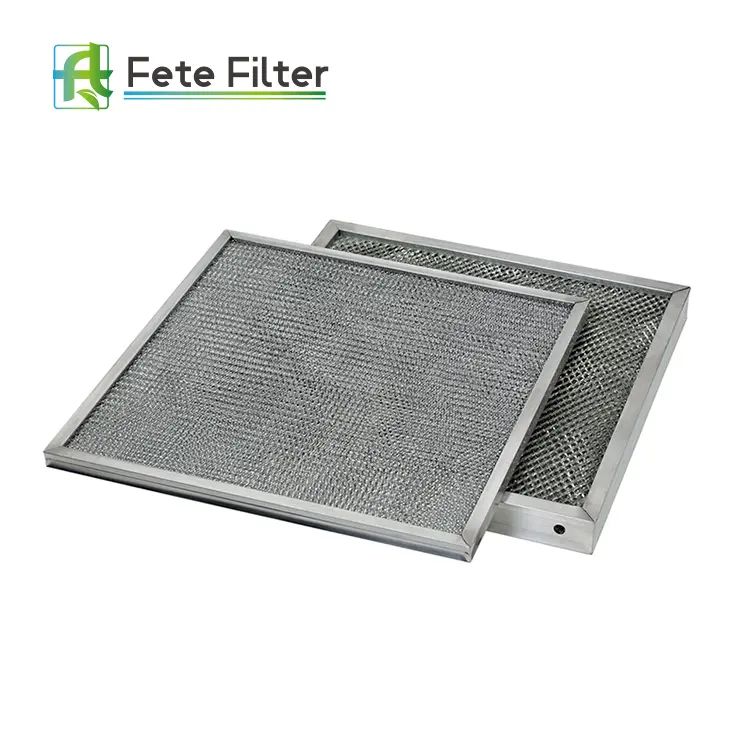

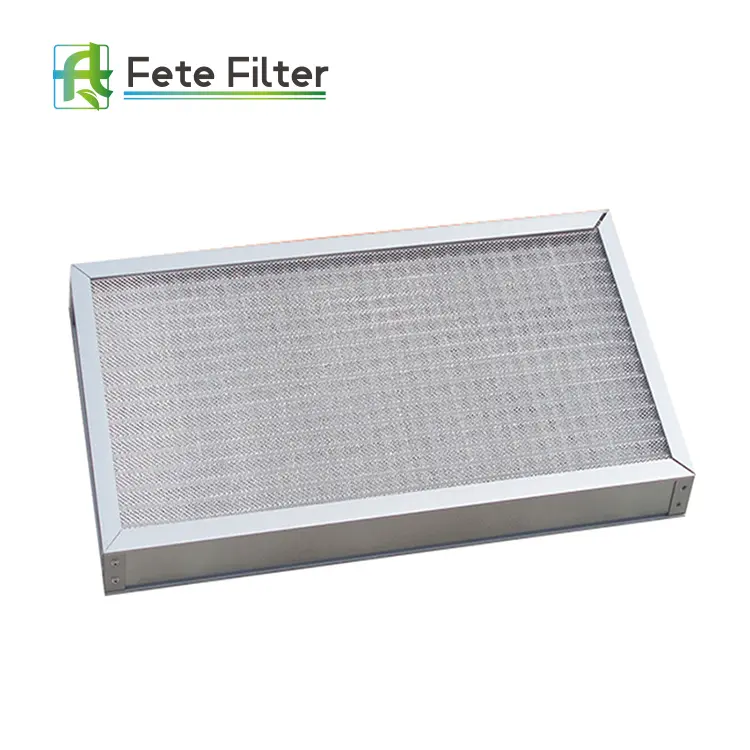

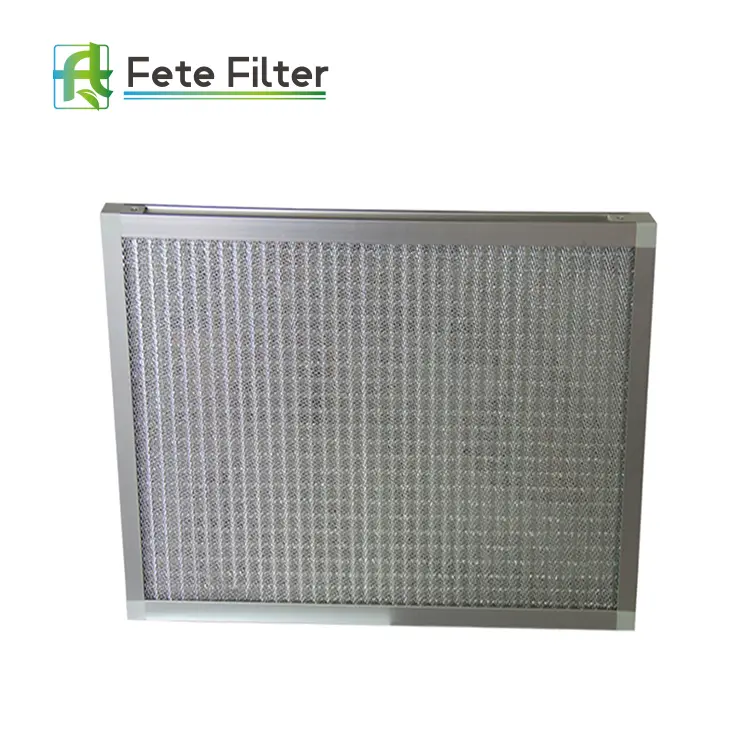

Metal Mesh Primary Air Filter
Efficiency: G1/G2/G3/G4
Media: Aluminum wave
Frame: Aluminum/GI/SUS
Max. Temperature: 300℃
Max. Humidity: 100%
General Description
Fete Metal mesh filters are made using an aluminum mesh pad comprised of multiple layers of expanded aluminum foil that is expanded in different widths and bonded together to make a pad. The layers, being expanded at different widths, create a baffling effect as the air passes through the filter providing better filtration of airborne particulates.
Feature
• Washable
• Large air flow and low initial resistance
• Long lifespan
• Combined by media with different pleat height to reduce media gap which used for high efficiency
• Suitable for acid-based and high humidity-resistance environment.
Applications
Used for central air-conditioning range hood and filtration, special ventilation of acid and alkali and high humidity resistance filtration.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| Model No. | Actual Size HxWxD(mm) | Air Flow (m³/h) | Media Area Flow (㎡) | Velocity (m/s) |
| MMF-001 | 287*287*10 | 800.0 | 0.17 | 2.54 |
| MMF-002 | 592*287*10 | 1600.0 | 0.34 | 2.54 |
| MMF-003 | 592*592*10 | 3200.0 | 0.7 | 2.54 |
| MMF-004 | 592*592*15 | 3200.0 | 1.05 | 2.54 |
| MMF-005 | 287*287*21 | 800.0 | 0.41 | 2.54 |
| MMF-006 | 592*287*21 | 1600.0 | 0.82 | 2.54 |
| MMF-007 | 592*592*21 | 3200.0 | 1.75 | 2.54 |
| MMF-008 | 592*490*46 | 2650.0 | 2.61 | 2.54 |
| MMF-009 | 592*287*50 | 1600.0 | 1.87 | 2.54 |
| MMF-010 | 592*592*50 | 3200.0 | 3.86 | 2.54 |
| Brand Name: | Fete Filter | Product Category: | Primary Filters |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Metal Mesh Primary Air Filter project with the right specs
Fete Filter supplies Metal Mesh Primary Air Filter for cleanroom, HVAC and industrial air filtration projects. Browse Primary Filters options,...
Review Primary Filters requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Metal Mesh Primary Air Filter
Review Primary Filters requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
What buyers usually confirm before ordering
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
