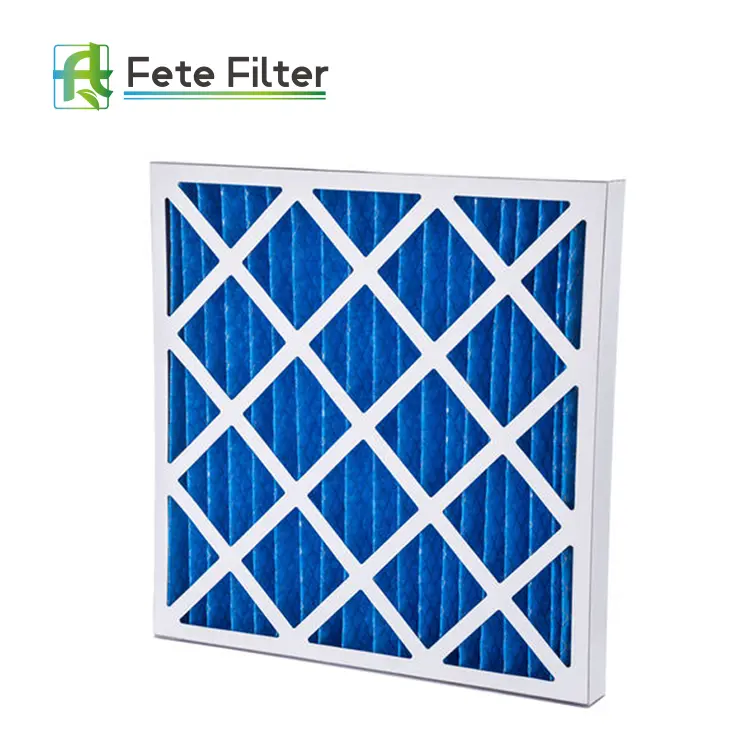

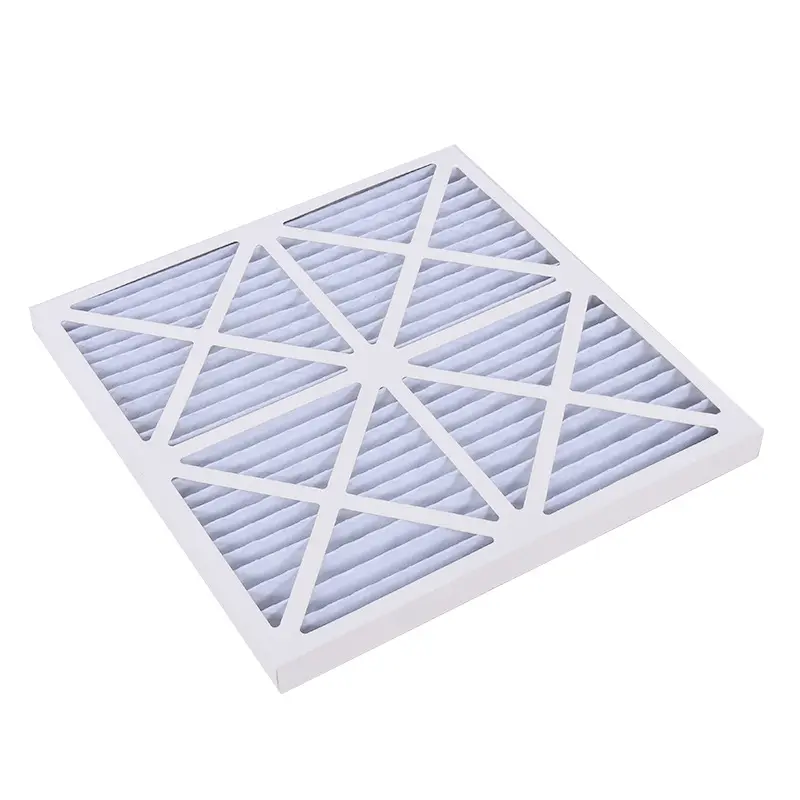

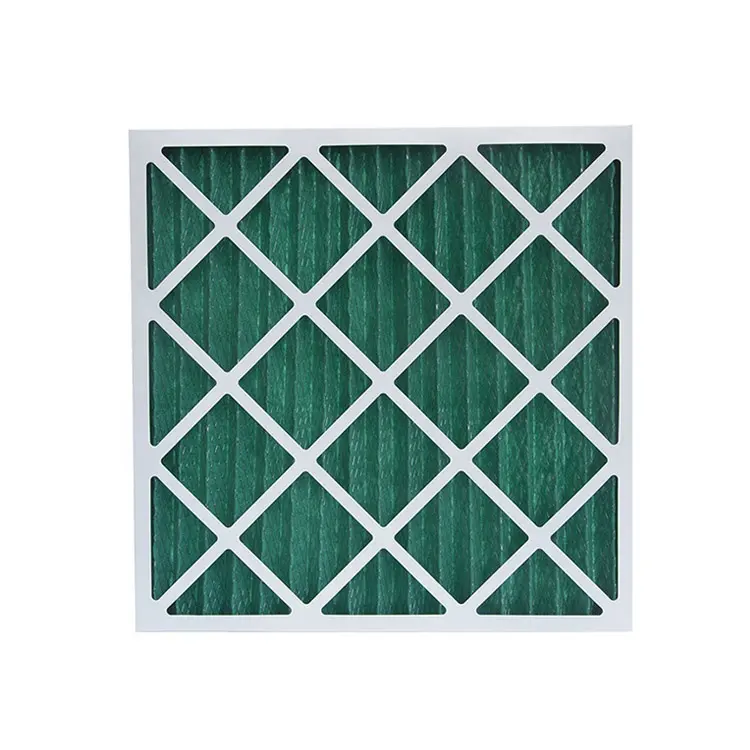

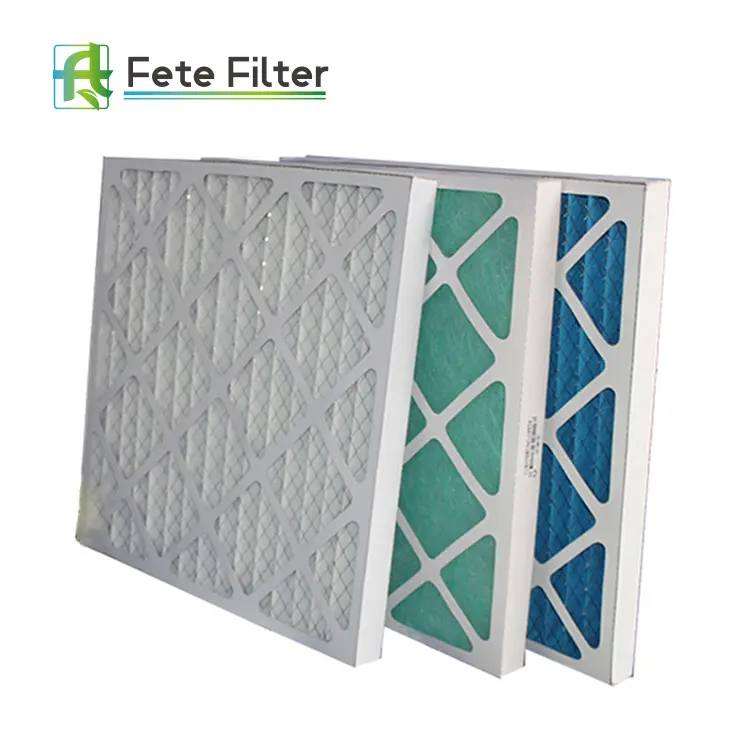

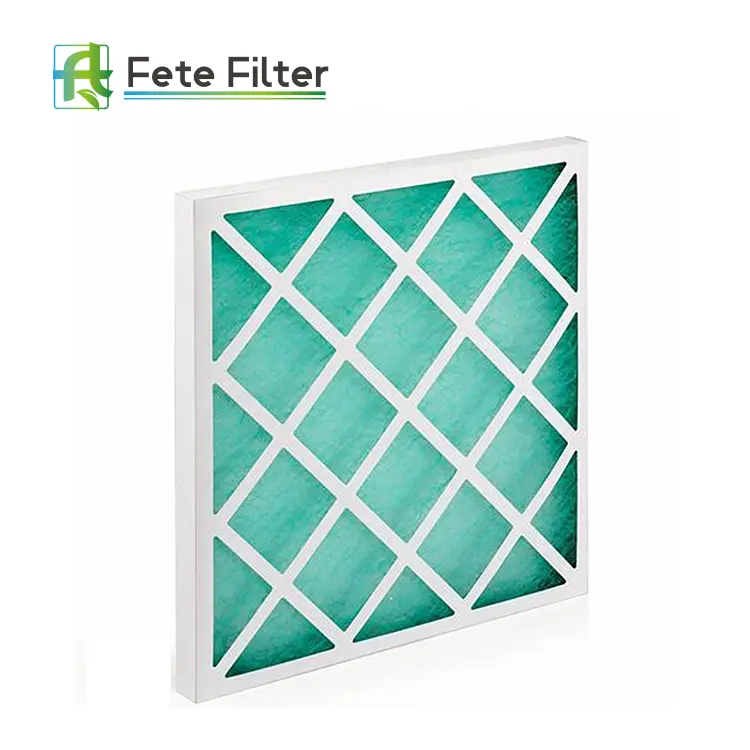

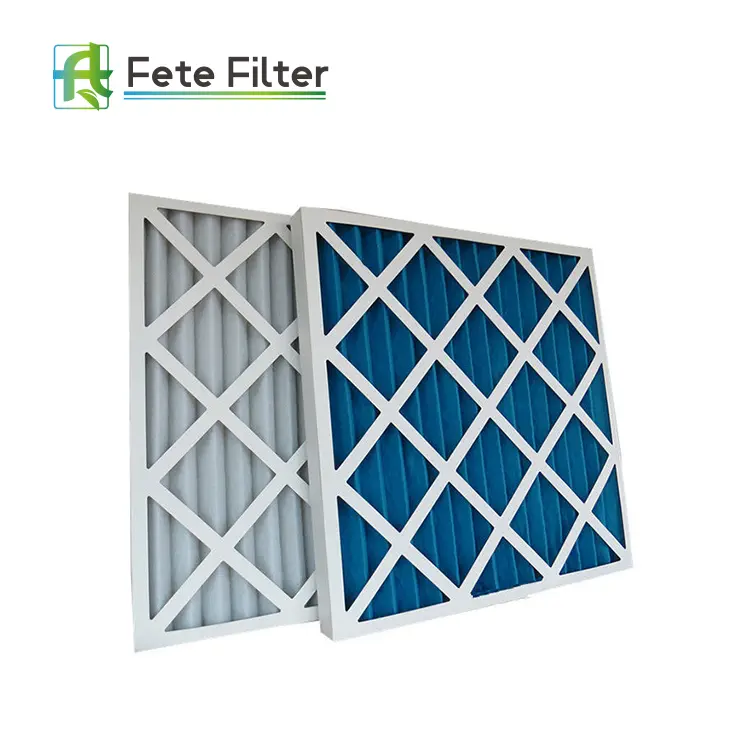

Cardboard Frame Primary Air Filter
Efficiency: G1/G2/G3/G4
Media: Synthetic fiber
Frame: Cardboard
Max. Temperature: 50℃ (except cardboard)
Max. Humidity: 100% (except cardboard)
General Description
The Pleated Panel Air Filter is a medium efficiency disposable air filter, suitable for ventilation and air conditioning systems which require a higher efficiency and greater dust holding capacity than can be achieved with glass or synthetic panels.
Feature
1.Disposable Panel Air Filter
2.Acts as a first stage filter offering G4 grade filtration
3.Rigid, Moisture Resistant Card Frame
4.Food Safe Air Filter
5.Extended Surface
6.Large Dust Holding Capacity
Applications
1. Clean rooms
2. Food processing industry.
3. Pharmaceutical Processing
4. Aerospace Engineering
5. Genetic & Biological research
6. Biohazard Atmosphere
7. Laminar Flow Workstations
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature | Column 7 |
|---|---|---|---|---|---|---|
| Model No. | Dimension WxHxD(mm) | Rated Air Flow (m³/h) | Media Area (㎡) | Initial Resistance (pa) | Finally resistance (pa) | Efficiency |
| CBFF-001 | 592x592x46 | 2600.0 | 0.97 | <25-45pa | 100-200pa | G4 |
| CBFF-002 | 592x490x46 | 2200.0 | 0.81 | <25-45pa | 100-200pa | G4 |
| CBFF-003 | 592x287x46 | 1300.0 | 0.48 | <25-45pa | 100-200pa | G4 |
| CBFF-004 | 490x592x46 | 2300.0 | 0.86 | <25-45pa | 100-200pa | G4 |
| CBFF-005 | 490x490x46 | 1900.0 | 0.71 | <25-45pa | 100-200pa | G4 |
| CBFF-006 | 287x592x46 | 1400.0 | 0.52 | <25-45pa | 100-200pa | G4 |
| Brand Name: | Fete Filter | Product Category: | Primary Filters |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
