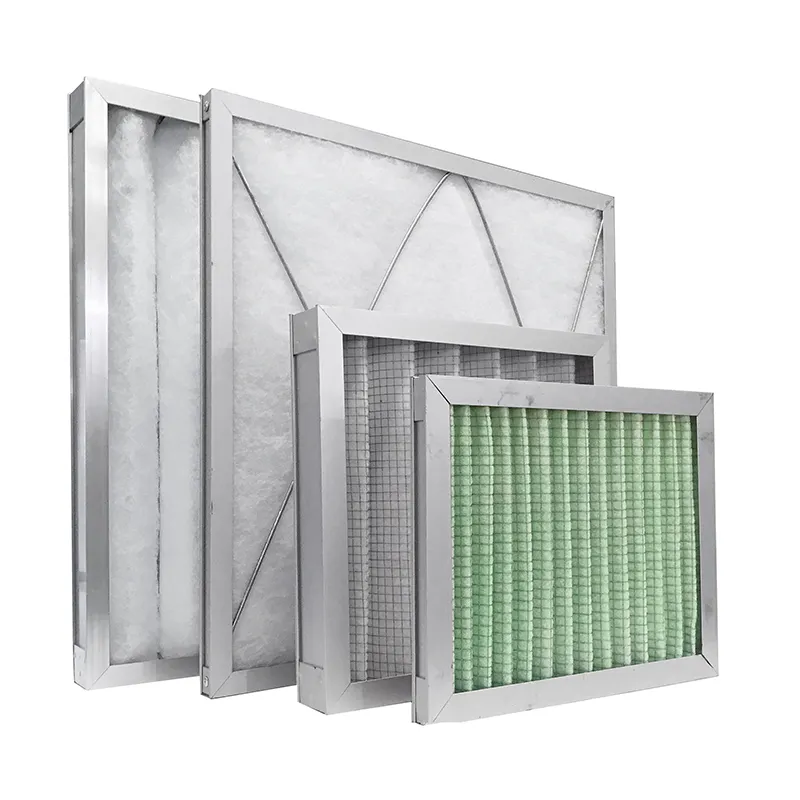

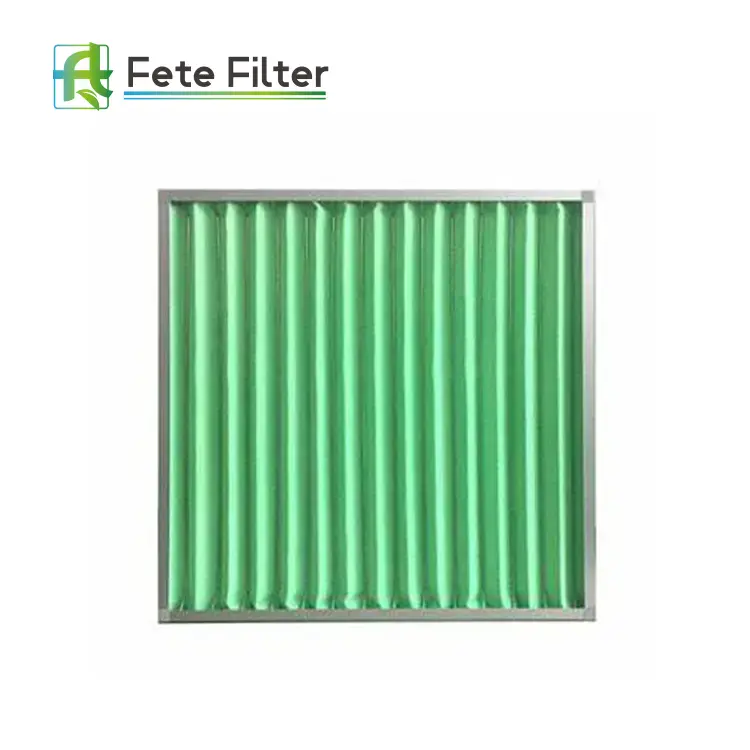

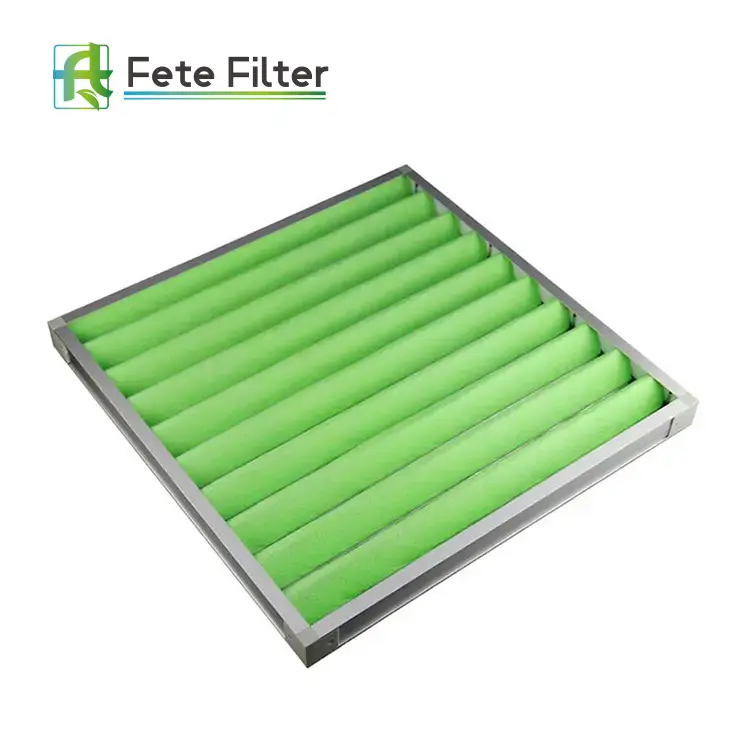

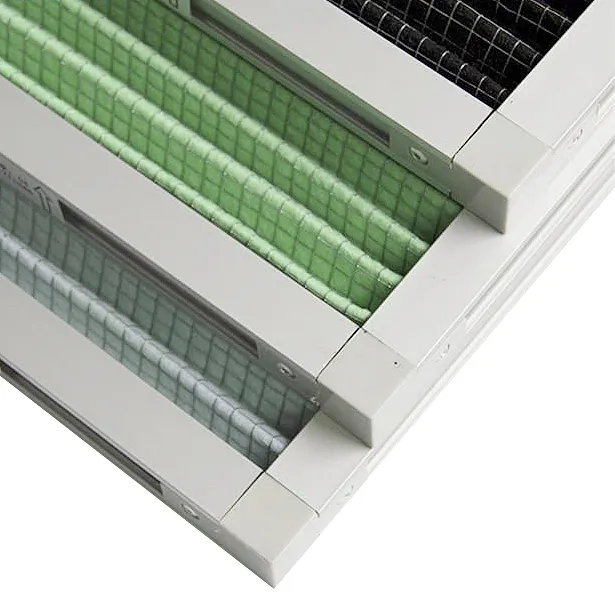

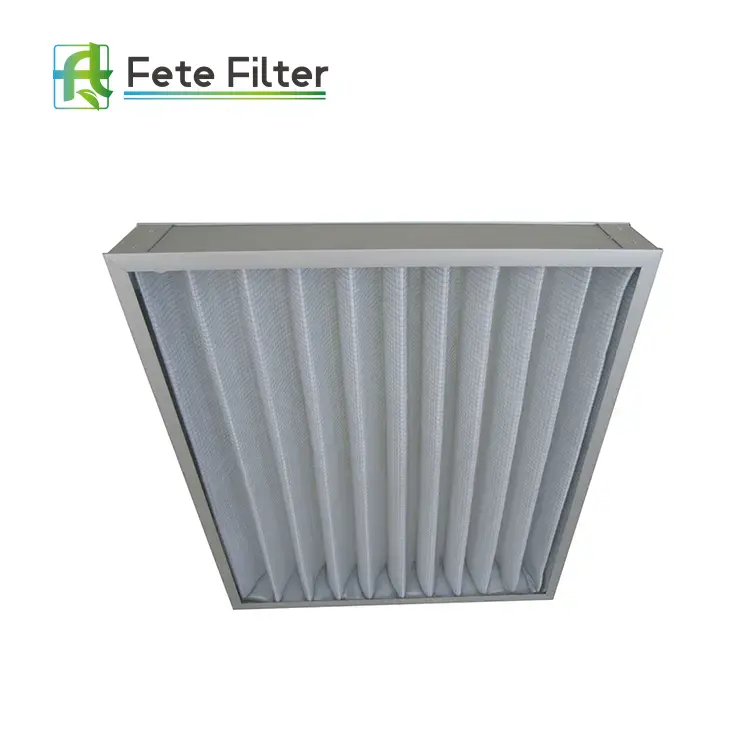

Pleated Air Filter
Efficiency: G1/G2/G3/G4
Media: Synthetic fiber
Frame: Aluminum/GI
Color： White/Green
Max. Temperature: 70℃
Max. Humidity: 100%
General Description

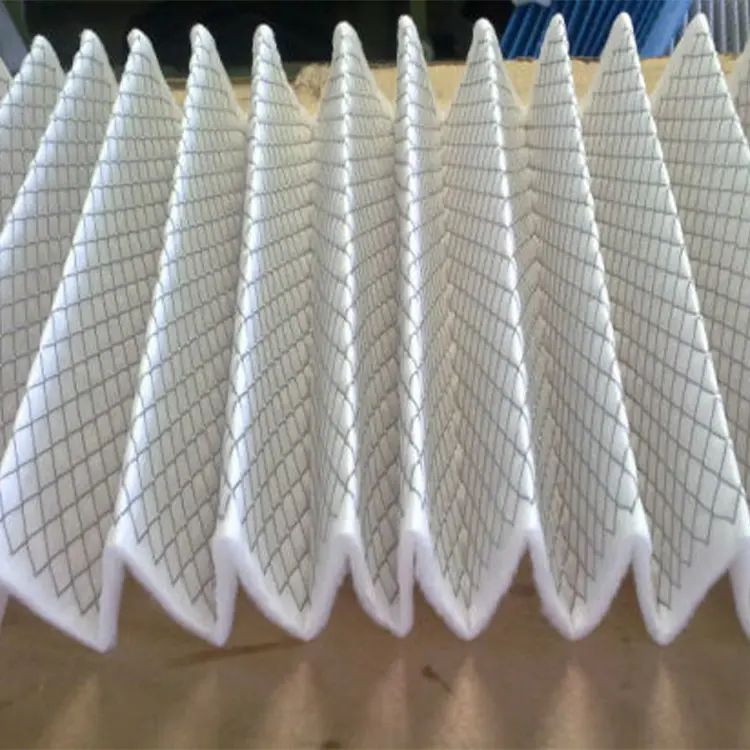

Fete pleated primary filter, gradient-type structure to provide maximum airflow filter area, which is five times of the plane-type filter, welded steel protect net using surface rust treatment, can be well fixed linear pleated structure, protect filter media not punctured and prevent media not deformed due to excessive pressure, to ensure that filter surface is fully utilized.
Can be common or moisture-proof paper frame, recycled or incinerated after use, non-pollution, environmental compliance.
Feature
• Simple structure and easy to replace filter media
• Large dust holding capacity
• Large air volume and low initial resistance
• Strong intensity
• interchangeable design
Applications
Air conditioning systems primary filtration, the Pre-filter in multi-stage filtration system
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model No. | Actual Size (W×H×D)mm | Air Flow (m³/h) | Intital Resistance (pa) | Final Resistance (pa) | Media area (m2) |
| PLAF-001 | 287×592×46 | 1400.0 | ≤25 | 100-200 | 1.23 |
| PLAF-002 | 287×592×46 | 1400.0 | ≤30 | 100-200 | 1.23 |
| PLAF-003 | 287×592×46 | 1400.0 | ≤40 | 100-200 | 1.23 |
| PLAF-004 | 287×592×46 | 1400.0 | ≤45 | 150-250 | 1.23 |
| PLAF-005 | 592×592×46 | 2800.0 | ≤25 | 100-200 | 1.23 |
| PLAF-006 | 592×592×46 | 2800.0 | ≤30 | 100-200 | 1.23 |
| PLAF-007 | 592×592×46 | 2800.0 | ≤40 | 100-200 | 1.23 |
| PLAF-008 | 592×592×46 | 2800.0 | ≤45 | 150-250 | 1.23 |
| Brand Name: | Fete Filter | Product Category: | Primary Filters |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Pleated Air Filter project with the right specs
Fete Filter supplies Pleated Air Filter for cleanroom, HVAC and industrial air filtration projects. Browse Primary Filters options, request...
Review Primary Filters requirements against the real installation before selecting this model.
Check these technical points
- Application and operating environment
- Required dimensions and installation space
- Performance target and acceptable resistance
- Materials, sealing method and maintenance access
Send these quote details
- Required quantity and target delivery date
- Drawing, existing model label or site photos
- Destination country and packaging requirements
- Any documentation or approval requirements
Selection guidance for Pleated Air Filter
Review Primary Filters requirements against the real installation before selecting this model.
Compare dimensions, construction, operating conditions and maintenance access with nearby models in the same category.
Send drawings, photos, quantity and destination details so the requested configuration can be checked before quotation.
