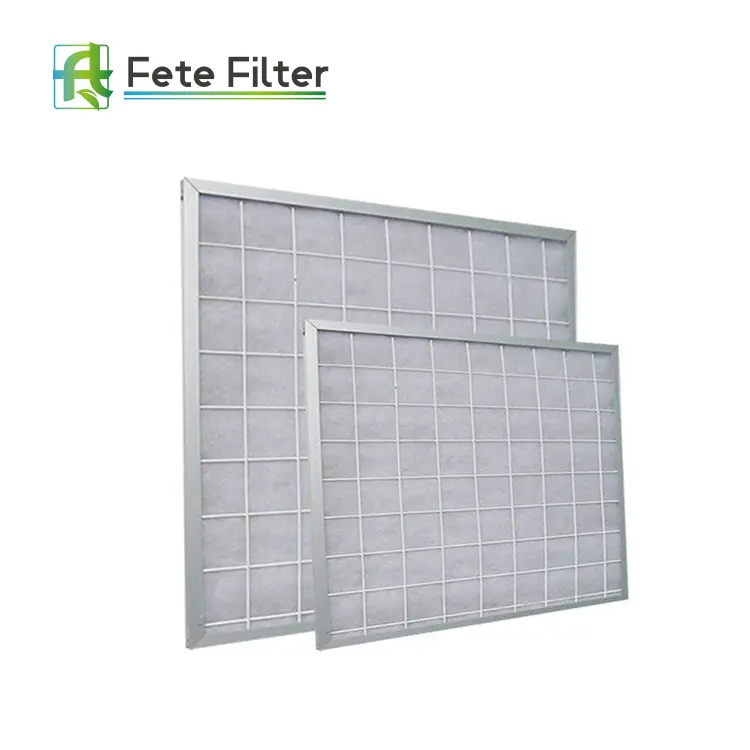

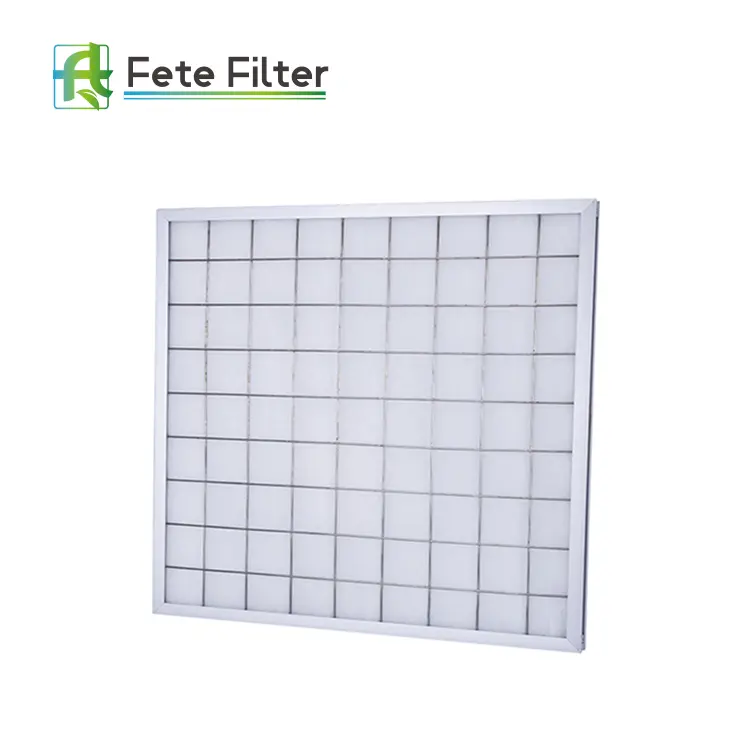

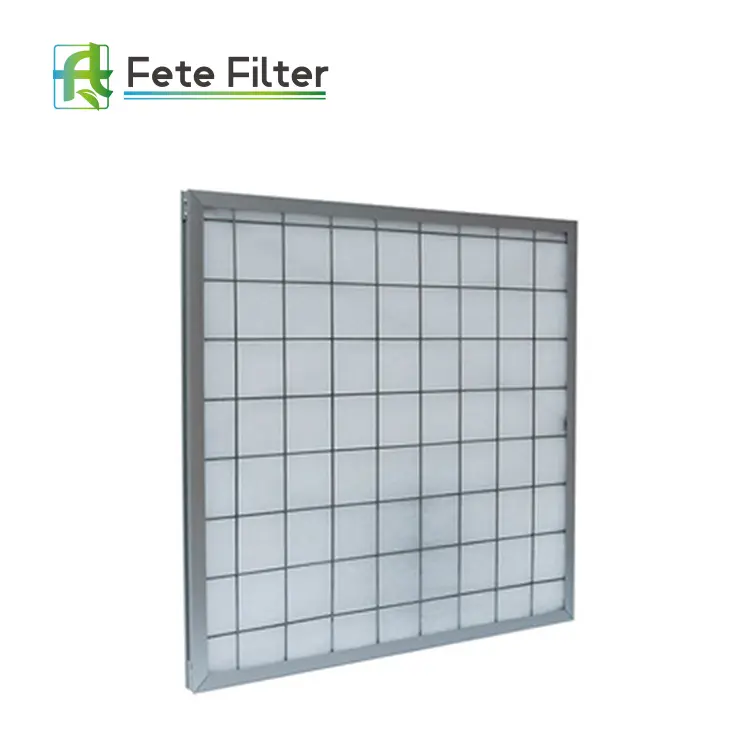

Panel Air Filter

Efficiency: G1/G2/G3/G4
Media: Synthetic fiber
Frame: Aluminum/GI
Face guard: Square mesh/Grid mesh
Max. Temperature: 50℃
Max. Humidity: 100%

Quick Quote

General Description

Fete Panel Air Filters are a low to medium efficiency air filter for the filtration of large particulates to an efficiency up to G4 to EN779:2012. Quality synthetic filtration media pads are supported within a moisture resistant Aluminum or GI frame.

Feature

• Simple structure and easy to replace filter media
• Large dust holding capacity
• Large air volume and low initial resistance
• Strong intensity

Applications

Used at restricted environment and large air volume environment. Application for pre-filter of air conditioning systems, pre-filter of the multi-stage filtration system.

Technology Parameters

Model No. Actual Size HxWxD(mm) Air Flow (m³/h) Media Area Flow (㎡) Velocity (m/s) Efficiency
PAF-001 594*289*10 1200.0 0.19 1.5 G1-G2
PAF-002 594*492*10 2100.0 0.31 1.5 G1-G2
PAF-003 594*594*10 2500.0 0.37 1.5 G1-G2
PAF-004 594*289*15 1200.0 0.19 2.0 G1-G2
PAF-005 594*492*15 2100.0 0.31 2.0 G1-G2
PAF-006 594*594*15 2500.0 0.37 2.0 G1-G2
PAF-007 594*289*21 1550.0 0.19 2.54 G1-G2
PAF-008 594*492*21 2650.0 0.31 2.54 G1-G2
PAF-009 594*594*21 3250.0 0.37 2.54 G1-G2
