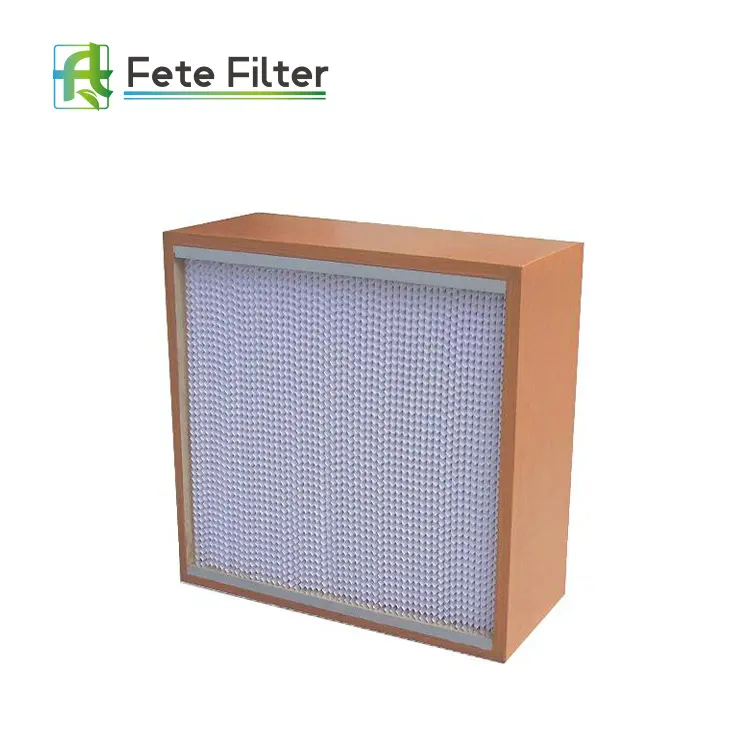

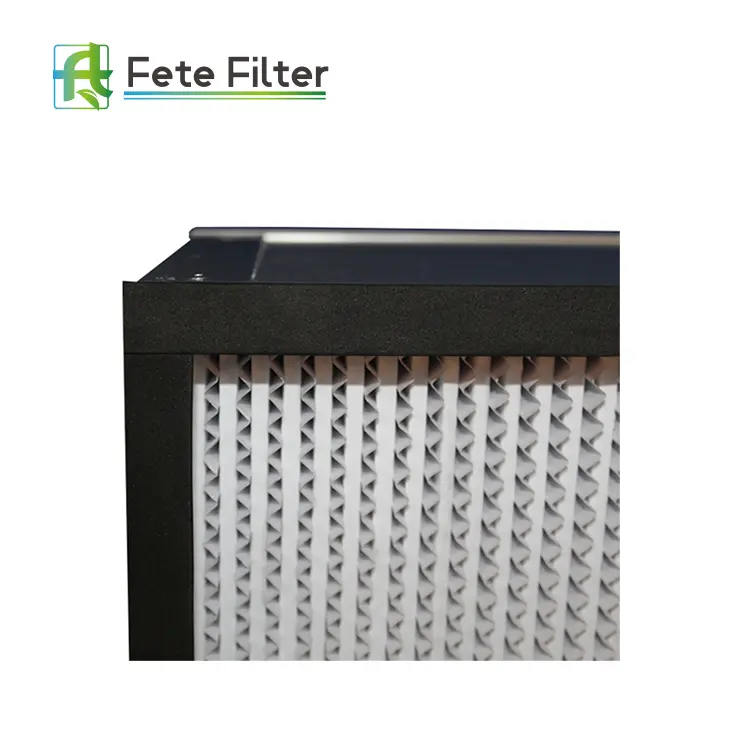

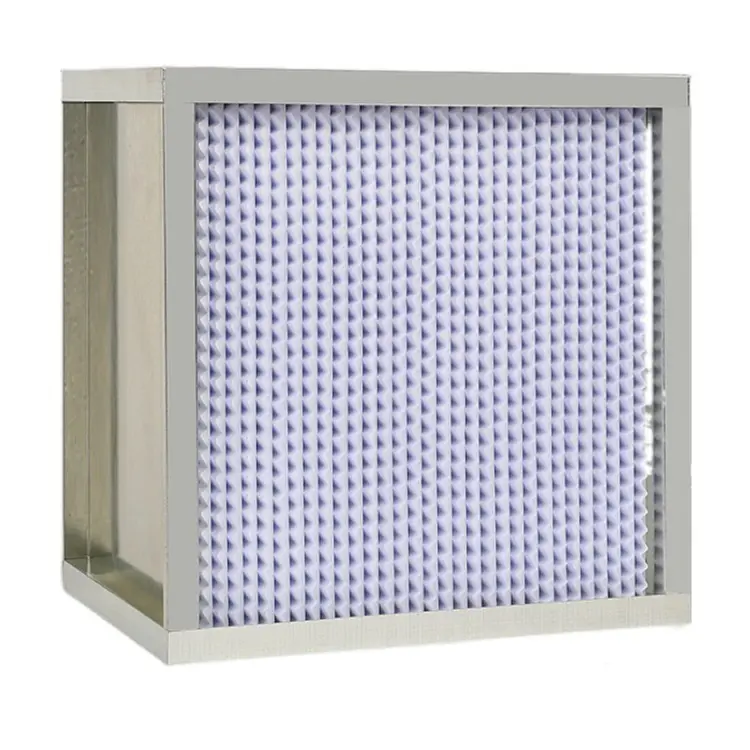

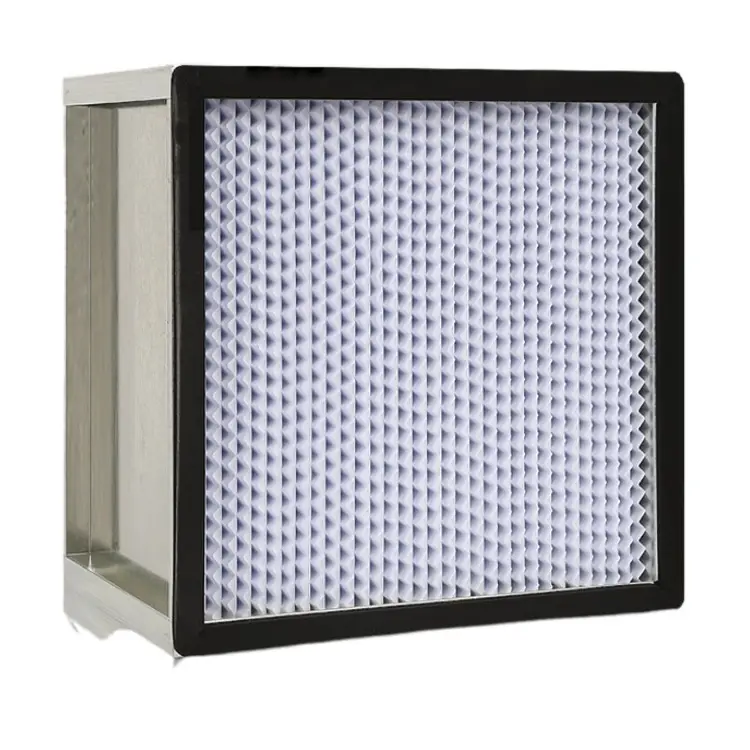

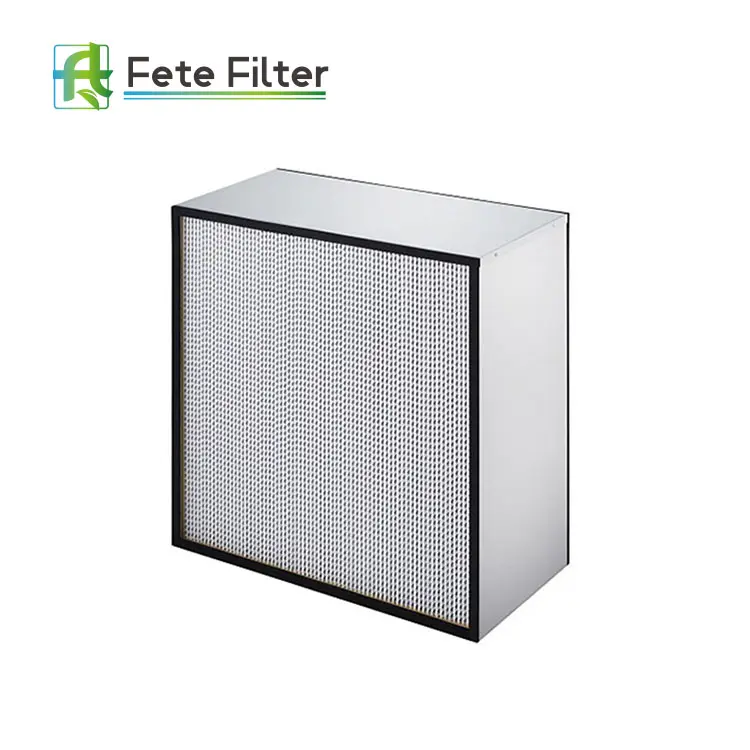

Deep pleated HEPA Filter
Efficiency: F5/F6/F7/F8/F9/H10
Media:Micro glass fiber
Frame:Aluminum / GI / SUS /MDF
Sealant: PU
Gasket:PU/EVA/EPDM
Separator: paper / aluminum foil
Optional thickness:80~292mm
Max Temperature:70℃~150℃
Max Humidity:100%
General Description
Fete Medium Efficiency Deep-pleated Filter(Medium/HEPA) filters are one kind of HEPA filters in our factory, they are the most reliable HEPA filters, they can provide large air flow rate and keep low resistance, at the same time, double metal mesh grille protect filter media from damage during transportation or installation.
Feature
Low resistance Super high fficiency 100%factory inspection Shorten pleat distance forincreasing air flow in order to meet different customers' demand.
Applications
Commercial Buildings Data Centers Food and Beverage Healthcare Microelectronics Pharmaceutical Industrial
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| Model | Actual Size HxWxD(mm) | Air Flow (m³/h) | Media Area Flow (㎡) | Velocity (m/s) |
| DPF-001 | 320*320*150 | 400.0 | 2.59 | 1.09 |
| DPF-002 | 484*484*150 | 950.0 | 6.0 | 1.13 |
| DPF-003 | 630*630*150 | 1600.0 | 9.59 | 1.12 |
| DPF-004 | 610*1220*150 | 3000.0 | 19.17 | 1.12 |
| DPF-005 | 320*320*220 | 650.0 | 4.08 | 1.76 |
| DPF-006 | 484*484*220 | 1500.0 | 9.46 | 1.78 |
| DPF-007 | 630*630*220 | 2500.0 | 16.12 | 1.75 |
| DPF-008 | 287*592*292 | 1500.0 | 9.59 | 2.45 |
| DPF-009 | 592*592*292 | 3000.0 | 20.01 | 2.38 |
| DPF-010 | 305*610*292 | 1600.0 | 10.52 | 2.39 |
| DPF-011 | 610*610*292 | 3200.0 | 21.25 | 2.39 |
| Brand Name: | Fete Filter | Certification: | ISO9001,CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Customized design: | available |
What are your strengths?
Ans. Our strengths lie in our expertise in design and manufacturing.
What is your estimated delivery time?
Ans. The delivery time varies depending on the specific product. Typically, it ranges from 10 to 40 working days.
What are your primary product offerings?
Ans. Our primary product offerings include industrial heat exchangers, pressure vessel, air dryer.
How can I get in touch with you?
Ans. We are available 24/7 through TradeManager for immediate assistance. Alternatively, you can contact us via email, WhatsApp, Skype, or WeChat. Select one of our products and message us, and we will promptly respond.
What are your payment terms?
Ans. Our payment terms require a 50% TT deposit in advance, with the remaining 50% TT balance due before delivery. We also offer the option of utilizing Alibaba Trade Assurance Service. We welcome any additional suggestions or inquiries regarding payment methods.
Feel free to Ask questions
Plan your Deep pleated HEPA Filter project with the right specs
Fete Filter supplies Deep pleated HEPA Filter for cleanroom, HVAC and industrial air filtration projects. Browse Hepa Filters options, request...
Start with the basic job data. Check airflow, filter grade, size, frame, seal, and site condition first. This short review makes comparison easier and helps buyers request the right quote faster.
Check these technical points
- Airflow and pressure drop target
- Filter class, media, and frame type
- Size, seal position, and install direction
- Temperature, humidity, and service life need
Send these quote details
- Length, width, depth, and quantity
- Drawing, old label, or sample photo
- Destination country and package request
- OEM mark, lead time, and delivery plan
Selection guidance for Deep pleated HEPA Filter
Deep pleated HEPA Filter is produced as part of our Hepa Filters range for buyers who need steady filtration performance, repeatable production quality, and practical export support. When reviewing this model for a new project or a replacement order, it helps to confirm the target airflow, efficiency level, frame depth, sealing direction, and the real operating environment before final approval.
Many projects compare Deep pleated HEPA Filter with nearby Hepa Filters options by looking at pressure drop, service life, media structure, moisture resistance, installation space, and change-out frequency. This comparison is useful because the correct filter choice is not only about efficiency on paper, but also about how the unit behaves inside the full air handling system over time.
For OEM and maintenance purchasing, our team can review drawings, old labels, sample photos, and site conditions to match Deep pleated HEPA Filter with the required size and construction. We also support discussion on packaging method, shipment plan, recurring batch consistency, and custom markings so buyers can move from technical review to quotation faster.
What buyers usually confirm before ordering
- Whether Deep pleated HEPA Filter is used as a pre-filter, final filter, gas-phase stage, or replacement component
- Required dimensions, header or frame style, gasket location, and installation orientation
- Expected dust load, gas load, temperature, humidity, and maintenance cycle for the actual application
- Need for OEM branding, export carton details, pallet rules, and delivery schedule by project batch
Compare nearby Hepa Filters models
Trusted partners
We have collaborated with many well-known enterprises, contributing to their success and establishing a strong reputation as a trusted partner in the industry.
Quick buying checklist
Keep the request clear and simple. A short, accurate brief helps us match the right Hepa Filters option faster.
This page is often used for HVAC, cleanroom, laboratory, process air, and equipment protection projects. The goal is simple: match the filter to the real duty, the real size, and the real service target before production starts.
Most buyers first compare air volume, filtration level, frame style, seal position, and service interval. That step helps remove unsuitable options early and makes technical review easier for both engineers and purchasing teams.
- Confirm the working condition first
- Match the size and filter class to the system
- Check whether the job needs standard or custom dimensions
- Review pressure drop and replacement cycle
- Check frame strength, media type, and seal position
- Confirm whether the project needs washable or disposable media
- Note any temperature, humidity, or corrosion exposure
- Share quantity, shipping country, and label request
- Send a drawing or replacement photo when possible
- Ask for lead time, packing, and OEM details in one message
- Tell us if the filter must match an old sample
- Note any storage, pallet, or carton requirement
- Include the final delivery schedule if the order is phased
- Point out any approval or documentation requirement in advance
If the system already has an installed filter, an old label photo or front-and-side picture is usually enough to speed up checking. That small step helps reduce sizing mistakes, avoids unnecessary back-and-forth, and keeps replacement planning easier for both maintenance teams and purchasing teams.
For retrofit work, it is also helpful to confirm whether the housing, holding frame, or gasket seat has changed over time. A filter that looks similar on paper can still create sealing or fit issues in the field, so clear site information usually saves time during production, delivery, and installation.
