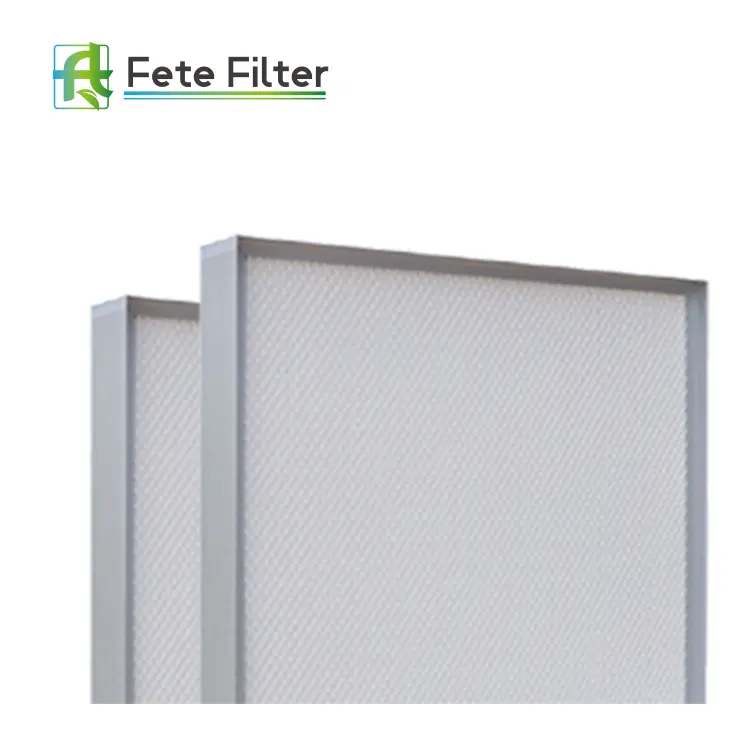

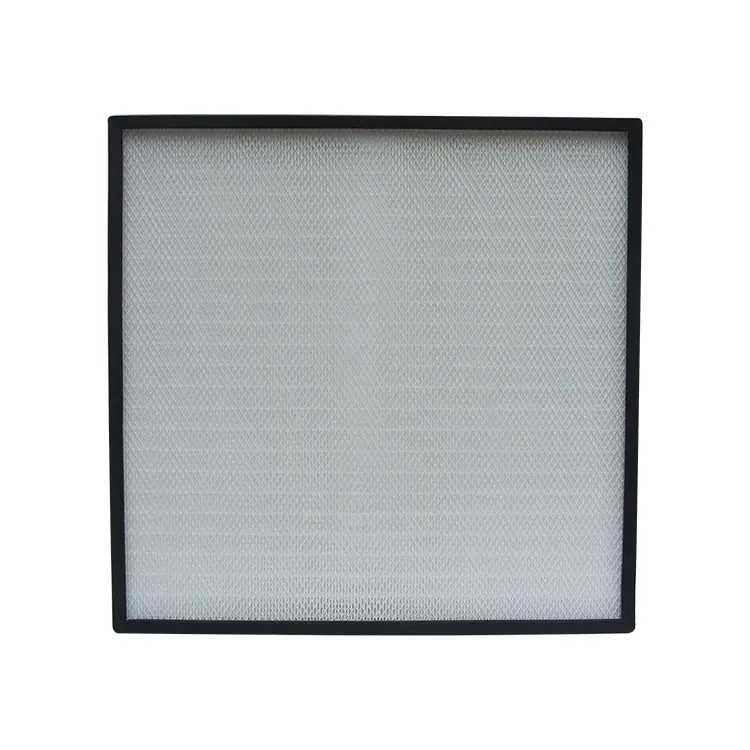

Knife-edge Mini-pleat Hepa Filter

Efficiency: H13 / H14 / U15 / U16 / U17
Frame: Extruded Aluminum
Material: micron fiberglass
Sealant： PU two component polyurethane
Gasket：PU foam
Separator：Hot melt bead
Max. final pressure drop: 600 Pa.
Max. temperature: 70℃
Max. humidity: 100%

Quick Quote

General Description

This product is ideal for corrosive gas environments because, unlike conventional glass fiber media, no boron is generated by hydrofluoric acid reacting with the filter components. All PTFE filters are Silica scan tested in our factories. Custom sizes are available.

Feature

Low resistance
High dust holding

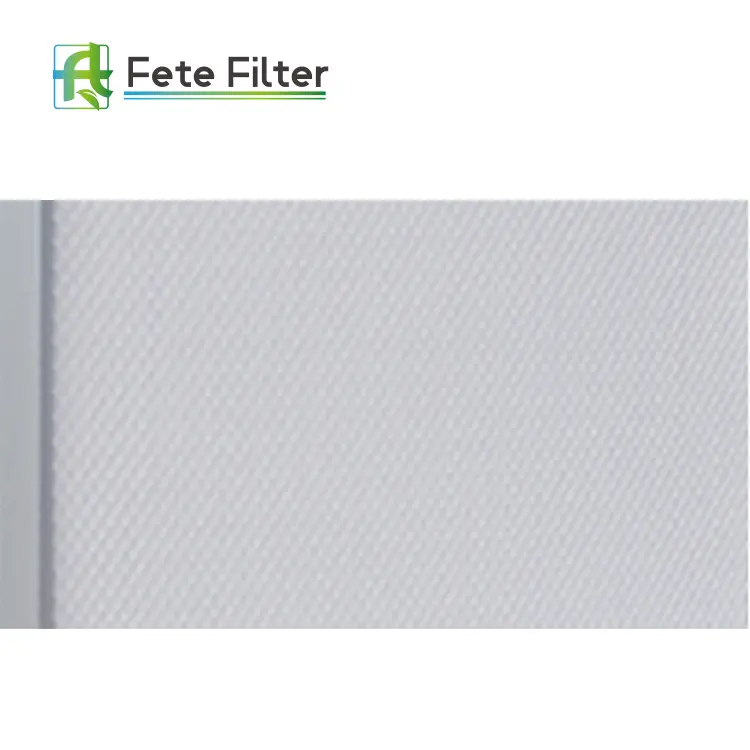

Double protection net to protect glass iber media
Special sealing adhesive

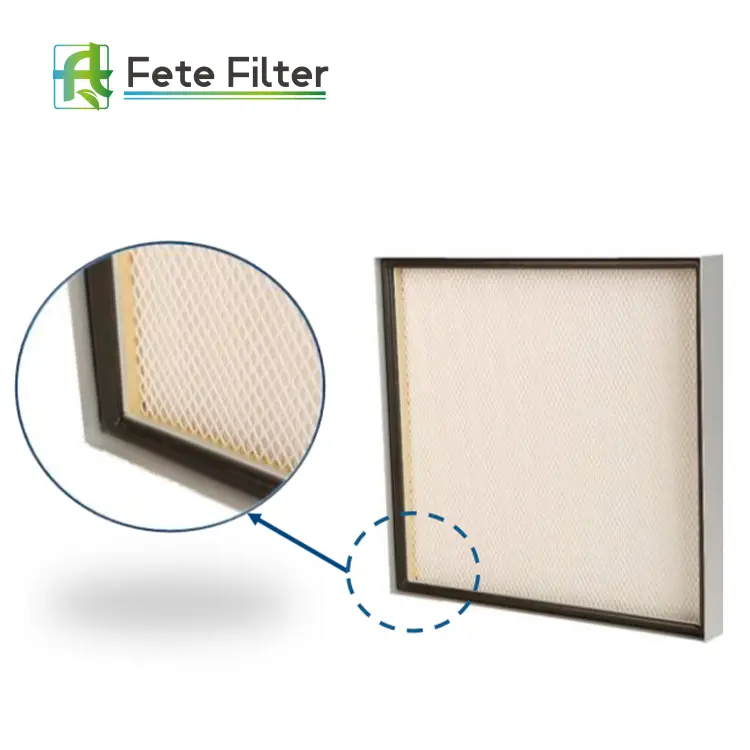

20mm knife-edge at outlet side

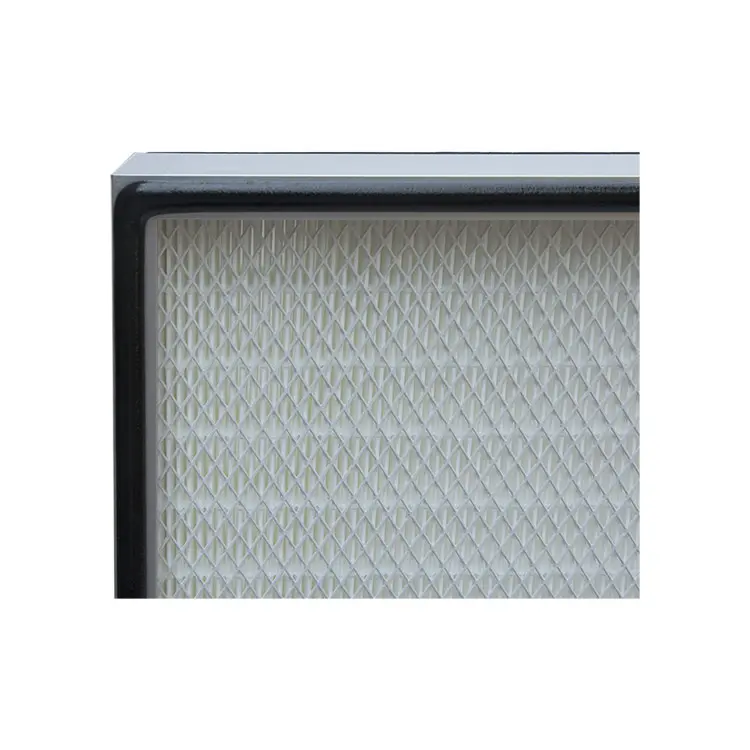

Glass fiber media and separated by hot melt bead

Applications

Pharmaceutical factory, biological factory, food processing factory other places require strict air quality control.

Technology Parameters

Model No. Dimension (mm) (HxW×D) Rated Air Flow(m³/h)/ initial resistance(Pa) Filter area (㎡) Rated wind speed (m/s) Efficiency (EN1822)
KEMP-001 320*320*110 400/175 4.0 1.09 H13
KEMP-002 305*610*110 690/175 7.1 1.03 H13
KEMP-003 484*484*110 880/175 9.1 1.04 H13
KEMP-004 305*915*110 1020/175 10.5 1.02 H13
KEMP-005 570*570*110 1220/175 12.6 1.04 H13
KEMP-006 610*610*110 1400/175 14.4 1.05 H13
KEMP-007 484*968*110 1730175.0 17.8 1.03 H13
KEMP-008 610*915*110 2070/175 21.3 1.03 H13
KEMP-009 762*762*110 2170/175 22.4 1.04 H13
KEMP-010 570*1170*110 2460/175 25.3 1.03 H13
KEMP-011 600*1200*110 2660/175 27.4 1.03 H13
KEMP-012 610*1220*110 2750/175 28.3 1.03 H13
