Disposable HEPA Filter with Hood

Efficiency: H13 / H14
Media: Micro glass fiber
Frame: Aluminum / GI / SUS
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: Hot melt bead
Optional thickness: 120 / 150 / 220mm
Max Temperature: 70℃
Max Humidity: 100%

Quick Quote

General Description

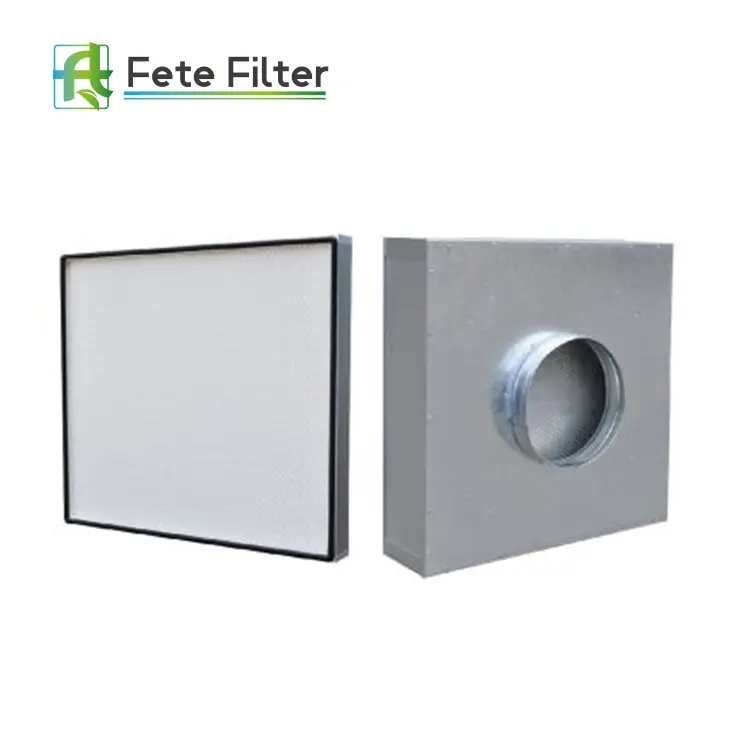

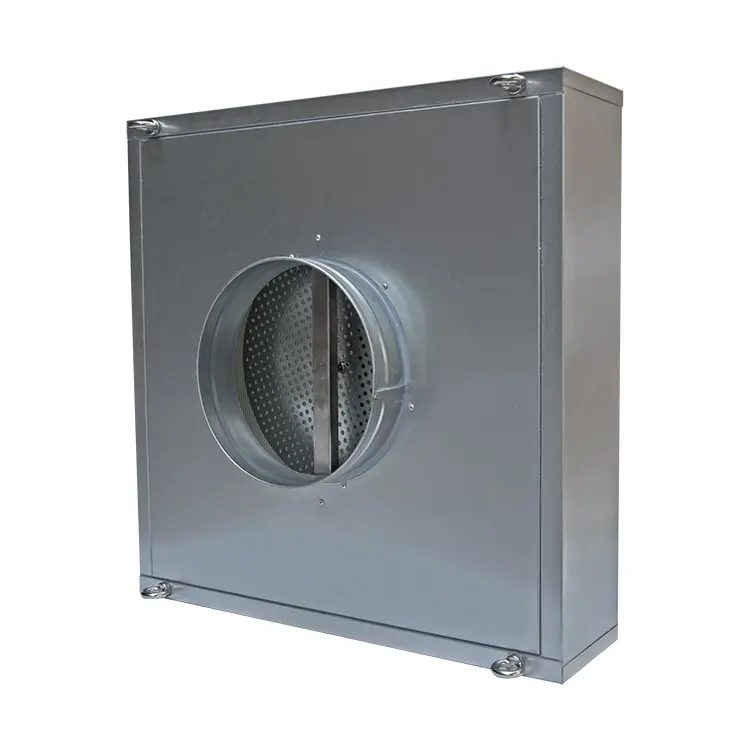

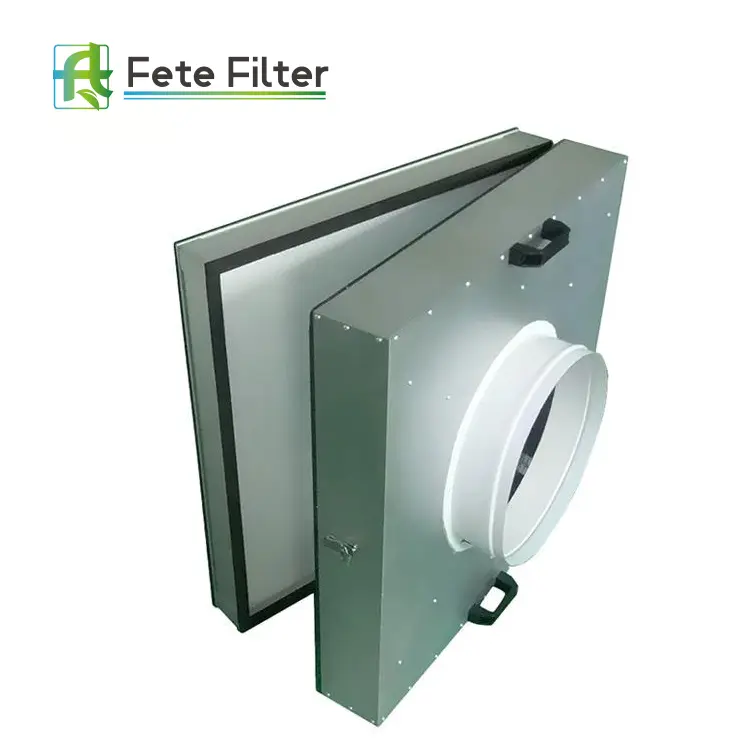

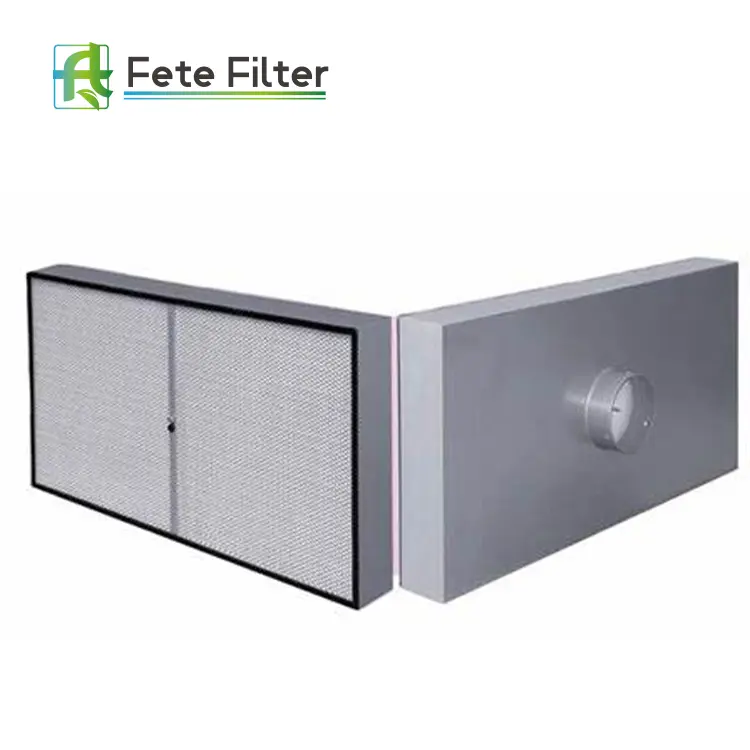

Fete Disposable HEPA filter with Hood is terminal filter for a variety of filtration systems, closed structure to prevent internal voids and leaks. Anodized aluminum casing quality, light weight, can full stick PEF cotton insulation. Include air input duct with optional diameter Φ250, Φ30, Φ350. Each filter has been strictly tested before factory.

Feature

1.Good ventilation performance
2.Special sealing technology, superior softness, non-deformation
3.Light weight, easy installation and replacement
4.Integrated design, can be with insulation and lifting lugs
5.100% factory inspection

Applications

Places with high requirement of cleanliness, such as surgery, lab, pharmacy, micro-electronic, fiber optic equipment and food processing factory, etc.

Technology Parameters

Model NO. Dimension Air Flow Intital Resistance Final Resistance Media area Efficiency
HxWxD (mm) (m³/h) (pa) (pa) (m2)
FTDHF-001 610×610×120 1000.0 ≤220 400-600 11.6 H13-H14
FTDHF-002 915×610×120 1600.0 ≤220 400-600 17.6 H13-H14
FTDHF-003 1220×610×120 2000.0 ≤220 400-600 23.5 H13-H14
FTDHF-004 610×610×150 1200.0 ≤220 400-600 14.1 H13-H14
FTDHF-005 915×610×150 1900.0 ≤220 400-600 21.3 H13-H14
FTDHF-006 1220×610×150 2550.0 ≤220 400-600 28.5 H13-H14
FTDHF-007 610×610×220 1500.0 ≤220 400-600 16.4 H13-H14
FTDHF-008 915×610×220 2200.0 ≤220 400-600 24.7 H13-H14
FTDHF-009 1220×610×220 3000.0 ≤220 400-600 33.0 H13-H14
