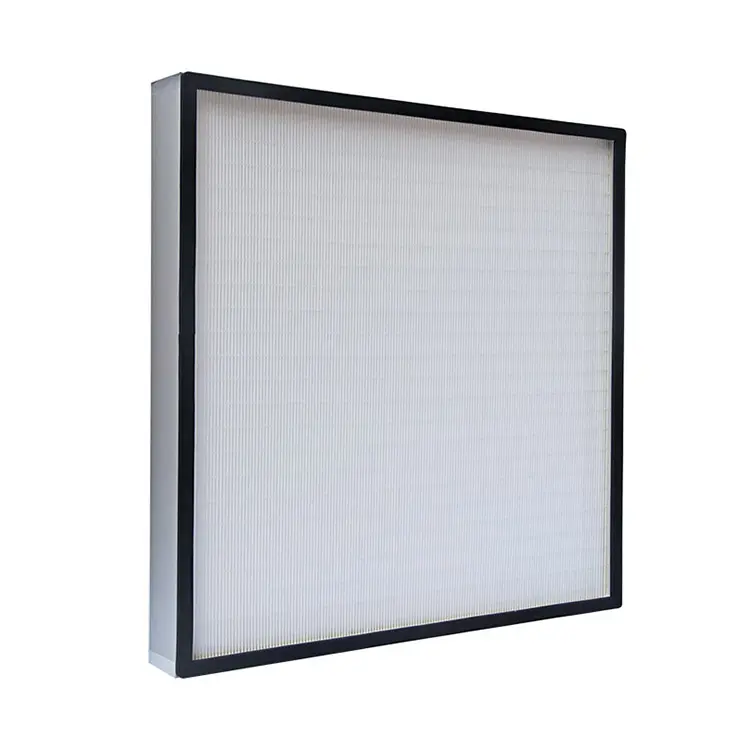

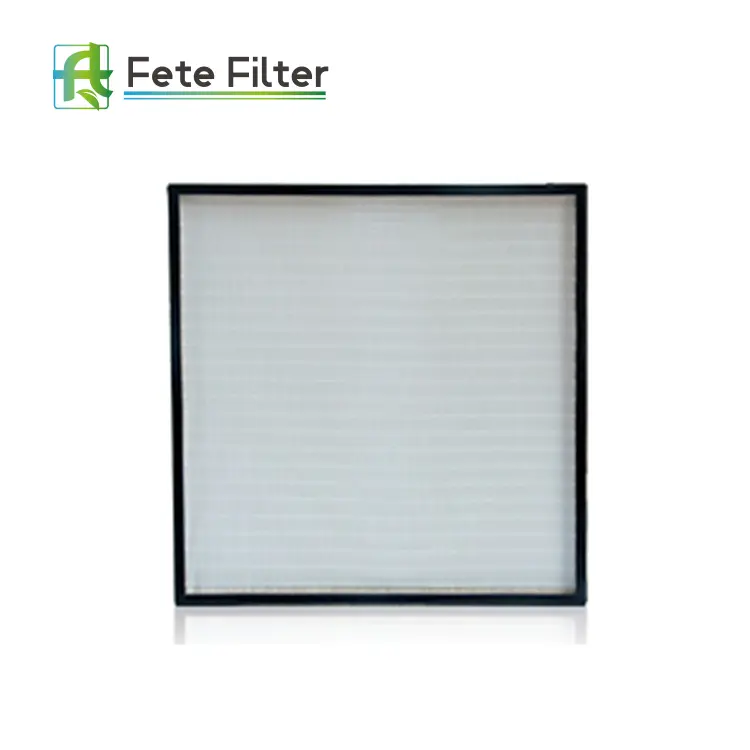

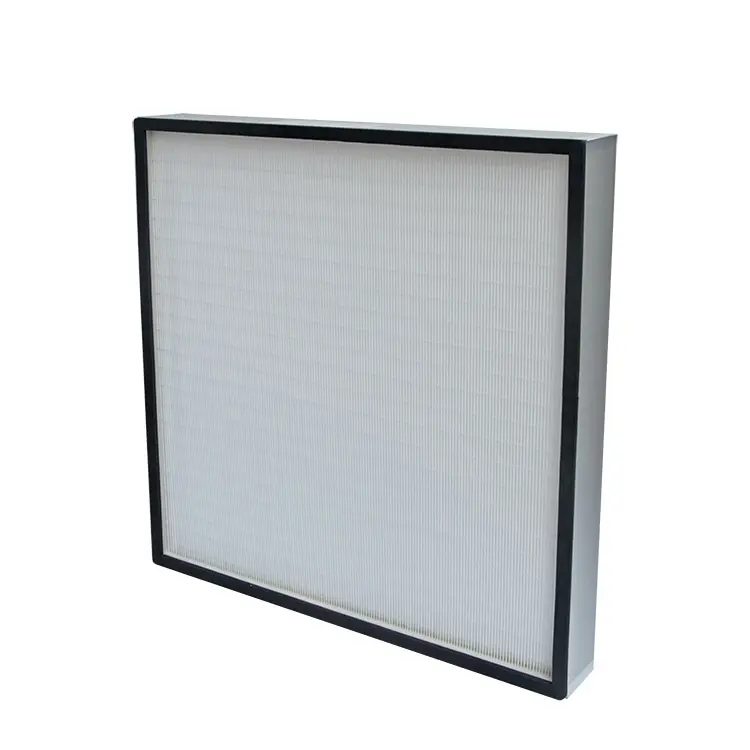

PTFE Mini-pleat Hepa Filter
Efficiency: H13 / H14 / U15 / U16 / U17

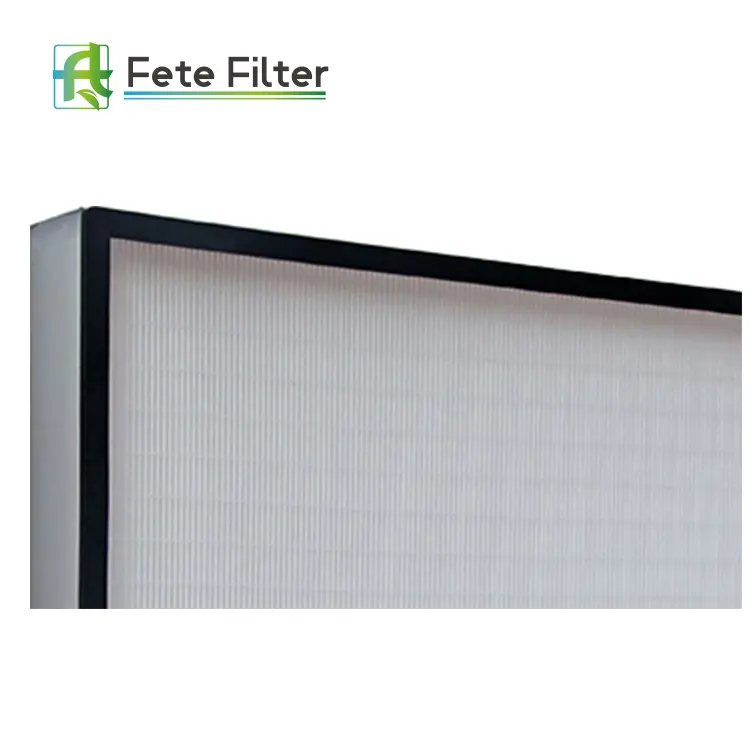

Frame: Aluminum, Galvanized, Stainless Steel

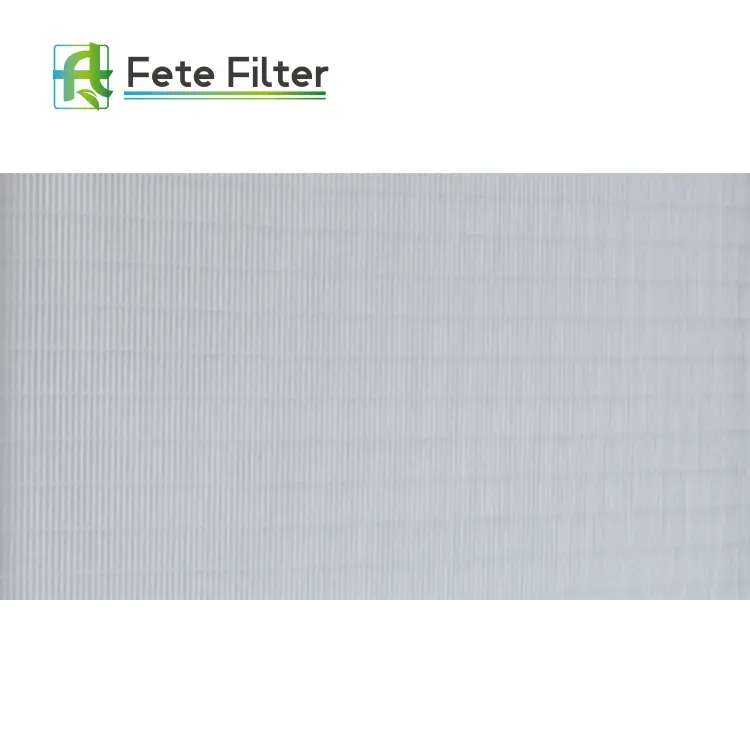

Material: PTFE fiberglass
Sealant： PU
Gasket： PU
Separator：Hot melt bead
Max. operation temperature: 70℃
Max. humidity: 100%
General Description
This product is ideal for corrosive gas environments because, unlike conventional glass fiber media, no boron is generated by hydrofluoric acid reacting with the filter components. All PTFE filters are Silica scan tested in our factories. Custom sizes are available.
Applications
Microelectronics industry (chip factory in semiconductor factory), optoelectronic industry, manufacturing industry with high cleanliness and low resistance requirements.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model No. | Dimension (mm) (HxW×D) | Rated Air Flow(m³/h)/ initial resistance(Pa) | Filter area (㎡) | Rated wind speed (m/s) | Efficiency (EN1822) |
| PTFE-001 | 610*610*50 | 600/55 | 8.11 | 0.45 | H13 |
| PTFE-002 | 570*1170*50 | 1100/55 | 14.62 | 0.45 | H13 |
| PTFE-003 | 610*610*69 | 600/45 | 10.43 | 0.45 | H13 |
| PTFE-004 | 570*1170*69 | 1100/45 | 18.79 | 0.45 | H13 |
| PTFE-005 | 610*610*80 | 600/35 | 11.15 | 0.45 | H13 |
| PTFE-006 | 570*1170*80 | 1100/35 | 20.1 | 0.45 | H13 |
| PTFE-007 | 610*610*50 | 600/65 | 8.11 | 0.45 | H14 |
| PTFE-008 | 570*1170*50 | 1100/65 | 14.62 | 0.45 | H14 |
| PTFE-009 | 610*610*69 | 600/55 | 10.43 | 0.45 | H14 |
| PTFE-010 | 570*1170*69 | 1100/55 | 18.79 | 0.45 | H14 |
| PTFE-011 | 610*610*80 | 600/45 | 11.15 | 0.45 | H14 |
| PTFE-012 | 570*1170*80 | 1100/45 | 20.1 | 0.45 | H14 |
| PTFE-013 | 610*610*50 | 600/85 | 8.11 | 0.45 | U15 |
| PTFE-014 | 570*1170*50 | 1100/85 | 14.62 | 0.45 | U15 |
| PTFE-015 | 610*610*69 | 600/75 | 10.43 | 0.45 | U15 |
| PTFE-016 | 570*1170*69 | 1100/75 | 18.79 | 0.45 | U15 |
| PTFE-017 | 610*610*80 | 600/60 | 11.15 | 0.45 | U15 |
| PTFE-018 | 570*1170*80 | 1100/60 | 20.11 | 0.45 | U15 |
| Brand Name: | Fete Filter | Certification: | ISO9001,CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 3 years | Customized design: | available |
