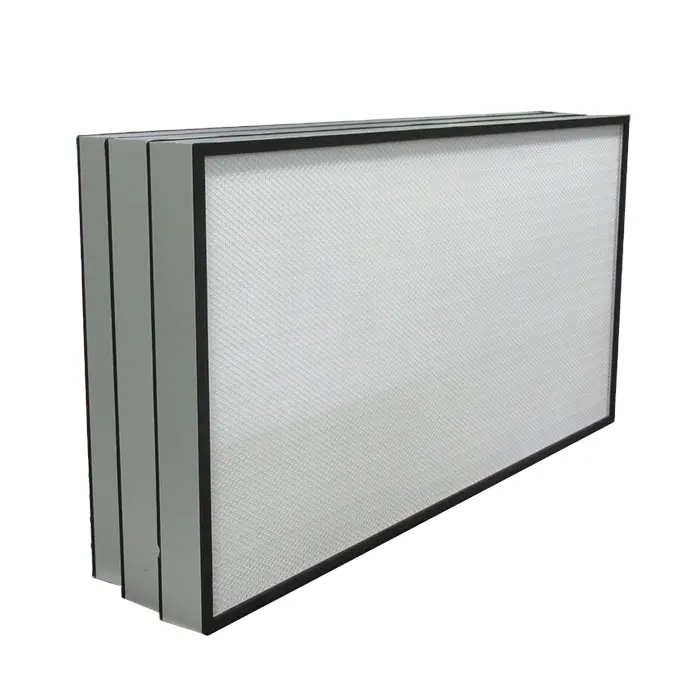

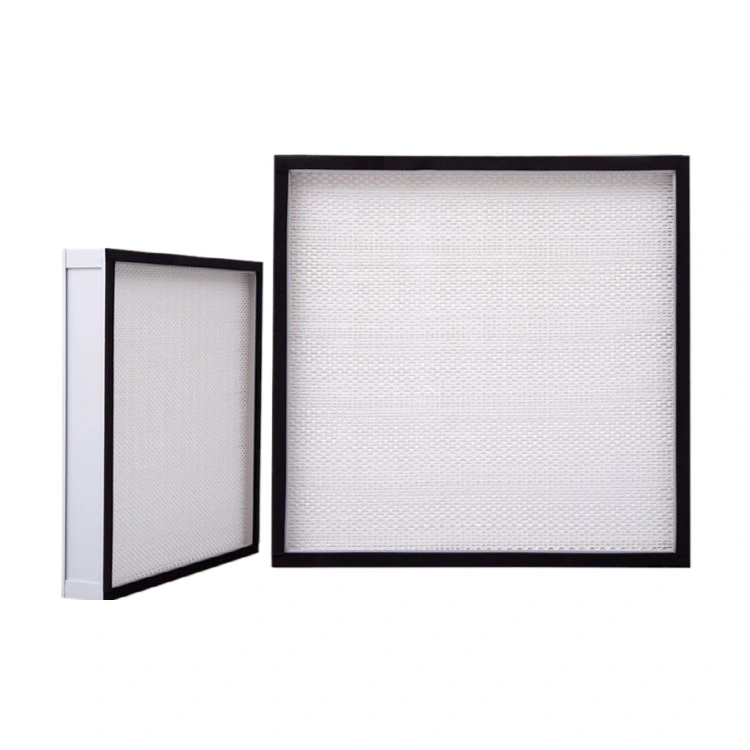

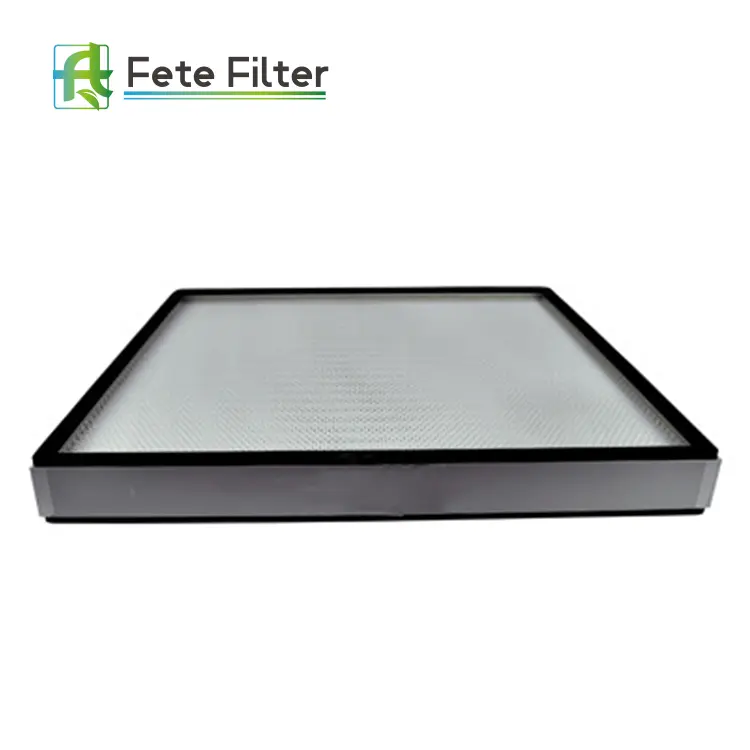

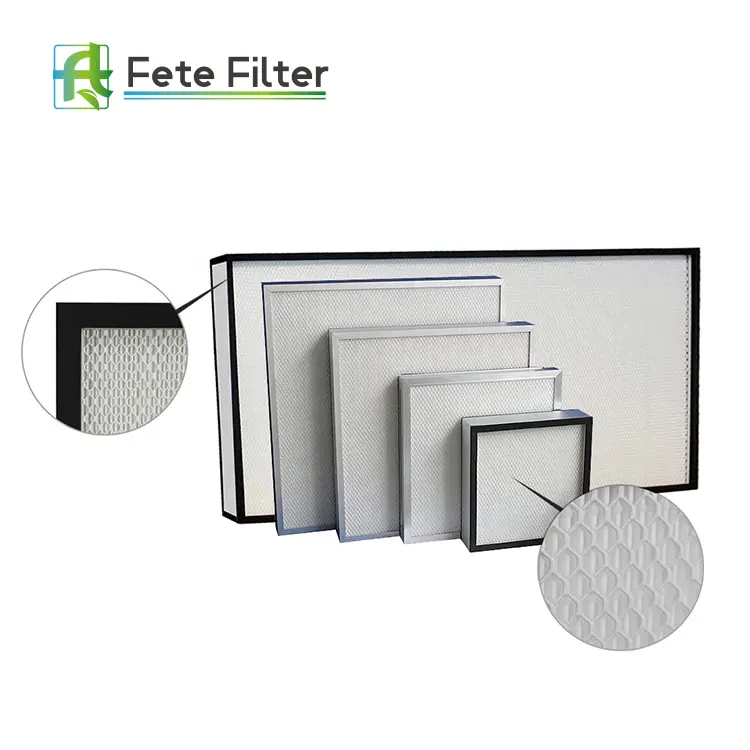

Mini-pleat Hepa Filter
Efficiency: H13 (99.95%@0.3um, EN1822)
H14 (99.995%@0.3um, EN1822)
U15 (99.9995%@0.12um, EN1822)
U16 (99.99995%@0.12um, EN1822)
U17 (99.999995%@0.12um, EN1822)

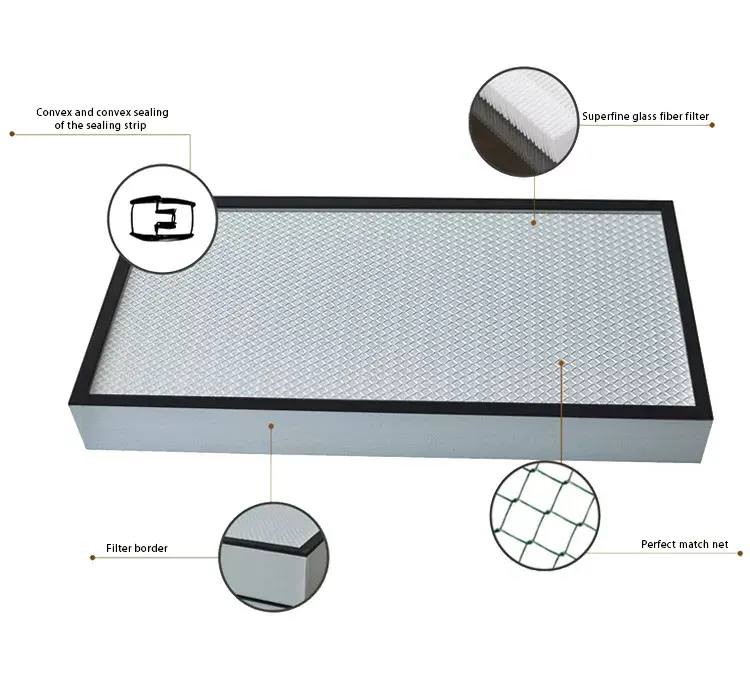

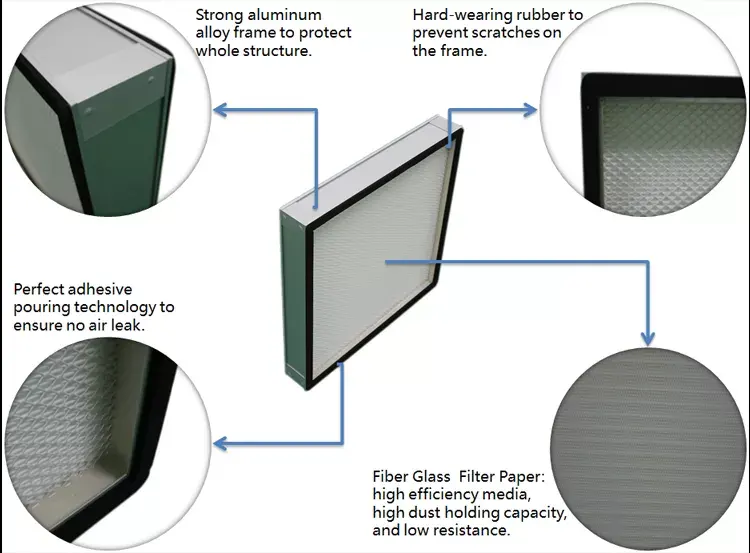

Frame: Aluminum/Galvanized/SUS304
Media: Micro fiberglass
Sealant: PU two-component polyurethane glue
Gasket: PU
Separator: Hot melt bead
Operating Temperature: 70℃
Max. Humidity: 100%
General Description
Fete Mini-pleated Filters designed to take out the finest of particles. The filter uses a special media intended to capture both small and large particles with minimum airflow restriction. It comes with a test hole for leak test and scan test before delivery. This is to ensure the perfectness of each filter and to make sure they pass the stringent on-site performance test in pharmaceutical industries.
Feature
1.Non-separator design, low operating cost
2.Wide application area, firm structure, space-saving
3.Ultra thin design, space-saving
Applications
1. HVAC ventilation system of clean room, commercial building and industry
2. HVAC ventilation system with high relative humidity.
3. HVAC system.
4. HVAC ventilation system with limited space.
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power | Temperature |
|---|---|---|---|---|---|
| Model No. | Dimension (mm) (HxW×D) | Rated Air Flow(m³/h)/ initial resistance(Pa) | Filter area (㎡) | Rated wind speed (m/s) | Efficiency (EN1822) |
| HUMP-001 | 610*610*50 | 600/55 | 8.11 | 0.45 | H13 |
| HUMP-002 | 570*1170*50 | 1100/55 | 14.62 | 0.45 | H13 |
| HUMP-003 | 610~610*69 | 600/45 | 10.43 | 0.45 | H13 |
| HUMP-004 | 570*1170*69 | 1100/45 | 18.79 | 0.45 | H13 |
| HUMP-005 | 610*610*80 | 600/35 | 11.15 | 0.45 | H13 |
| HUMP-006 | 570*1170*80 | 1100/35 | 20.1 | 0.45 | H13 |
| HUMP-007 | 610*610*50 | 600/65 | 8.11 | 0.45 | H14 |
| HUMP-008 | 570*1170*50 | 1100/65 | 14.62 | 0.45 | H14 |
| HUMP-009 | 610*610*69 | 600/55 | 10.43 | 0.45 | H14 |
| HUMP-010 | 570*1170*69 | 1100/55 | 18.79 | 0.45 | H14 |
| HUMP-011 | 610*610*80 | 600/45 1100/45 6o0/85 | 11.15 | 0.45 | H14 |
| HUMP-012 | 570*1170*80 | 1100/45 | 20.1 | 0.45 | H14 |
| HUMP-013 | 610*610*50 | 600/85 | 8.11 | 0.45 | U15 |
| HUMP-014 | 570*1170*50 | 1100/85 | 14.62 | 0.45 | U15 |
| HUMP-015 | 610*610*69 | 600/75 | 10.43 | 0.45 | U15 |
| HUMP-016 | 570*1170*69 | 1100/775 | 18.79 | 0.45 | U15 |
| HUMP-017 | 610*610*80 | 600/60 | 11.15 | 0.45 | U15 |
| HUMP-018 | 570*1170*80 | 1100/60 | 20.11 | 0.45 | U15 |
| Brand Name: | Fete Filter | Product Category: | Hepa Filters |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Mini-pleat Hepa Filter project with the right specs
Fete Filter supplies Mini-pleat Hepa Filter for cleanroom, HVAC and industrial air filtration projects. Browse Hepa Filters options, request...
Confirm filter class, referenced test method, rated airflow, pressure drop, dimensions and sealing interface before selecting this HEPA filter.
Check these technical points
- Required filter class and referenced test method
- Rated airflow and initial pressure drop
- Face dimensions, depth, frame material and media
- Gasket, gel or knife-edge sealing interface
Send these quote details
- Required class, test method and quantity
- Length, width, depth and airflow per filter
- Housing interface, gasket position or gel seal details
- Individual test report or other documentation requirements
Selection guidance for Mini-pleat Hepa Filter
Confirm filter class, referenced test method, rated airflow, pressure drop, dimensions and sealing interface before selecting this HEPA filter.
Compare media pack construction, frame material, depth and gasket, gel or knife-edge connection with the existing housing and operating airflow.
Send the existing label or drawing, required class, airflow, quantity and any individual test-report requirement for technical review.
What buyers usually confirm before ordering
- Required filter class and referenced test method
- Rated airflow and initial pressure drop
- Face dimensions, depth, frame material and media
- Gasket, gel or knife-edge sealing interface
