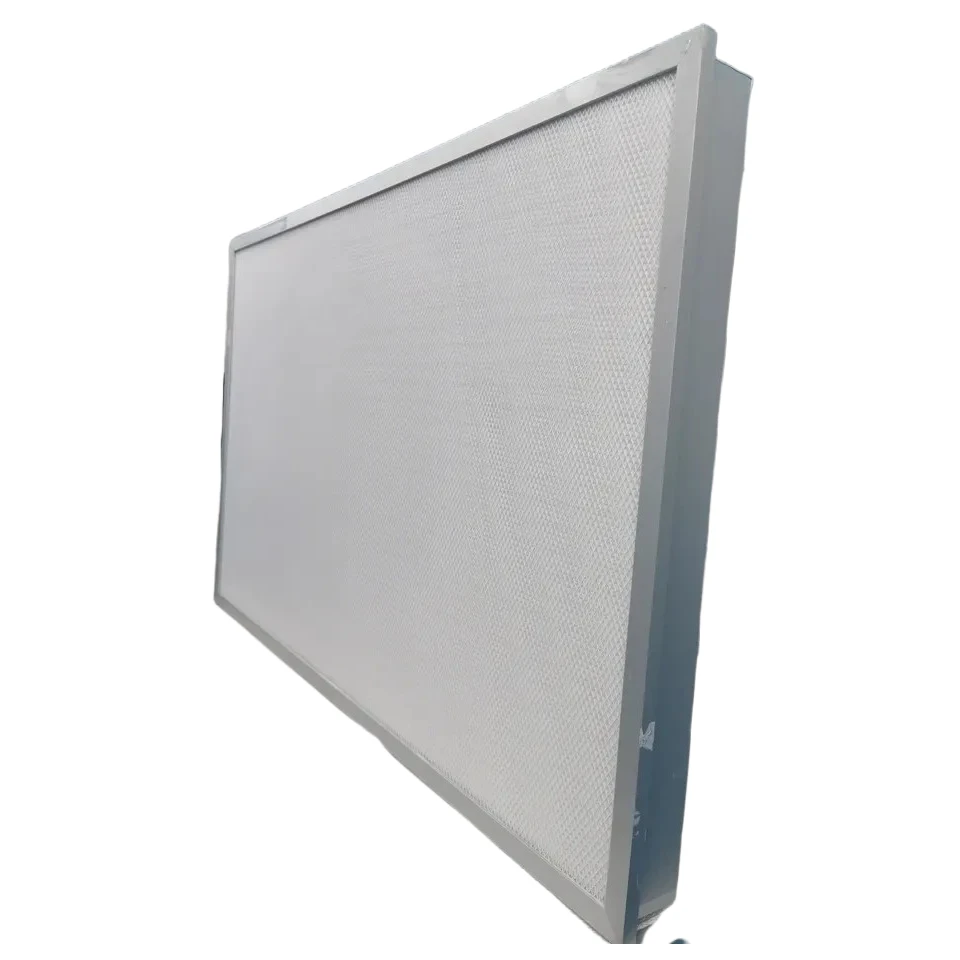

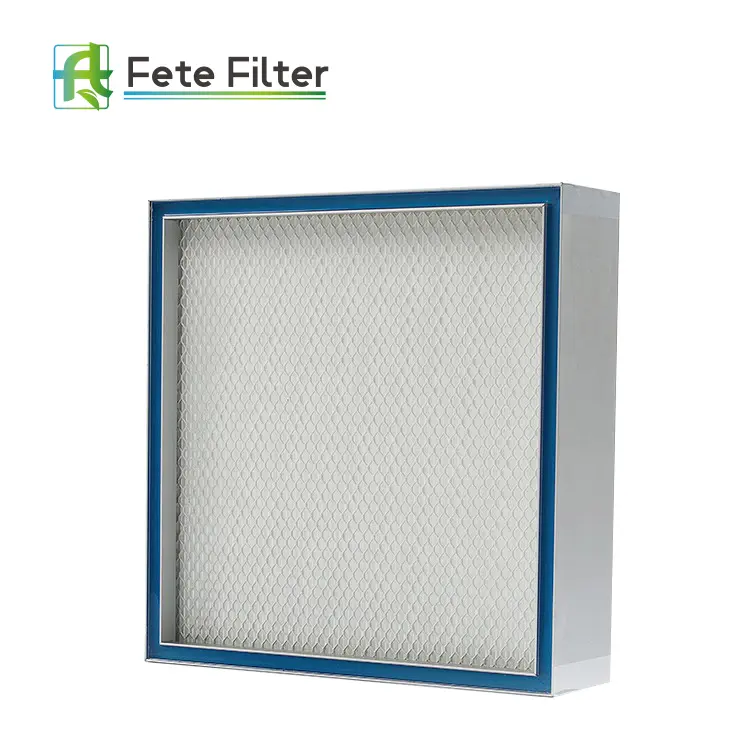

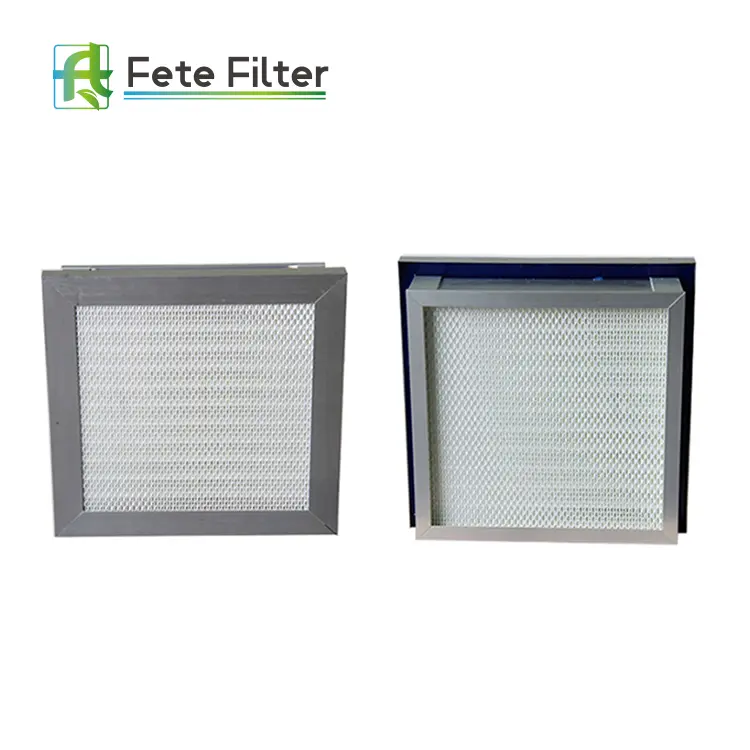

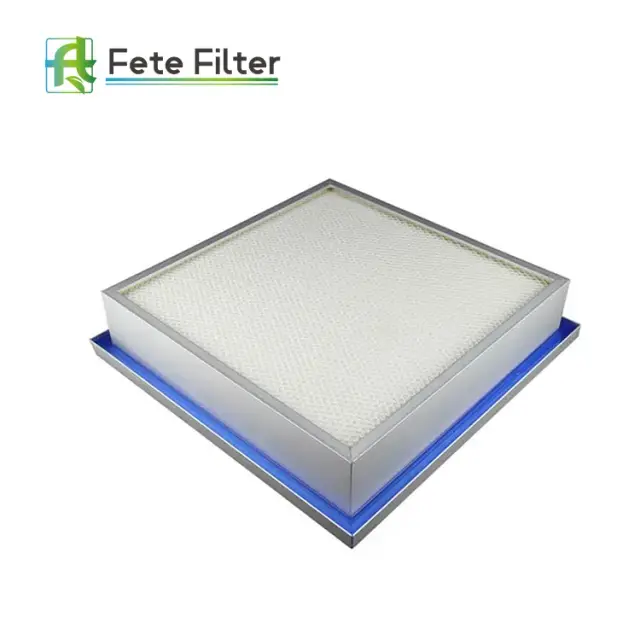

Gel-type Mini-pleat Hepa Filter

Efficiency: H13 / H14 / U15 / U16 / U17
Media: Micro glass fiber
Frame: Extruded aluminum
Sealant: PU
Gasket: Gel jelly glue
Separator: Hot melt bead
Optional thickness: 69 / 81 / 90 / 93 / 104 / 117mm
Max Temperature: 70℃
Max Humidity: 100%

General Description

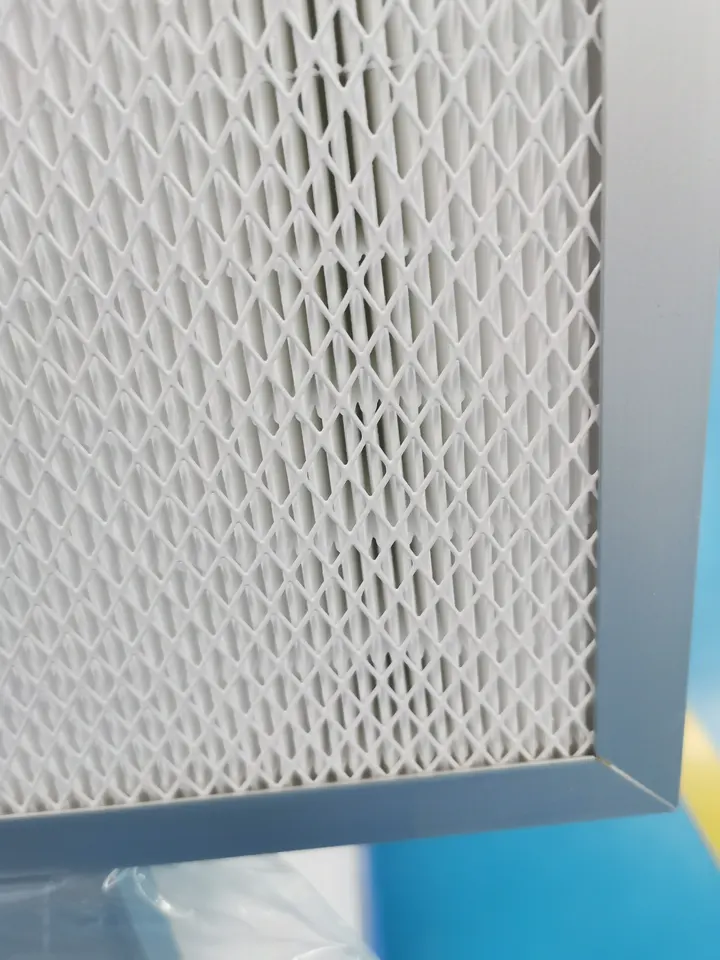

Fete's Gel-type Mini-pleat Filter (HEPA /ULPA) is an advanced version of conventional Mini-pleat filters in which gasket is replaced by Silica gel which ensures 0% leakage from the sides/flanges. Made by very fine high-efficiency micro fiber glass paper media interspaced with hot melt pleating & enclosed in Al. Extruded sections.

Feature

1、Non-separator design, high quality fiberglass filter media, lower operational cost
2、Compact structure, space-saving
3、High dust loading capacity, long service life

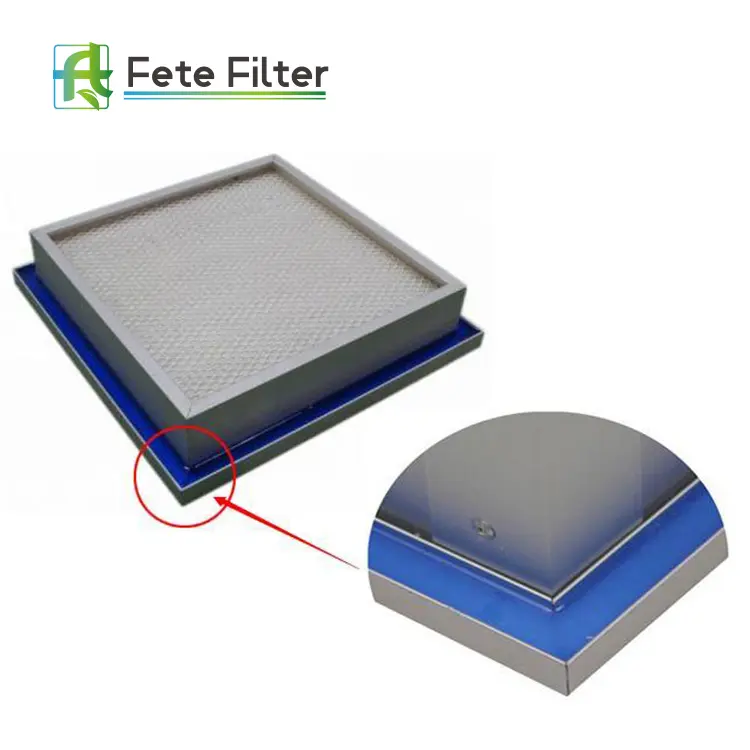

4、Gel-sealed type, better sealing performance

Applications

Fete Gel-type Mini-pleat Filter (HEPA /ULPA) has a better sealed structural design than other conventional filters. It comes with a test hole for leak test and scan test before delivery. This is to ensure the perfectness of each filter and to make sure they pass the stringent on-site performance test.

Technology Parameters

Model No. Dimension (mm) (HxW×D) Rated Air Flow(m³/h)/ initial resistance(Pa) Filter area (㎡) Rated wind speed (m/s) Efficiency (EN1822) Tank direction (Side/Top)
GTMP-001 346*346*69 300/190 2.8 0.75 H14 Side
GTMP-002 510*510*69 650/190 6.32 10.00 0.75 H14 Side
GTMP-003 636*636*69 1000/190 10.0 0.75 H14 Side
GTMP-004 636*941*69 1500/190 14.84 0.75 H14 Side
GTMP-005 596*1196*69 1800/190 17.63 0.75 H14 Side
GTMP-006 636*1246*69 2000/190 19.68 0.75 H14 Side
GTMP-007 346*346*90 500/220 4.4 1.36 H14 Side
GTMP-008 510*510*90 1000/220 9.97 1.19 H14 Side
GTMP-009 636*636*90 1500/220 15.77 1.12 H14 Side
GTMP-010 636*941*90 2000/220 23.4 1.0 H14 Side
GTMP-011 596*1196*90 2500/220 27.8 1.04 H14 Side
GTMP-012 636*1246*90 3000/220 31.04 1.12 H14 Side
GTMP-013 320*320*95 350/220 3.19 0.95 H14 Top
GTMP-014 484*484*95 700/220 7.24 0.83 H14 Top
GTMP-015 610*610*95 1100/220 11.45 0.82 H14 Top
GTMP-016 610*1220*95 2200/220 22.55 0.82 H14 Top
GTMP-017 346*346*69 300/220 2.8 0.75 U15 Side
GTMP-018 510*51069 650/220 6.32 0.75 U15 Side
GTMP-019 636*636*69 1000/220 10.0 0.75 U15 Side
GTMP-020 636*941*69 1500/220 14.84 0.75 U15 Side
GTMP-021 596*1196*69 1800/220 17.63 0.75 U15 Side
GTMP-022 636*1246*69 2000/220 19.68 0.75 U15 Side
GTMP-023 346*346*90 500/250 4.4 1.36 U15 Side
GTMP-024 510*510*90 1000/250 9.97 1.19 U15 Side
GTMP-025 636*636*90 1500/250 15.77 1.12 U15 Side
GTMP-026 636*941*90 2000/250 23.4 1.0 U15 Side
GTMP-027 596*1196*90 2500/250 27.8 1.04 U15 Side
GTMP-028 636*1246*90 3000/250 31.04 1.12 U15 Side
GTMP-029 320*320*95 350/250 3.19 0.95 U15 Top
GTMP-030 484484*95 700/250 7.24 0.83 U15 Top
GTMP-031 610*610*95 1100/250 11.45 0.82 U15 Top
GTMP-032 610*1220*95 2200/250 22.55 0.82 U15 Top
