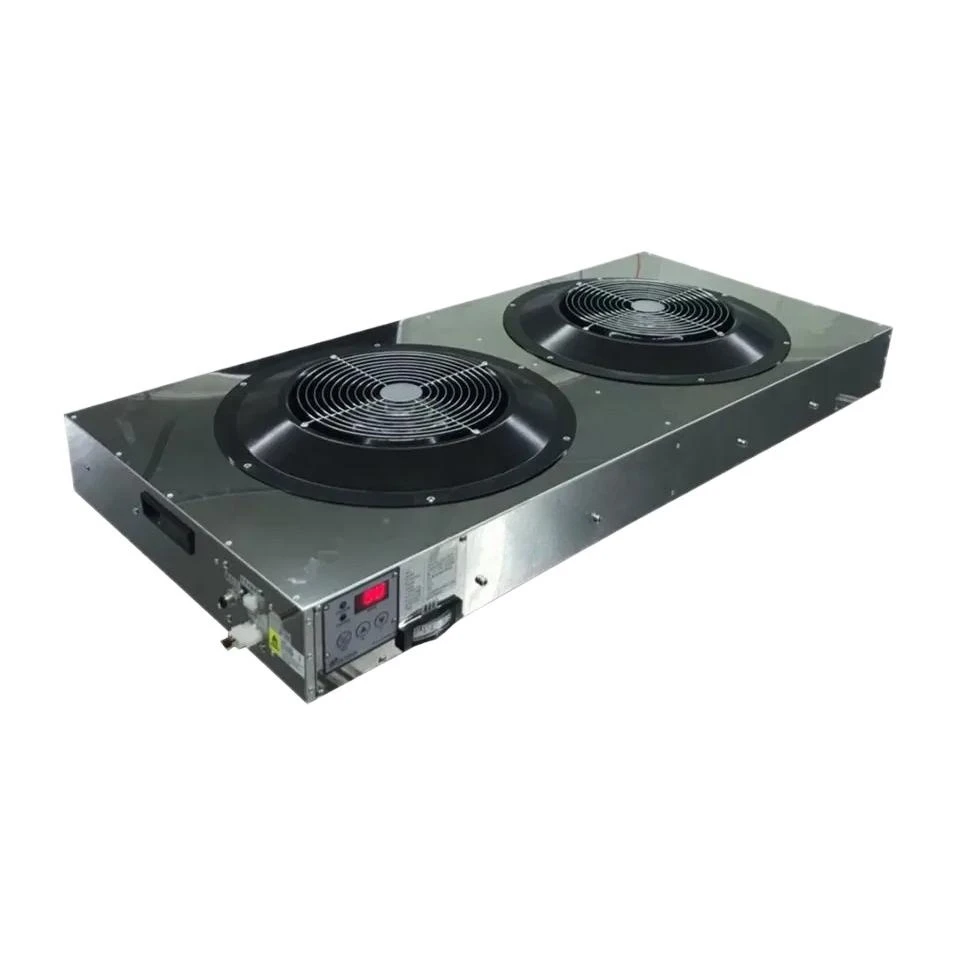

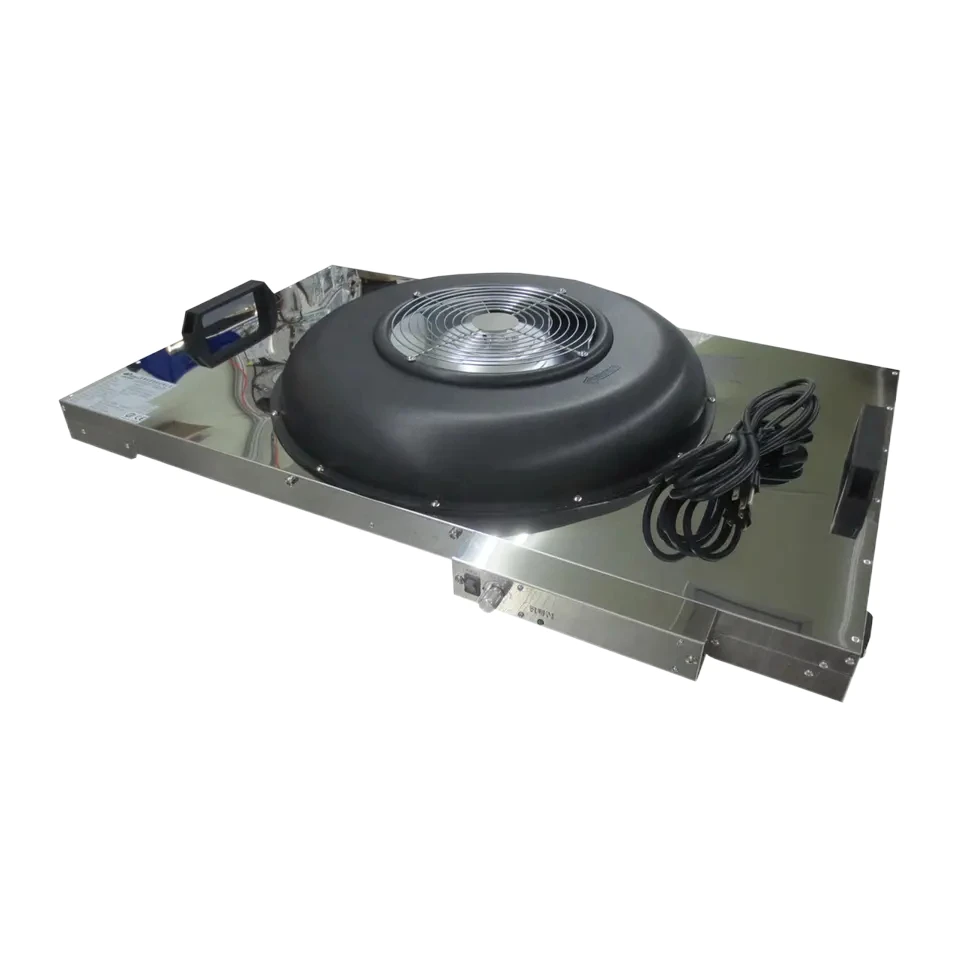

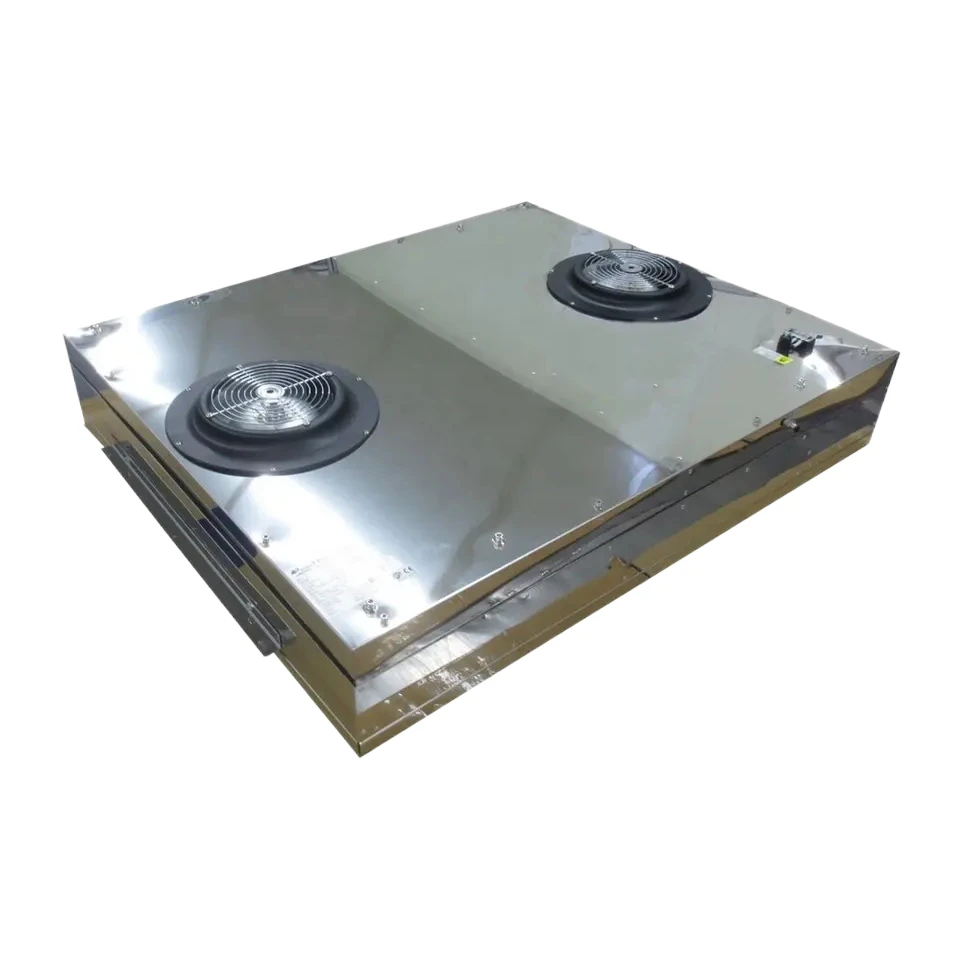

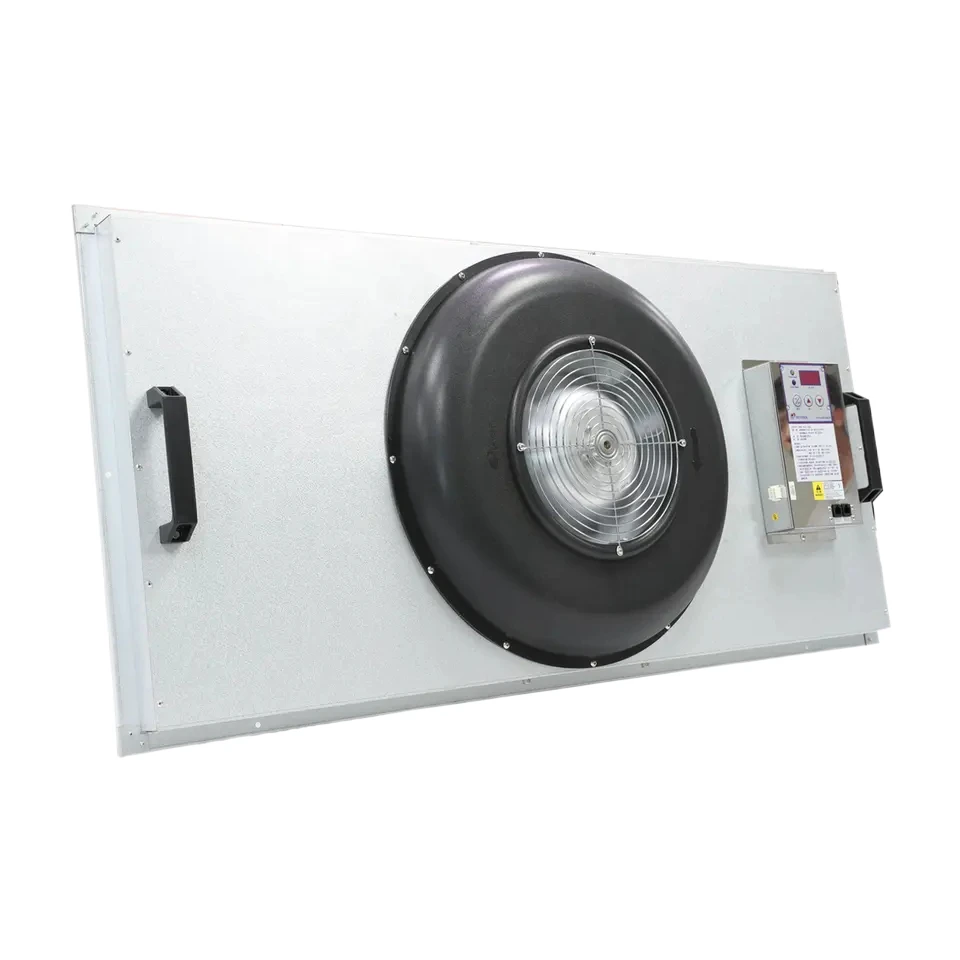

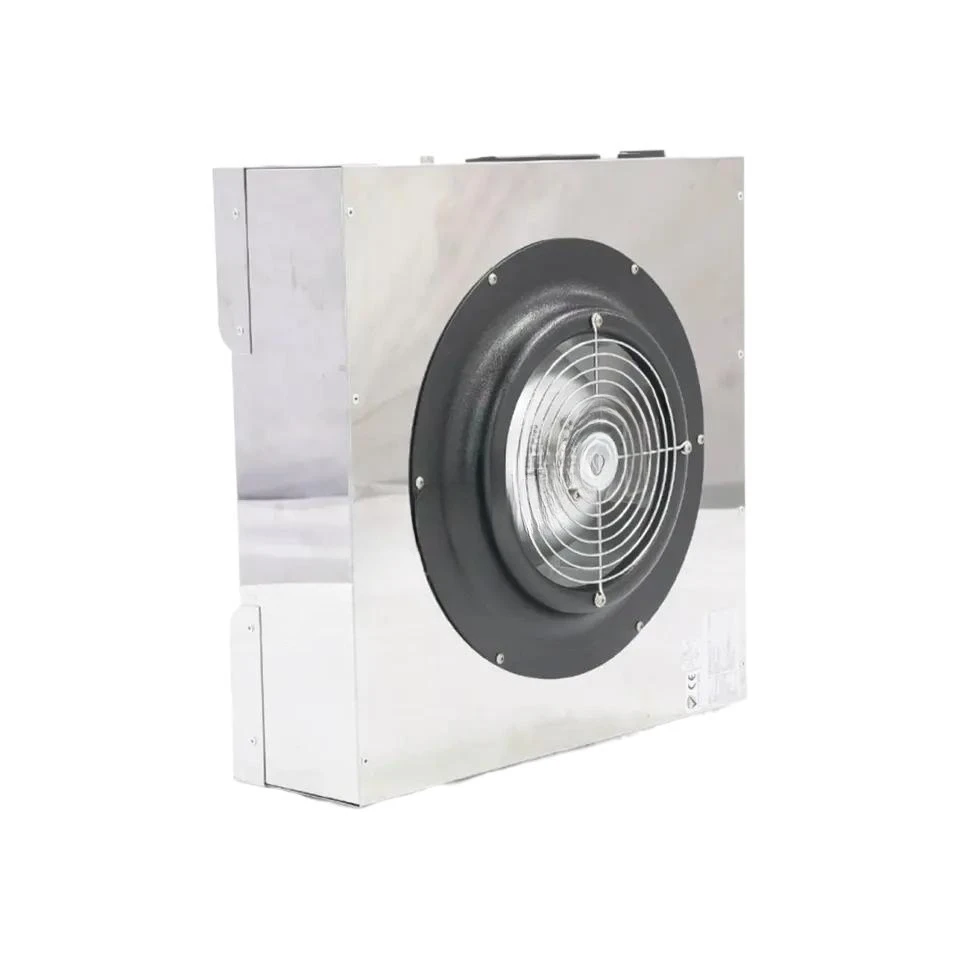

Super Thin FFU
Cabinet Material：Galvanized/ Aluminum/ Stainless Steel.
Dimension(L*W*H mm)：2x2 or 2x4 or 4x4 or customized.
HEPA Efficiency: 99.99%@0.3um~99.9995%@0.15um
Air velocity (m/s): 0.35-0.55
Noise dB ≤55
General Description
Fete Super Thin Fan Filter Unit (FFU) is a type of unit used for filtering laminar air and supplying clean air. Fete FFU can be used stand alone or installed modularly. It is 100mm thinner than the Genaral FFU. The material of cabinet is stainless steel, Galvanized steel with aluminum painting, Cold rolled steel with epoxy powder and so on. It is lighter, corrosion-resistance, rust-resistance and beautiful.
Fete FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly. The purpose is to supply purified air to different levels of clean room.
Feature
1. Overheating protection Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .
2. The average air speed increase to 25% Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air speed increase to 25%.
3. Life-long span It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.
4. Space-saving Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.
Applications
semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places. Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment. Technology Parameters
Technology Parameters
| Model | Size | Air flow | Initial resistance | Rated power |
|---|---|---|---|---|
| Model | FST-1 | FST-2 | FST-3 | FST-4 |
| Dimension(mm)L*W*H | 575*875*275 | 920*615*275 | 575*1175*275 | 615*1225*275 |
| Cabinet material | Galvanized / aluminum / stainless steel | |||
| Rated air flow(m3/h) | 800-900 | 1000-1100 | 1100-1200 | 1600-1700 |
| Air velocity (m/s) | 0.35~0.55 | |||
| Noise dB(A) | <55dB | |||
| Vibration(mm/s) | 0.2-0.7 | |||
| Filter efficiency | 99.99% 〜99.9995%<0.3um) | |||
| Power supply | 220V,50HZ/ 110V, 60HZ | |||
| HEPA filter size(mm) | 570*870*69 | 915*610*69 | 570*1170*69 | 610*1220*69 |
| HEPA Efficiecncy | 99.99% 〜99.9995%<0.3um) | |||
| HEPA filter frame | Aluminum | |||
| HEPA filter Initial pressure drop | 110Pa@0.45m/s±15% |
| Brand Name: | Fete Filter | Product Category: | Fan Filter Units |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty Terms: | Confirmed for the selected model in the quotation | Custom Options: | Discuss dimensions and configuration with our team |
What information helps you quote this product?
Ans. Please send the application, required dimensions, quantity, destination and any drawing, existing label or site photo. We will use those details to check the requested configuration.
How is the delivery time confirmed?
Ans. Lead time depends on the final specification, quantity, documentation and production schedule. It is confirmed in the formal quotation after the configuration is reviewed.
What are your primary product offerings?
Ans. Fete Filter focuses on fan filter units, HEPA filters, pocket filters, other HVAC air filters, filter media, pass boxes and air showers for cleanroom and controlled-environment projects.
How can I get in touch with you?
Ans. You can use the contact page, email or WhatsApp links on this website. Include the product name and project details so the request can be routed correctly.
What are your payment terms?
Ans. Payment terms are confirmed in the formal quotation for the selected product, order value and destination.
Feel free to Ask questions
Plan your Super Thin FFU project with the right specs
Fete Filter supplies Super Thin FFU for cleanroom, HVAC and industrial air filtration projects. Browse Fan Filter Units options, request...
Confirm the required airflow, external static pressure, ceiling opening, power supply and control method before selecting this FFU.
Check these technical points
- Nominal airflow and available external static pressure
- Housing size, ceiling grid and installation access
- Power supply, motor type, sound target and speed range
- Local, group or building-management control interface
Send these quote details
- Room dimensions, ceiling grid and target airflow or air changes
- FFU quantity, module size and selected filter grade
- Voltage, frequency and control method
- Destination, delivery sequence and packaging limits
Selection guidance for Super Thin FFU
Confirm the required airflow, external static pressure, ceiling opening, power supply and control method before selecting this FFU.
Compare this model with other FFUs at the intended operating point, including sound, electrical input, housing depth and the selected HEPA or ULPA filter interface.
For project sizing, send the room dimensions, target airflow or air-change rate, ceiling grid, FFU quantity, voltage and preferred control method.
What buyers usually confirm before ordering
- Nominal airflow and available external static pressure
- Housing size, ceiling grid and installation access
- Power supply, motor type, sound target and speed range
- Local, group or building-management control interface
